Application
PROVIDES GENERAL OR FOCUSSED LIGHT IN A TRACK MOUNTED ALTERNATIVE TO OUR PRESTIGIOUS POLESPRING RANGE USING VARIABLE BEAM ANGLES AND LENSES.
Vorsa Track 40
Category
Track Systems, Vorsa Track 30
Finishes
Description

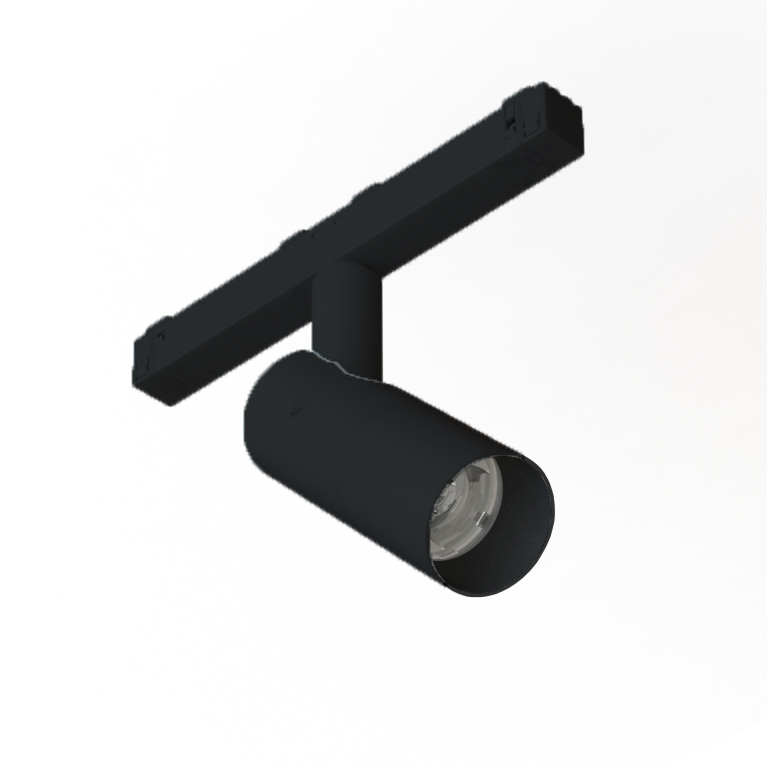

The updated Vorsa Track 40 is a versatile mini “click and fit” track-mounted directional spotlight. It has been re-engineered with a cleaner aesthetic, an increased light output and an industry-leading light output at 98 CRI. Interchangeable optics allow for a range of beam distributions, all easy to fit on-site. Its track architecture facilities easy changing between different size Vorsa heads when commissioning a scheme. We have introduced a new innovative screwless self-supporting tilt mechanism. This fitting is ideal for use in areas of key areas of the home and is perfect for use on beams and concrete ceilings where recessed fittings are unsuitable. The Vorsa Track 40 can be used on a range of Stucchi track systems including recessed, surface mounted and suspended. Please ask for full details. The range has been built to the principles of the circular economy to not only maximise resources but also to reduce waste and environmental impact.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
SUPERIOR LIGHT OUPUT AND QUALITY WHILST KEEPING GLARE TO A MINIMUM.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spot | 9° | 486 | N/A | 225 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Spot | 9° | 486 | N/A | 225 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Narrow | 11° | 680 | N/A | 370 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Narrow | 11° | 680 | N/A | 370 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Medium | 23° | 680 | N/A | 440 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Medium | 23° | 680 | N/A | 440 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Wide | 33° | 680 | N/A | 480 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Wide | 33° | 680 | N/A | 480 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Super Wide | 53° | 680 | N/A | 470 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Super Wide | 53° | 680 | N/A | 470 | 9 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9003
Accessories
Technical Download
