Vorsa Port 50

Category
Spotlights, Surface Mounted
Finishes
Description

The updated Vorsa Port 50 spotlight is a versatile easy click and fit surface-mounted directional spotlight. The plug heads allow you to easily change luminaire heads with no tools. It has an increased light output and an industry-leading light quality of >95 CRI. Interchangeable optics allow for a range of beam distributions, all easy to fit on-site without specialist tools. This fitting is ideal for use on beams and concrete ceilings where recessed fittings are unsuitable. This product comes with different sized bases to suit your requirements: small ø44mm, medium ø55mm, plaster-in visible ø55mm plate that is plastered over ø110mm. Please note when specifying you will need to two product codes; one for the base and one for the fitting.

Tested by Lighting Industry Association (LIA) Laboratory
Application
The Port series creates the ultimate flexible scheme where plaster-in bases can be positioned in locations where light may be needed and left concealed if not required.
Intelligent Design
Superior light ouput and quality whilst keeping glare to a minimum.
Technical Specifications
Beam Beam Angle Source Engine Luminaire Power Supply CCT CRI IP Fire Rated Dimmable
Narrow 12° 1176 lm N/A 667 lm 15W 24V DC (Constant Voltage) 2700K >95 Ra IP20 N/A DALI/Phase cut/1-10V
Medium 25° 1176 lm N/A 868 lm 15W 24V DC (Constant Voltage) 2700K >95 Ra IP20 N/A DALI/Phase cut/1-10V
Wide 37° 1176 lm N/A 732 lm 15W 24V DC (Constant Voltage) 2700K >95 Ra IP20 N/A DALI/Phase cut/1-10V
Super Wide 49° 1176 lm N/A 631 lm 15W 24V DC (Constant Voltage) 2700K >95 Ra IP20 N/A DALI/Phase cut/1-10V

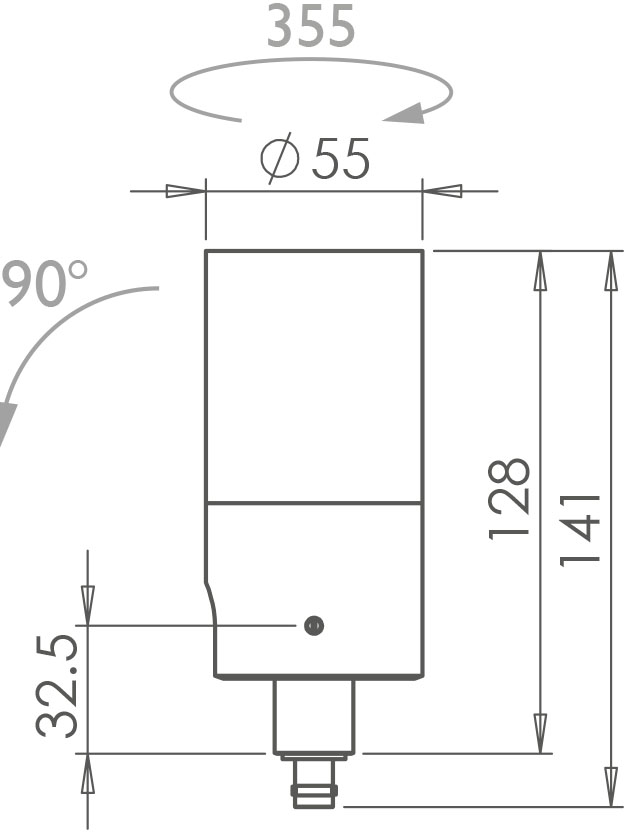

Drawings & Dimensions
Finishes
Black RAL 9005
RAL Match
White RAL 9910
Accessories
Technical Download
