Application
The highest quality and most discreet floor recessed uplight option for adding accent to architectural features with dramatic shafts of light.
Lucca 60
Category
Lucca 60, Uplights
Finishes
Description

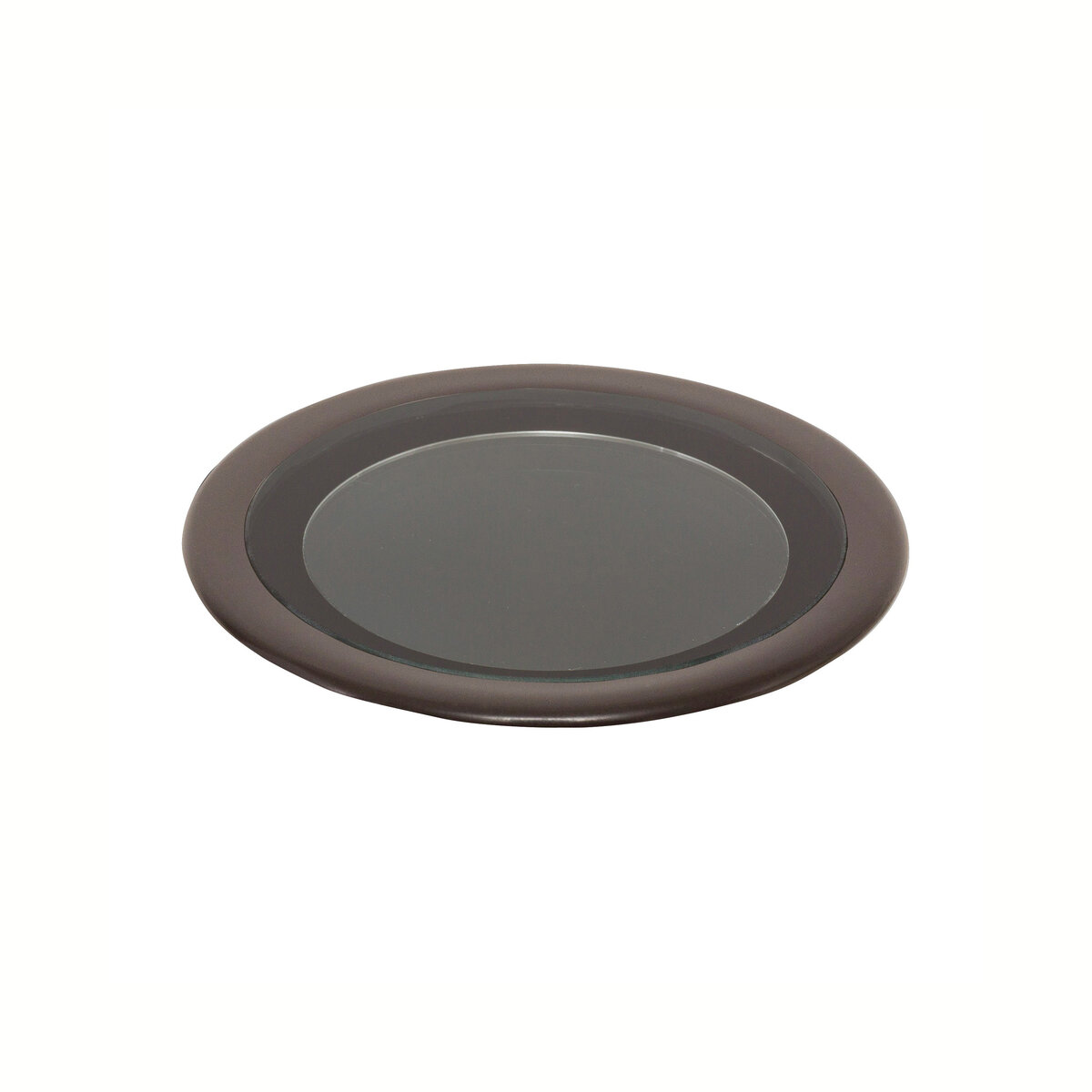

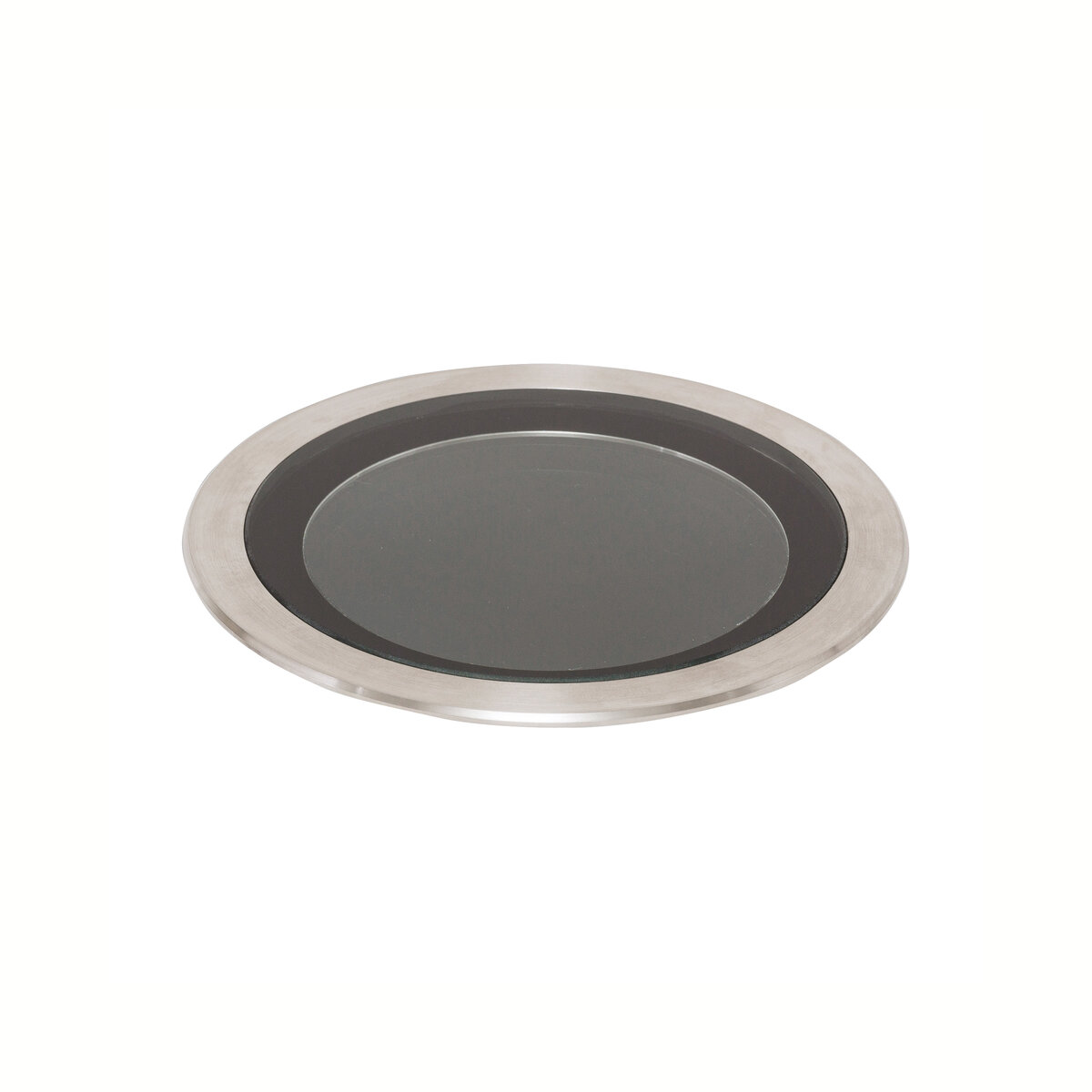

The Lucca 60 is an energy efficient LED midi uplight. It is ideal for creating stunning uplighting effects to columns, arches, window reveals, walls and trees. Available in narrow, medium and wide distributions, with additional elliptical and asymmetric variants for wall grazing and wall washing. Available both as a trim or trimless version. Trimless fittings come with a burial tube as standard.
It is IP67 rated so ideal for use both inside and out. If using inside, the warranty increases to 5 years. Fittings come with 1m of cable as standard. Custom cable lengths are available.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
A unique glass mounting method ensures optimum light output and minimal trim.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 18° | 516 | N/A | 368 lm | 6 | 500mA | 2700K | 92 Ra | IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Medium | 24° | 516 | N/A | 351 lm | 6 | 500mA | 2700K | >90 Ra | IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Wide | 36° | 516 | N/A | 225 lm | 6 | 500mA | 2700K | >90 Ra | IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Asymmetric | Asymmetric | 516 | N/A | 6 | 500mA | 2700K | >90 Ra | IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim | |
| Elliptical | Elliptical | 516 | N/A | 262 lm | 6 | 500mA | 2700K | >90 Ra | IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
Drawings & Dimensions
Finishes
Black Anodised
Brass
Bronze Anodised
Stainless Steel
White RAL 9910

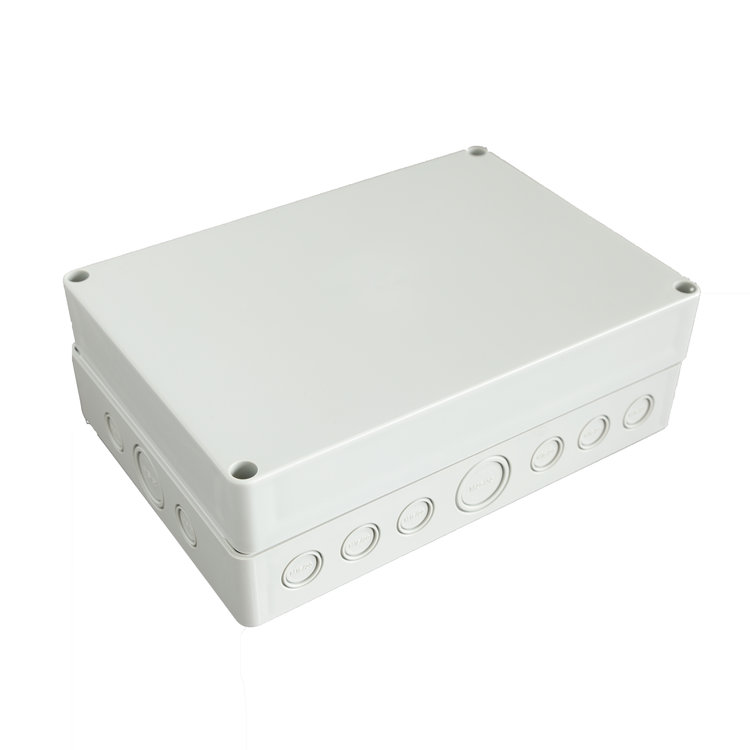

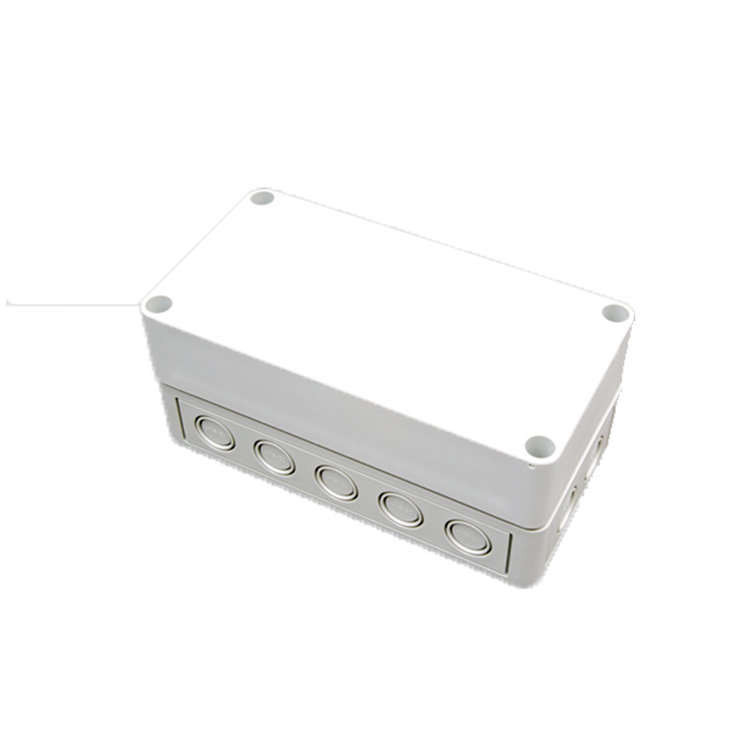

Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
18°
24°
36°
Asymmetric
Elliptical
Beam
All
Asymmetric
Elliptical
Narrow
Medium
Wide
Finish
All
Black Anodised
Brass
Bronze Anodised
Stainless Steel
White RAL 9910
Cowl
All
With Glare Cowl
Without Cowl
Lucca 60 Wide Bronze with cowl
+ Show- Hide Product Image
36°
Wide
Bronze Anodised
With Glare Cowl
Lucca 60 Wide Bronze with cowl
Lucca 60 Wide Stainless Steel with cowl
+ Show- Hide Product Image
36°
Wide
Stainless Steel
With Glare Cowl
Lucca 60 Wide Stainless Steel with cowl
Lucca 60 Wide White with cowl
+ Show- Hide Product Image
36°
Wide
White RAL 9910
With Glare Cowl
Lucca 60 Wide White with cowl
Lucca 60 Wide Black with cowl
+ Show- Hide Product Image
36°
Wide
Black Anodised
With Glare Cowl
Lucca 60 Wide Black with cowl
Lucca 60 Wide Brass with cowl
+ Show- Hide Product Image
36°
Wide
Brass
With Glare Cowl
Lucca 60 Wide Brass with cowl
Lucca 60 Narrow Bronze with cowl
+ Show- Hide Product Image
18°
Narrow
Bronze Anodised
With Glare Cowl
Lucca 60 Narrow Bronze with cowl
Lucca 60 Narrow Stainless Steel with cowl
+ Show- Hide Product Image
18°
Narrow
Stainless Steel
With Glare Cowl
Lucca 60 Narrow Stainless Steel with cowl
Lucca 60 Narrow Black with cowl
+ Show- Hide Product Image
18°
Narrow
Black Anodised
With Glare Cowl
Lucca 60 Narrow Black with cowl
Lucca 60 Narrow Brass with cowl
+ Show- Hide Product Image
18°
Narrow
Brass
With Glare Cowl
Lucca 60 Narrow Brass with cowl
Lucca 60 Medium Bronze with cowl
+ Show- Hide Product Image
24°
Medium
Bronze Anodised
With Glare Cowl
Lucca 60 Medium Bronze with cowl
Lucca 60 Medium Stainless Steel with cowl
+ Show- Hide Product Image
24°
Medium
Stainless Steel
With Glare Cowl
Lucca 60 Medium Stainless Steel with cowl
Lucca 60 Medium Brass with cowl
+ Show- Hide Product Image
24°
Medium
Brass
With Glare Cowl
Lucca 60 Medium Brass with cowl
Lucca 60 Medium White with cowl
+ Show- Hide Product Image
24°
Medium
White RAL 9910
With Glare Cowl
Lucca 60 Medium White with cowl
Lucca 60 Wide Brass
+ Show- Hide Product Image
36°
Wide
Brass
Without Cowl
Lucca 60 Wide Brass
Lucca 60 Wide Bronze
+ Show- Hide Product Image
36°
Wide
Bronze Anodised
Without Cowl
Lucca 60 Wide Bronze
Lucca 60 Wide Stainless Steel
+ Show- Hide Product Image
36°
Wide
Stainless Steel
Without Cowl
Lucca 60 Wide Stainless Steel
Lucca 60 Wide White
+ Show- Hide Product Image
36°
Wide
White RAL 9910
Without Cowl
Lucca 60 Wide White
Lucca 60 Wide Black
+ Show- Hide Product Image
36°
Wide
Black Anodised
Without Cowl
Lucca 60 Wide Black
Lucca 60 Narrow Brass
+ Show- Hide Product Image
18°
Narrow
Brass
Without Cowl
Lucca 60 Narrow Brass
Lucca 60 Narrow Bronze
+ Show- Hide Product Image
18°
Narrow
Bronze Anodised
Without Cowl
Lucca 60 Narrow Bronze
Lucca 60 Narrow Stainless Steel
+ Show- Hide Product Image
18°
Narrow
Stainless Steel
Without Cowl
Lucca 60 Narrow Stainless Steel
Lucca 60 Medium Stainless Steel
+ Show- Hide Product Image
24°
Medium
Stainless Steel
Without Cowl
Lucca 60 Medium Stainless Steel
Lucca 60 Narrow White
+ Show- Hide Product Image
18°
Narrow
White RAL 9910
Without Cowl
Lucca 60 Narrow White
Lucca 60 Medium Brass
+ Show- Hide Product Image
24°
Medium
Brass
Without Cowl
Lucca 60 Medium Brass
Lucca 60 Medium Bronze
+ Show- Hide Product Image
24°
Medium
Bronze Anodised
Without Cowl
Lucca 60 Medium Bronze
Lucca 60 Elliptical Stainless Steel
+ Show- Hide Product Image
Elliptical
Elliptical
Stainless Steel
Without Cowl
Lucca 60 Elliptical Stainless Steel
Lucca 60 Medium White
+ Show- Hide Product Image
24°
Medium
White RAL 9910
Without Cowl
Lucca 60 Medium White
Lucca 60 Medium Black
+ Show- Hide Product Image
24°
Medium
Black Anodised
Without Cowl
Lucca 60 Medium Black
Lucca 60 Elliptical Black
+ Show- Hide Product Image
Elliptical
Elliptical
Black Anodised
Without Cowl
Lucca 60 Elliptical Black
Lucca 60 Elliptical Brass
+ Show- Hide Product Image
Elliptical
Elliptical
Brass
Without Cowl
Lucca 60 Elliptical Brass
Lucca 60 Elliptical Bronze
+ Show- Hide Product Image
Elliptical
Elliptical
Bronze Anodised
Without Cowl
Lucca 60 Elliptical Bronze
Lucca 60 Asymmetric Bronze
+ Show- Hide Product Image
Asymmetric
Asymmetric
Bronze Anodised
Without Cowl
Lucca 60 Asymmetric Bronze
Lucca 60 Asymmetric Stainless Steel
+ Show- Hide Product Image
Asymmetric
Asymmetric
Stainless Steel
Without Cowl
Lucca 60 Asymmetric Stainless Steel
Lucca 60 Elliptical White
+ Show- Hide Product Image
Elliptical
Elliptical
White RAL 9910
Without Cowl
Lucca 60 Elliptical White
Lucca 60 Asymmetric White
+ Show- Hide Product Image
Asymmetric
Asymmetric
White RAL 9910
Without Cowl
Lucca 60 Asymmetric White
Lucca 60 Asymmetric Black
+ Show- Hide Product Image
Asymmetric
Asymmetric
Black Anodised
Without Cowl
Lucca 60 Asymmetric Black
Lucca 60 Asymmetric Brass
+ Show- Hide Product Image
Asymmetric
Asymmetric
Brass
Without Cowl
Lucca 60 Asymmetric Brass
