Application
Used where a miniature, discreet, low glare, square format downlight is required as part of a layered lighting scheme.
Square 30
Category
Downlights
Finishes
Description

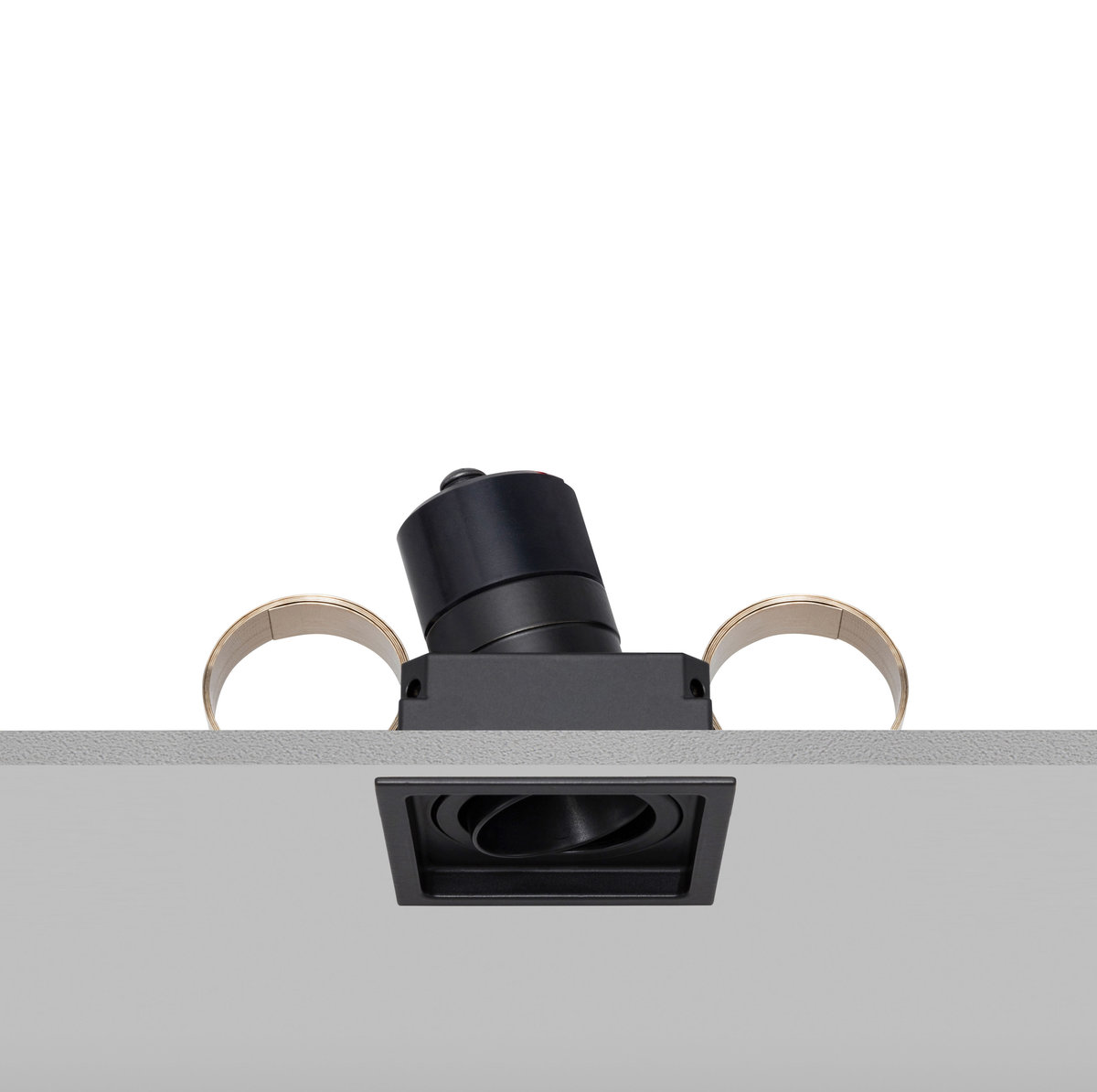

Our Square 30 LED downlight uses an extra slim-line bezel with a deep dual black baffle system to help reduce glare. The Square 30 LED downlight also features a unique concealed ceiling ring for easy lamp changing. It comes in trim and trimless versions.
The downlight is suitable for plasterboard ceilings and can tilt up to 30 degrees.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 172 | 156 | 146 | 2.2 | 700mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Medium | 32° | 400 | 340 | 280 | 4.2 | 350mA | 2700K | >90 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Wide | 46° | 400 | 320 | 240 | 4.2 | 350mA | 2700K | >90 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9003 Textured
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
11°
32°
46°
Beam
All
Narrow
Medium
Wide
Bezel
All
Trim
Trimless
Finish
All
Black RAL 9005
White RAL 9003 Textured
Square Pure 30 Trimless White Wide 2700K
+ Show- Hide Product Image
46°
Wide
Trimless
White RAL 9003 Textured
Square Pure 30 Trimless White Wide 2700K
Square Pure 30 Trimless White Narrow 2700K
+ Show- Hide Product Image
11°
Narrow
Trimless
White RAL 9003 Textured
Square Pure 30 Trimless White Narrow 2700K
Square Pure 30 Trimless White Medium 2700K
+ Show- Hide Product Image
32°
Medium
Trimless
White RAL 9003 Textured
Square Pure 30 Trimless White Medium 2700K
Square Pure 30 Trimless Black Wide 2700K
+ Show- Hide Product Image
46°
Wide
Trimless
Black RAL 9005
Square Pure 30 Trimless Black Wide 2700K
Square Pure 30 Trimless Black Medium 2700K
+ Show- Hide Product Image
32°
Medium
Trimless
Black RAL 9005
Square Pure 30 Trimless Black Medium 2700K
Square Pure 30 Trim White Wide 2700K
+ Show- Hide Product Image
46°
Wide
Trim
White RAL 9003 Textured
Square Pure 30 Trim White Wide 2700K
Square Pure 30 Trim White Narrow 2700K
+ Show- Hide Product Image
11°
Narrow
Trim
White RAL 9003 Textured
Square Pure 30 Trim White Narrow 2700K
Square Pure 30 Trim White Medium 2700K
+ Show- Hide Product Image
32°
Medium
Trim
White RAL 9003 Textured
Square Pure 30 Trim White Medium 2700K
Square Pure 30 Trim Black Wide 2700K
+ Show- Hide Product Image
46°
Wide
Trim
Black RAL 9005
Square Pure 30 Trim Black Wide 2700K
Square Pure 30 Trim Black Narrow 2700K
+ Show- Hide Product Image
11°
Narrow
Trim
Black RAL 9005
Square Pure 30 Trim Black Narrow 2700K
Square Pure 30 Trim Black Medium 2700K
+ Show- Hide Product Image
32°
Medium
Trim
Black RAL 9005
Square Pure 30 Trim Black Medium 2700K
