Application
PROVIDES GENERAL OR FOCUSSED LIGHT IN A TRACK MOUNTED ALTERNATIVE TO OUR PRESTIGIOUS POLESPRING RANGE USING VARIABLE BEAM ANGLES AND LENSES.
Vorsa Track 50
Category
Track Systems
Finishes
Description
The updated Vorsa Track 50 is a versatile “click and fit” track-mounted directional spotlight. It has been re-engineered with a cleaner aesthetic, an increased light output and an industry-leading light output at 98 CRI. Interchangeable optics allow for a range of beam distributions, all easy to fit on-site. Its track architecture facilities easy changing between different size Vorsa heads when commissioning a scheme. We have introduced a new innovative screwless self-supporting tilt mechanism. This fitting is ideal for use in areas of key areas of the home and is perfect for use on beams and concrete ceilings where recessed fittings are unsuitable. The Vorsa Track 50 can be used on a range of Stucchi track systems including recessed, surface mounted and suspended. Please ask for full details. The range has been built to the principles of the circular economy to not only maximise resources but also to reduce waste and environmental impact.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
SUPERIOR LIGHT OUPUT AND QUALITY WHILST KEEPING GLARE TO A MINIMUM.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 19° | 1290 | N/A | 990 | 12 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Narrow | 19° | 1290 | N/A | 990 | 12 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Medium | 26° | 1290 | N/A | 920 | 12 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Medium | 26° | 1290 | N/A | 920 | 12 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Wide | 36° | 1290 | N/A | 850 | 12 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | DALI |
| Wide | 36° | 1290 | N/A | 850 | 12 | Constant Voltage | 2700K | >95 Ra | IP20 | N/A | 0-10V |
| Super Wide | 50° | 1290 | N/A | 780 | 12 | 48V DC (Contant Voltage) | 2700K | >95 Ra | IP20 | N/A | DALI |
| Super Wide | 50° | 1290 | N/A | 780 | 12 | 48V DC (Contant Voltage) | 2700K | >95 Ra | IP20 | N/A | 0-10V |

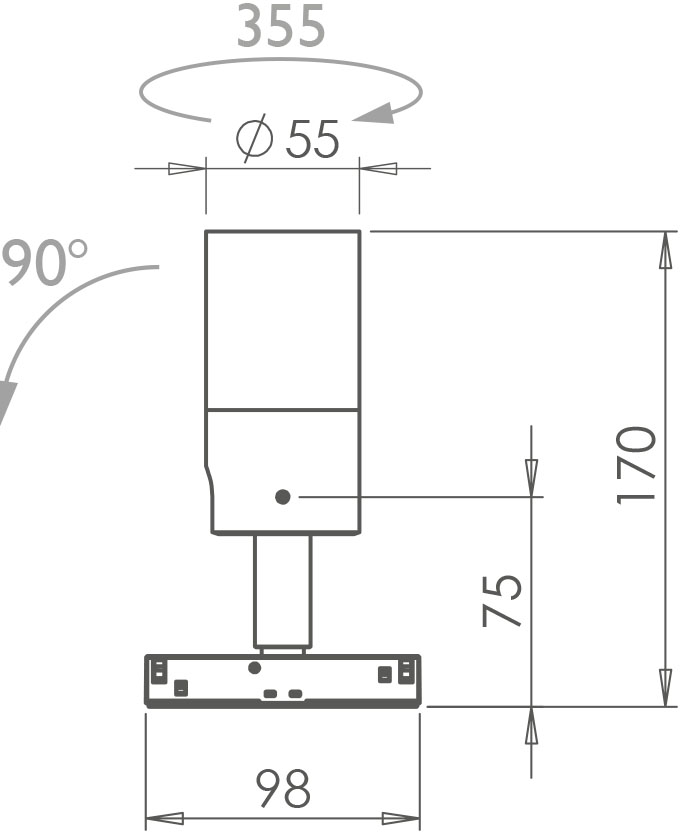

Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9003
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam
All
Super Spot
Spot
Narrow
Medium
Wide
Super Wide
Beam Angle
All
11°
12°
19°
26°
36°
50°
Finish
All
Black RAL 9005
White RAL 9003
Vorsa Track 50 Spot Black DALI
+ Show- Hide Product Image
Spot
12°
Black RAL 9005
Vorsa Track 50 Spot Black DALI
Vorsa Track 50 Spot Black 0-10V
+ Show- Hide Product Image
Spot
12°
Black RAL 9005
Vorsa Track 50 Spot Black 0-10V
Vorsa Track 50 Spot White 0-10V
+ Show- Hide Product Image
Spot
12°
White RAL 9003
Vorsa Track 50 Spot White 0-10V
Vorsa Track 50 Spot White DALI
+ Show- Hide Product Image
Spot
12°
White RAL 9003
Vorsa Track 50 Spot White DALI
Vorsa Track 50 Super Spot Black 0-10V
+ Show- Hide Product Image
Super Spot
11°
Black RAL 9005
Vorsa Track 50 Super Spot Black 0-10V
Vorsa Track 50 Super Spot Black DALI
+ Show- Hide Product Image
Super Spot
11°
Black RAL 9005
Vorsa Track 50 Super Spot Black DALI
Vorsa Track 50 Super Spot White 0-10V
+ Show- Hide Product Image
Super Spot
11°
White RAL 9003
Vorsa Track 50 Super Spot White 0-10V
Vorsa Track 50 Super Spot White DALI
+ Show- Hide Product Image
Super Spot
11°
White RAL 9003
Vorsa Track 50 Super Spot White DALI
Vorsa Track 50 Super Wide Black DALI
+ Show- Hide Product Image
Super Wide
50°
Black RAL 9005
Vorsa Track 50 Super Wide Black DALI
Vorsa Track 50 Super Wide Black 0-10V
+ Show- Hide Product Image
Super Wide
50°
Black RAL 9005
Vorsa Track 50 Super Wide Black 0-10V
Vorsa Track 50 Super Wide White DALI
+ Show- Hide Product Image
Super Wide
50°
White RAL 9003
Vorsa Track 50 Super Wide White DALI
Vorsa Track 50 Wide Black DALI
+ Show- Hide Product Image
Wide
36°
Black RAL 9005
Vorsa Track 50 Wide Black DALI
Vorsa Track 50 Super Wide White 0-10V
+ Show- Hide Product Image
Super Wide
50°
White RAL 9003
Vorsa Track 50 Super Wide White 0-10V
Vorsa Track 50 Wide Black 0-10V
+ Show- Hide Product Image
Wide
36°
Black RAL 9005
Vorsa Track 50 Wide Black 0-10V
Vorsa Track 50 Wide White DALI
+ Show- Hide Product Image
Wide
36°
White RAL 9003
Vorsa Track 50 Wide White DALI
Vorsa Track 50 Wide White 0-10V
+ Show- Hide Product Image
Wide
36°
White RAL 9003
Vorsa Track 50 Wide White 0-10V
Vorsa Track 50 Medium Black 0-10V
+ Show- Hide Product Image
Medium
26°
Black RAL 9005
Vorsa Track 50 Medium Black 0-10V
Vorsa Track 50 Medium Black DALI
+ Show- Hide Product Image
Medium
26°
Black RAL 9005
Vorsa Track 50 Medium Black DALI
Vorsa Track 50 Medium White DALI
+ Show- Hide Product Image
Medium
26°
White RAL 9003
Vorsa Track 50 Medium White DALI
Vorsa Track 50 Medium White 0-10V
+ Show- Hide Product Image
Medium
26°
White RAL 9003
Vorsa Track 50 Medium White 0-10V
Vorsa Track 50 Narrow Black DALI
+ Show- Hide Product Image
Narrow
19°
Black RAL 9005
Vorsa Track 50 Narrow Black DALI
Vorsa Track 50 Narrow Black 0-10V
+ Show- Hide Product Image
Narrow
19°
Black RAL 9005
Vorsa Track 50 Narrow Black 0-10V
Vorsa Track 50 Narrow White 0-10V
+ Show- Hide Product Image
Narrow
19°
White RAL 9003
Vorsa Track 50 Narrow White 0-10V
Vorsa Track 50 Narrow White DALI
+ Show- Hide Product Image
Narrow
19°
White RAL 9003
Vorsa Track 50 Narrow White DALI
