Square Double 50 IP

Category
AquaSquare Double 50 Trim, Downlights
Finishes
Description

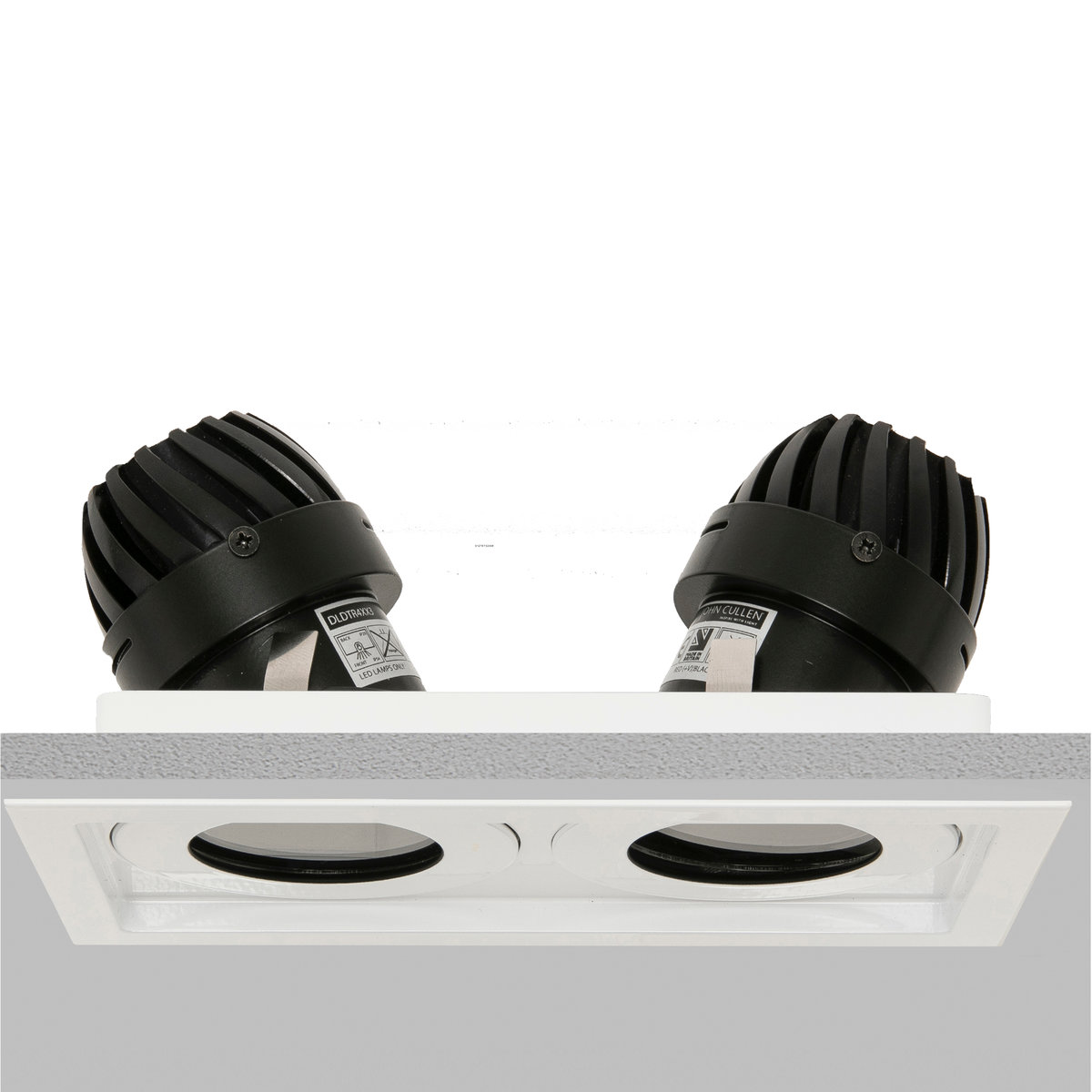

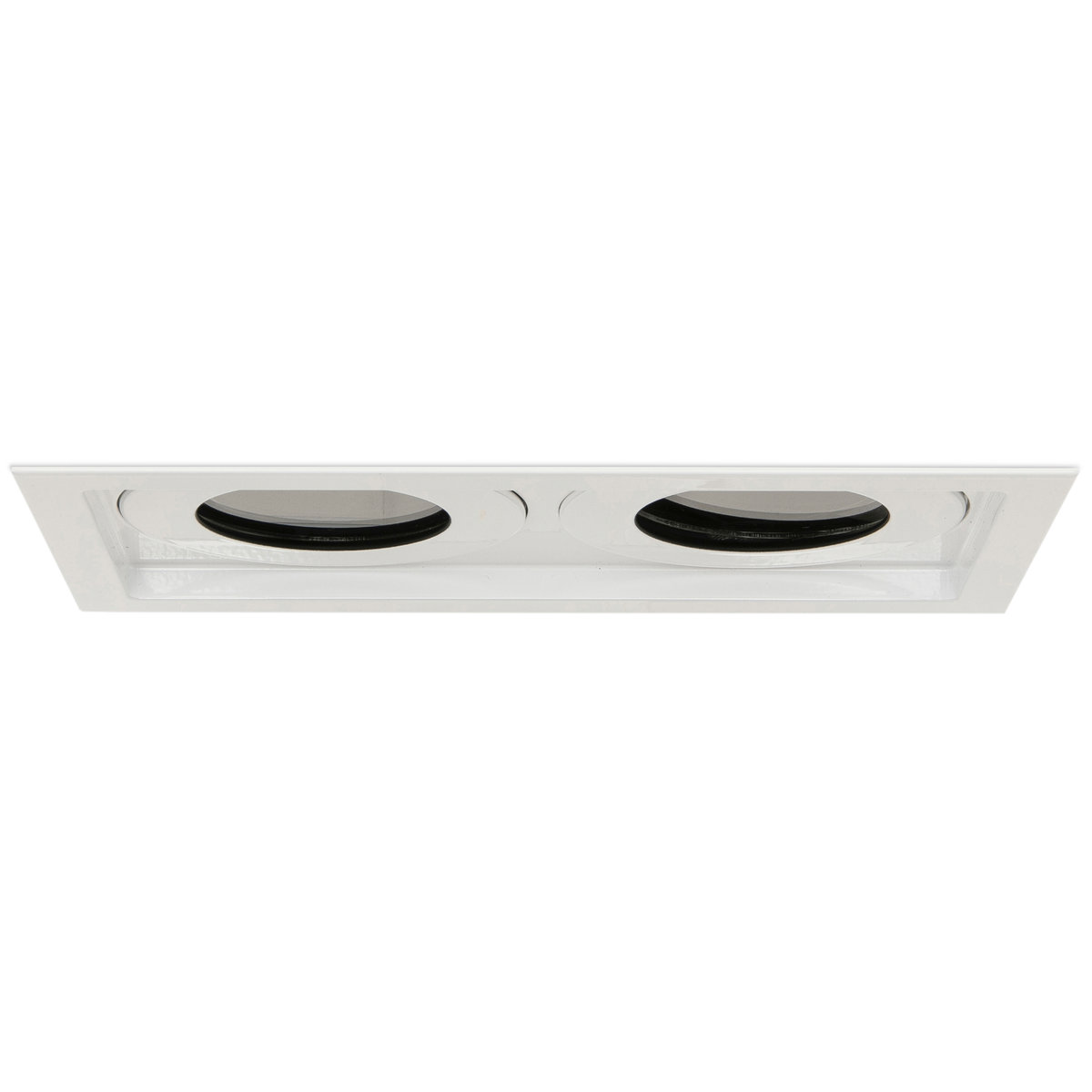

Our Square Double 50 IP rated LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for wet areas and for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees. It comes in trim and trimless versions.

Downlight 50 range now comes with four different LED engines: Pure 50, AmbiDim 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a plug-in LED driver for interchangeable components on site with no hand tools required.

Tested by Lighting Industry Association (LIA) Laboratory
Enquire
Application
Accessories & variable optics allow for the Square50 to achieve tight focus to features, or for broader washes of light, reflecting off vertical surfaces in wet zones.
Intelligent Design
Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
Beam Beam Angle Source Engine Luminaire Power Supply CCT CRI IP Fire Rated Dimmable
Super Spot 13° x 2 1014 984 lm 600 lm 13.2 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Mains (Phase)/0-10V/Casambi/Non-Dim
Spot 16° x 2 1996 1974 lm 1402 lm 25.6 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Mains (Phase)/0-10V/Casambi/Non-Dim
Narrow 22° x 2 2688 2400 lm 1462 lm 24 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Mains (Phase)/0-10V/Casambi/Non-Dim
Medium 26° x 2 2688 2328 lm 1416 lm 24 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Mains (Phase)/0-10V/Casambi/Non-Dim
Wide 34° x 2 2688 2222 lm 1306 lm 24 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Mains (Phase)/0-10V/Casambi/Non-Dim
Super Wide 46° x 2 2688 2458 lm 1178 lm 24 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Mains (Phase)/0-10V/Casambi/Non-Dim

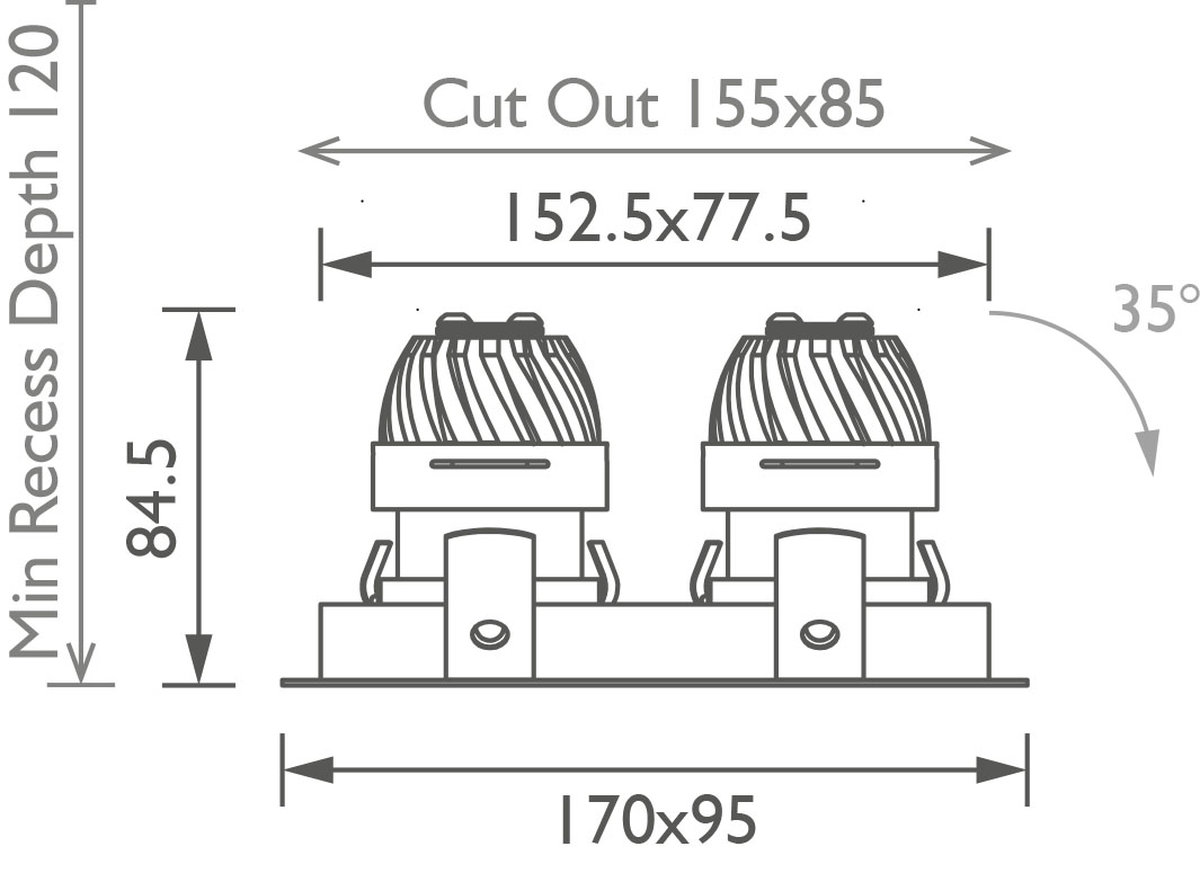

Drawings & Dimensions
Square Double 50 IP dimension image
Finishes
Black RAL 9005
RAL Match
White RAL 9910
Accessories
Square Double 50 IP product image
Honeycomb Insert 50mm
ACHC50MM1
Square Double 50 IP product image
Sandblasted Glass Lens 50mm
ACSG50MM1
Square Double 50 IP product image
Softening Lens 50mm
ACSL50MM2
Square Double 50 IP product image
Spreader Lens 50mm
ACLL50MM1
Square Double 50 IP product image
Intumescent Firehood Large
ACFHXXLA1
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam
All
Super Spot
Spot
Narrow
Medium
Wide
Super Wide
Beam Angle
All
13° x 2
16° x 2
22° x 2
26° x 2
34° x 2
46° x 2
Bezel
All
Trim
Trimless
Finish
All
Black RAL 9005
White RAL 9910
KSDT02TP27WI54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Wide
34° x 2
Trim
Black RAL 9005
Enquire
Square Double Trim Pure 50 IP Black Wide 2700K
KSDT02TP27SW54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Wide
46° x 2
Trim
Black RAL 9005
Enquire
Square Double Trim Pure 50 IP Black Super Wide 2700K
KSDT02TP27SS54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Spot
13° x 2
Trim
Black RAL 9005
Enquire
Square Double Trim Pure 50 IP Black Super Spot 2700K
KSDT02TP27SP54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Spot
16° x 2
Trim
Black RAL 9005
Enquire
Square Double Trim Pure 50 IP Black Spot 2700K
KSDT02TP27NA54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Narrow
22° x 2
Trim
Black RAL 9005
Enquire
Square Double Trim Pure 50 IP Black Narrow 2700K
KSDT02TP27ME54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Medium
26° x 2
Trim
Black RAL 9005
Enquire
Square Double Trim Pure 50 IP Black Medium 2700K
KSDT01TP27WI54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Wide
34° x 2
Trim
White RAL 9910
Enquire
Square Double Trim Pure 50 IP White Wide 2700K
KSDT01TP27NA54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Narrow
22° x 2
Trim
White RAL 9910
Enquire
Square Double Trim Pure 50 IP White Narrow 2700K
KSDL02TP27WI54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Wide
34° x 2
Trimless
Black RAL 9005
Enquire
Square Double Trimless Pure 50 IP Black Wide 2700K
KSDL02TP27SW54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Wide
46° x 2
Trimless
Black RAL 9005
Enquire
Square Double Trimless Pure 50 IP Black Super Wide 2700K
KSDL02TP27SS54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Spot
13° x 2
Trimless
Black RAL 9005
Enquire
Square Double Trimless Pure 50 IP Black Super Spot 2700K
KSDL02TP27SP54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Spot
16° x 2
Trimless
Black RAL 9005
Enquire
Square Double Trimless Pure 50 IP Black Spot 2700K
KSDL02TP27NA54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Narrow
22° x 2
Trimless
Black RAL 9005
Enquire
Square Double Trimless Pure 50 IP Black Narrow 2700K
KSDL02TP27ME54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Medium
26° x 2
Trimless
Black RAL 9005
Enquire
Square Double Trimless Pure 50 IP Black Medium 2700K
KSDL01TP27WI54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Wide
34° x 2
Trimless
White RAL 9910
Enquire
Square Double Trimless Pure 50 IP White Wide 2700K
KSDL01TP27NA54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Narrow
22° x 2
Trimless
White RAL 9910
Enquire
Square Double Trimless Pure 50 IP White Narrow 2700K
KSDL01TP27SW54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Wide
46° x 2
Trimless
White RAL 9910
Enquire
Square Double Trimless Pure 50 IP White Super Wide 2700K
KSDL01TP27ME54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Medium
26° x 2
Trimless
White RAL 9910
Enquire
Square Double Trimless Pure 50 IP White Medium 2700K
KSDL01TP27SP54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Spot
16° x 2
Trimless
White RAL 9910
Enquire
Square Double Trimless Pure 50 IP White Spot 2700K
KSDL01TP27SS54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Spot
13° x 2
Trimless
White RAL 9910
Enquire
Square Double Trimless Pure 50 IP White SuperSpot 2700K
KSDT01TP27SW54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Wide
46° x 2
Trim
White RAL 9910
Enquire
Square Double Trim Pure 50 IP White Super Wide 2700K
KSDT01TP27ME54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Medium
26° x 2
Trim
White RAL 9910
Enquire
Square Double Trim Pure 50 IP White Medium 2700K
KSDT01TP27SP54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Spot
16° x 2
Trim
White RAL 9910
Enquire
Square Double Trim Pure 50 IP White Spot 2700K
KSDT01TP27SS54
Downloads
+ Show- Hide Product Image
Square Double 50 IP product image
Super Spot
13° x 2
Trim
White RAL 9910
Enquire
Square Double Trim Pure 50 IP White Super Spot 2700K
