Application

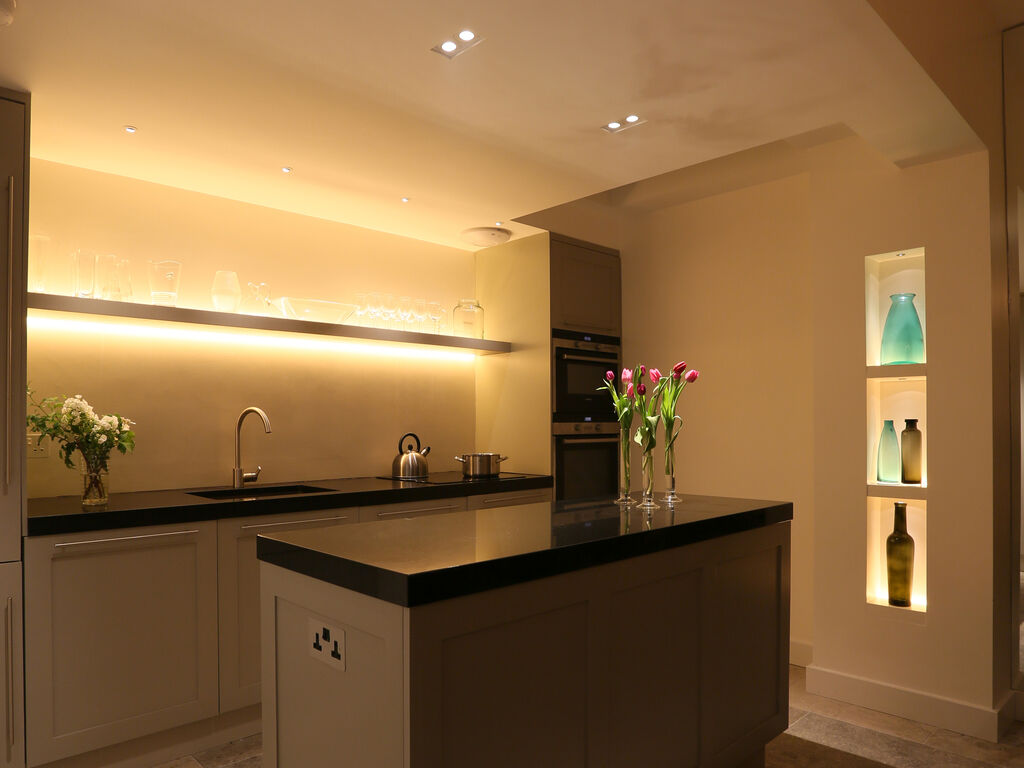

Accessories and variable optics allow for the Square 50 to achieve tight focus to features, or for broader washes of light, reflecting off vertical surfaces.
Square Double 50
Category
Downlights
Finishes
Description

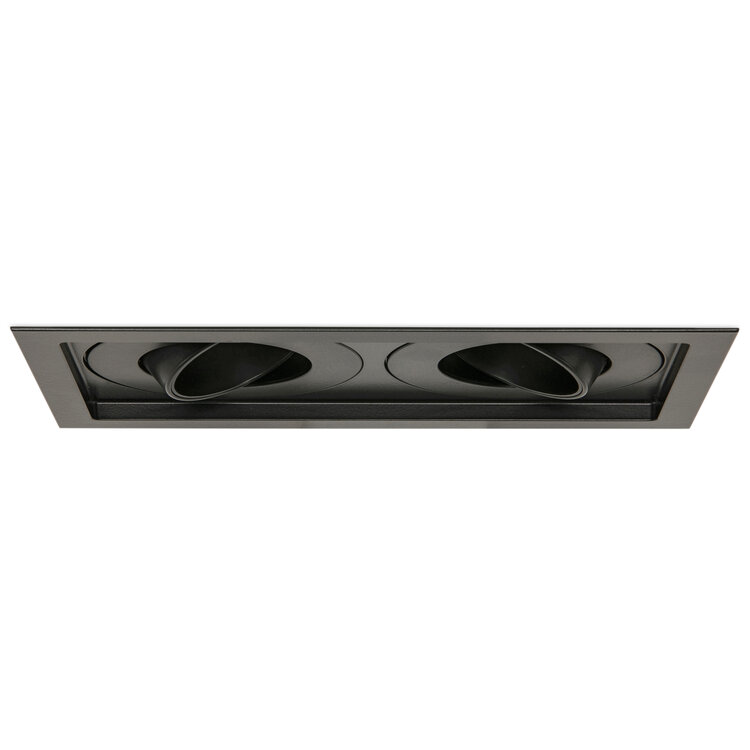

Our Square Double 50 LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees. It comes in trim and trimless versions.
Downlight 50 range now comes with three different LED engines: Pure 50, AmbiDim 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a plug in LED driver for interchangeable components on site with no hand tools required.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SuperSpot | 13° x 2 | 1014 lm | 984 lm | 624 lm | 13.2W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Spot | 16° x 2 | 1996 lm | 1974 lm | 1420 lm | 25.6W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Narrow | 22° x 2 | 2688 lm | 2400 lm | 1494 lm | 24W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Medium | 26° x 2 | 2688 lm | 2328 lm | 1422 lm | 24W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| Wide | 34° x 2 | 2688 lm | 2222 lm | 1322 lm | 24W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
| SuperWide | 46° x 2 | 2688 lm | 2458 lm | 1194 lm | 24W | 350mA | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V |
Drawings & Dimensions
Finishes
Black RAL 9005
White RAL 9910
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
13° x 2
16° x 2
22° x 2
26° x 2
34° x 2
46° x 2
Beam
All
SuperSpot
SuperWide
Spot
Narrow
Medium
Wide
Bezel
All
Trim
Trimless
Finish
All
Black RAL 9005
White RAL 9910
Square Double Trim Pure 50 White Wide 2700K
+ Show- Hide Product Image
34° x 2
Wide
Trim
White RAL 9910
Square Double Trim Pure 50 White Wide 2700K
Square Double Trimless Pure 50 Black Wide 2700K
+ Show- Hide Product Image
34° x 2
Wide
Trimless
Black RAL 9005
Square Double Trimless Pure 50 Black Wide 2700K
Square Double Trimless Pure 50 Black Narrow 2700K
+ Show- Hide Product Image
22° x 2
Narrow
Trimless
Black RAL 9005
Square Double Trimless Pure 50 Black Narrow 2700K
Square Double Trim Pure 50 White Narrow 2700K
+ Show- Hide Product Image
22° x 2
Narrow
Trim
White RAL 9910
Square Double Trim Pure 50 White Narrow 2700K
Square Double Trimless Pure 50 White Wide 2700K
+ Show- Hide Product Image
34° x 2
Wide
Trimless
White RAL 9910
Square Double Trimless Pure 50 White Wide 2700K
Square Double Trimless Pure 50 White Narrow 2700K
+ Show- Hide Product Image
22° x 2
Narrow
Trimless
White RAL 9910
Square Double Trimless Pure 50 White Narrow 2700K
Square Double Trim Pure 50 Black Wide 2700K
+ Show- Hide Product Image
34° x 2
Wide
Trim
Black RAL 9005
Square Double Trim Pure 50 Black Wide 2700K
Square Double Trim Pure 50 Black Narrow 2700K
+ Show- Hide Product Image
22° x 2
Narrow
Trim
Black RAL 9005
Square Double Trim Pure 50 Black Narrow 2700K
Square Double Trim Pure 50 Black SuperWide 2700K
+ Show- Hide Product Image
46° x 2
SuperWide
Trim
Black RAL 9005
Square Double Trim Pure 50 Black SuperWide 2700K
Square Double Trim Pure 50 Black Medium 2700K
+ Show- Hide Product Image
26° x 2
Medium
Trim
Black RAL 9005
Square Double Trim Pure 50 Black Medium 2700K
Square Double Trim Pure 50 Black Spot 2700K
+ Show- Hide Product Image
16° x 2
Spot
Trim
Black RAL 9005
Square Double Trim Pure 50 Black Spot 2700K
Square Double Trim Pure 50 Black SuperSpot 2700K
+ Show- Hide Product Image
13° x 2
SuperSpot
Trim
Black RAL 9005
Square Double Trim Pure 50 Black SuperSpot 2700K
Square Double Trimless Pure 50 Black SuperSpot 2700K
+ Show- Hide Product Image
13° x 2
SuperSpot
Trimless
Black RAL 9005
Square Double Trimless Pure 50 Black SuperSpot 2700K
Square Double Trimless Pure 50 Black SuperWide 2700K
+ Show- Hide Product Image
46° x 2
SuperWide
Trimless
Black RAL 9005
Square Double Trimless Pure 50 Black SuperWide 2700K
Square Double Trimless Pure 50 Black Medium 2700K
+ Show- Hide Product Image
26° x 2
Medium
Trimless
Black RAL 9005
Square Double Trimless Pure 50 Black Medium 2700K
Square Double Trimless Pure 50 Black Spot 2700K
+ Show- Hide Product Image
16° x 2
Spot
Trimless
Black RAL 9005
Square Double Trimless Pure 50 Black Spot 2700K
Square Double Trimless Pure 50 White SuperWide 2700K
+ Show- Hide Product Image
46° x 2
SuperWide
Trimless
White RAL 9910
Square Double Trimless Pure 50 White SuperWide 2700K
Square Double Trimless Pure 50 White SuperSpot 2700K
+ Show- Hide Product Image
13° x 2
SuperSpot
Trimless
White RAL 9910
Square Double Trimless Pure 50 White SuperSpot 2700K
Square Double Trimless Pure 50 White Spot 2700K
+ Show- Hide Product Image
16° x 2
Spot
Trimless
White RAL 9910
Square Double Trimless Pure 50 White Spot 2700K
Square Double Trimless Pure 50 White Medium 2700K
+ Show- Hide Product Image
26° x 2
Medium
Trimless
White RAL 9910
Square Double Trimless Pure 50 White Medium 2700K
Square Double Trim Pure 50 White Medium 2700K
+ Show- Hide Product Image
26° x 2
Medium
Trim
White RAL 9910
Square Double Trim Pure 50 White Medium 2700K
Square Double Trim Pure 50 White SuperWide 2700K
+ Show- Hide Product Image
46° x 2
SuperWide
Trim
Black RAL 9005
Square Double Trim Pure 50 White SuperWide 2700K
Square Double Trim Pure 50 White SuperSpot 2700K
+ Show- Hide Product Image
13° x 2
SuperSpot
Trim
White RAL 9910
Square Double Trim Pure 50 White SuperSpot 2700K
Square Double Trim Pure 50 White Spot 2700K
+ Show- Hide Product Image
16° x 2
Spot
Trim
White RAL 9910
Square Double Trim Pure 50 White Spot 2700K
