Square Double 50 IP

Category
AquaSquare Double 50 Trim, Downlights
Finishes
Description

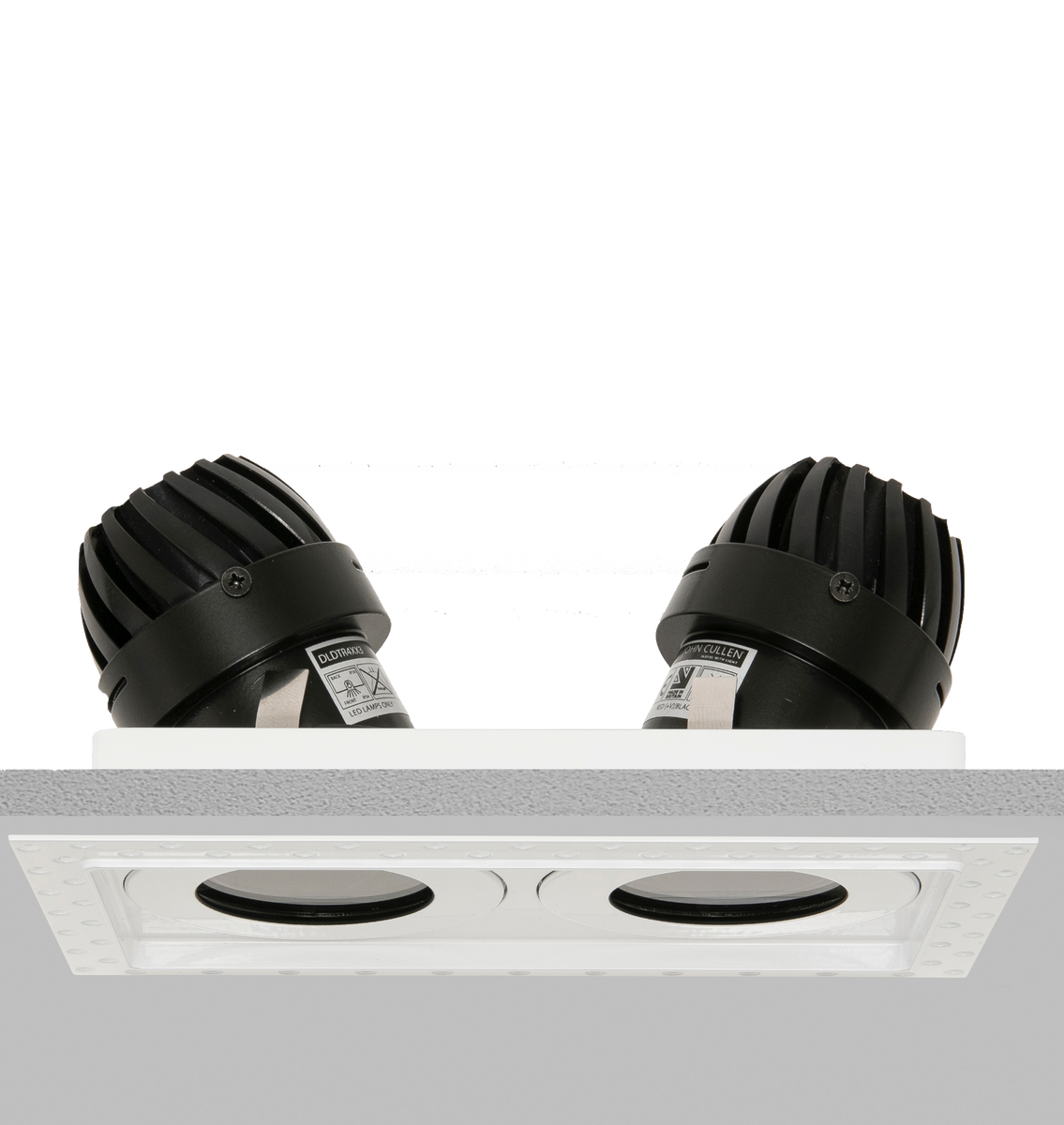

Our Square Double 50 IP rated LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for wet areas and for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees. It comes in trim and trimless versions.

Downlight 50 range now comes with four different LED engines: Pure 50, AmbiDim 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a plug-in LED driver for interchangeable components on site with no hand tools required.

Tested by Lighting Industry Association (LIA) Laboratory
Application
Accessories & variable optics allow for the Square50 to achieve tight focus to features, or for broader washes of light, reflecting off vertical surfaces in wet zones.
Intelligent Design
Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
Beam Beam Angle Source Engine Luminaire Power Supply CCT CRI IP Fire Rated Dimmable
SuperSpot 13° x 2 1014 lm 984 lm 600 lm 13.2W 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Phase cut/1-10V
Spot 16° x 2 1996 lm 1974 lm 1402 lm 25.6W 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Phase cut/1-10V
Narrow 22° x 2 2688 lm 2400 lm 1462 lm 24W 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Phase cut/1-10V
Medium 26° x 2 2688 lm 2328 lm 1416 lm 24W 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Phase cut/1-10V
Wide 34° x 2 2688 lm 2222 lm 1306 lm 24W 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Phase cut/1-10V
SuperWide 46° x 2 2688 lm 2458 lm 1178 lm 24W 350mA 2700K 98 Ra IP54 (Front)/IP20 (Rear) Yes DALI/Phase cut/1-10V

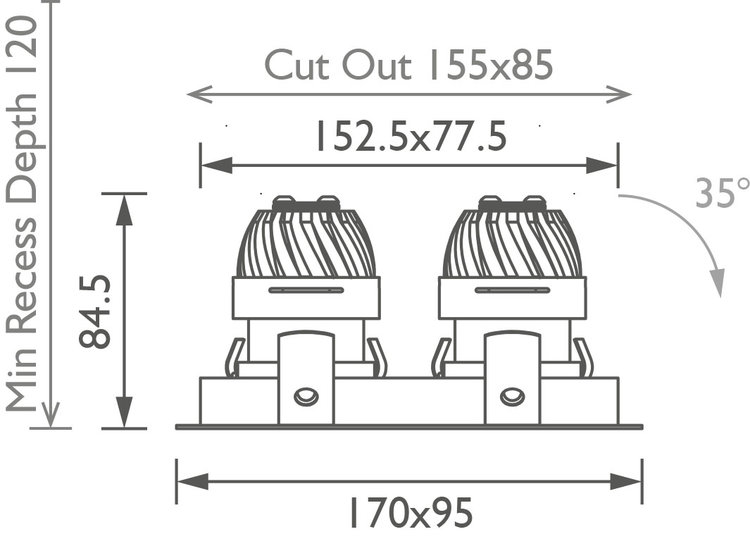

Drawings & Dimensions
Finishes
Black RAL 9005
RAL Match
White RAL 9910
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
13° x 2
16° x 2
22° x 2
26° x 2
34° x 2
46° x 2
Beam
All
SuperSpot
SuperWide
Spot
Narrow
Medium
Wide
Bezel
All
Trim
Trimless
Finish
All
Black RAL 9005
White RAL 9910
34° x 2
Wide
Trim
Black RAL 9005
Square Double Trim Pure 50 IP Black Wide 2700K
46° x 2
SuperWide
Trim
Black RAL 9005
Square Double Trim Pure 50 IP Black SuperWide 2700K
13° x 2
SuperSpot
Trim
Black RAL 9005
Square Double Trim Pure 50 IP Black SuperSpot 2700K
KSDT02TP27SP54
Downloads
+ Show- Hide Product Image
16° x 2
Spot
Trim
Black RAL 9005
Square Double Trim Pure 50 IP Black Spot 2700K
22° x 2
Narrow
Trim
Black RAL 9005
Square Double Trim Pure 50 IP Black Narrow 2700K
26° x 2
Medium
Trim
Black RAL 9005
Square Double Trim Pure 50 IP Black Medium 2700K
34° x 2
Wide
Trim
White RAL 9910
Square Double Trim Pure 50 IP White Wide 2700K
22° x 2
Narrow
Trim
White RAL 9910
Square Double Trim Pure 50 IP White Narrow 2700K
34° x 2
Wide
Trimless
Black RAL 9005
Square Double Trimless Pure 50 IP Black Wide 2700K
46° x 2
SuperWide
Trimless
Black RAL 9005
Square Double Trimless Pure 50 IP Black SuperWide 2700K
13° x 2
SuperSpot
Trimless
Black RAL 9005
Square Double Trimless Pure 50 IP Black SuperSpot 2700K
KSDL02TP27SP54
Downloads
+ Show- Hide Product Image
16° x 2
Spot
Trimless
Black RAL 9005
Square Double Trimless Pure 50 IP Black Spot 2700K
22° x 2
Narrow
Trimless
Black RAL 9005
Square Double Trimless Pure 50 IP Black Narrow 2700K
26° x 2
Medium
Trimless
Black RAL 9005
Square Double Trimless Pure 50 IP Black Medium 2700K
34° x 2
Wide
Trimless
White RAL 9910
Square Double Trimless Pure 50 IP White Wide 2700K
22° x 2
Narrow
Trimless
White RAL 9910
Square Double Trimless Pure 50 IP White Narrow 2700K
46° x 2
SuperWide
Trimless
White RAL 9910
Square Double Trimless Pure 50 IP White SuperWide 2700K
26° x 2
Medium
Trimless
White RAL 9910
Square Double Trimless Pure 50 IP White Medium 2700K
KSDL01TP27SP54
Downloads
+ Show- Hide Product Image
16° x 2
Spot
Trimless
White RAL 9910
Square Double Trimless Pure 50 IP White Spot 2700K
13° x 2
SuperSpot
Trimless
White RAL 9910
Square Double Trimless Pure 50 IP White SuperSpot 2700K
46° x 2
SuperWide
Trim
White RAL 9910
Square Double Trim Pure 50 IP White SuperWide 2700K
26° x 2
Medium
Trim
White RAL 9910
Square Double Trim Pure 50 IP White Medium 2700K
KSDT01TP27SP54
Downloads
+ Show- Hide Product Image
16° x 2
Spot
Trim
White RAL 9910
Square Double Trim Pure 50 IP White Spot 2700K
13° x 2
SuperSpot
Trim
White RAL 9910
Square Double Trim Pure 50 IP White SuperSpot 2700K
