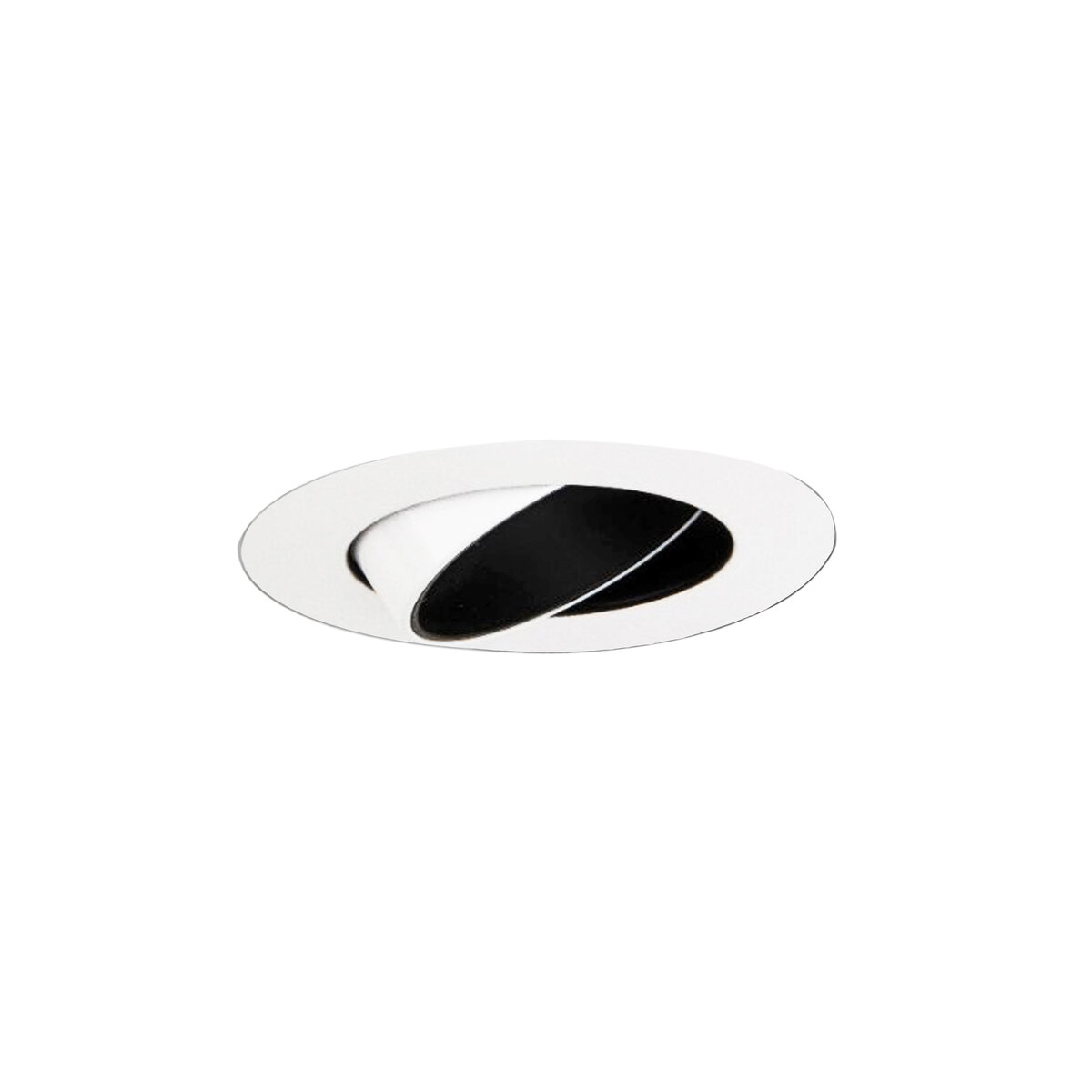

Polespring Pure 50 Downlight
The Polespring 50 is a low glare directional architectural downlight with a tilt mechanism of 35 degrees, suitable for both interior and marine applications. A 25mm extra deep black baffle and extra slim bezel allows for a low glare and minimal architectural lighting solutions.
The Polespring 50 now comes with four different LED engines: Pure 50, AmbiDim 50, True 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a patented twist and lock LED engine mount and plug in LED driver for interchangeable components on site with no hand tools required. A narrow 22° and wide 33° beam is available on special request.
Applications
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 1231 lm | 597 lm | 12W | 45° | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V | Yes |
| 730 lm (94lm Red) | 540 lm (67lm Red) | 8.4W (6.2 W RED) | 30° (70° Red) | 2700K + RED | >92 Ra | IP20 | N/A | Ask your Sales contact | No |
| 1163 lm | 711 lm | 12W | 26° | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V | Yes |
| 925 lm | 710 lm | 12.8W | 16° | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V | Yes |
| 411 lm | 315 lm | 7W | 13° | 2700K | 98 Ra | IP20 | Yes | DALI/Phase cut/1-10V | Yes |
Downloads
- Polespring_Pure_50_Medium_2700K_%282020%29.ldt (.ldt)
- Polespring_Pure_50_Medium_2700K_%282020%29.ies (.ies)
- Polespring_50_Installation_Guide.pdf (.pdf)
- Polespring_Pure_50_Spot_2700K_%282020%29.ldt (.ldt)
- Polespring_Pure_50_Spot_2700K_%282020%29.ies (.ies)
- Polespring_Pure_50_Narrow_2700K_%282020%29.ldt (.ldt)
- Polespring_Pure_50_Narrow_2700K_%282020%29.ies (.ies)
- Polespring_50_15_03_23.pdf (.pdf)
Accessories
-
Fire Plate 50
ACFPPSXX1
-
Halogen Upgrade Downlight Accessory White
ACHUPS011
-
Honeycomb Insert 50mm
ACHC50MM1
-
Lathe & Plaster Ceiling Ring Accessory
ACLPCRING
-
Plaster-in Flush Downlight Accessory
ACPIFLDL1
-
Sandblasted Glass Lens 50mm
ACSG50MM1
-
Softening Lens 50mm
ACSL50MM2
-
Spreader Lens 50mm
ACLL50MM1
