Minim Joinery Light
The Minim is a precision-engineered miniature LED joinery light. This unique shelf light can be used for recessed task and display lighting throughout the home, hospitality, or yacht projects. It is suitable for under-shelf lighting, bespoke cabinetry, and retail lighting.

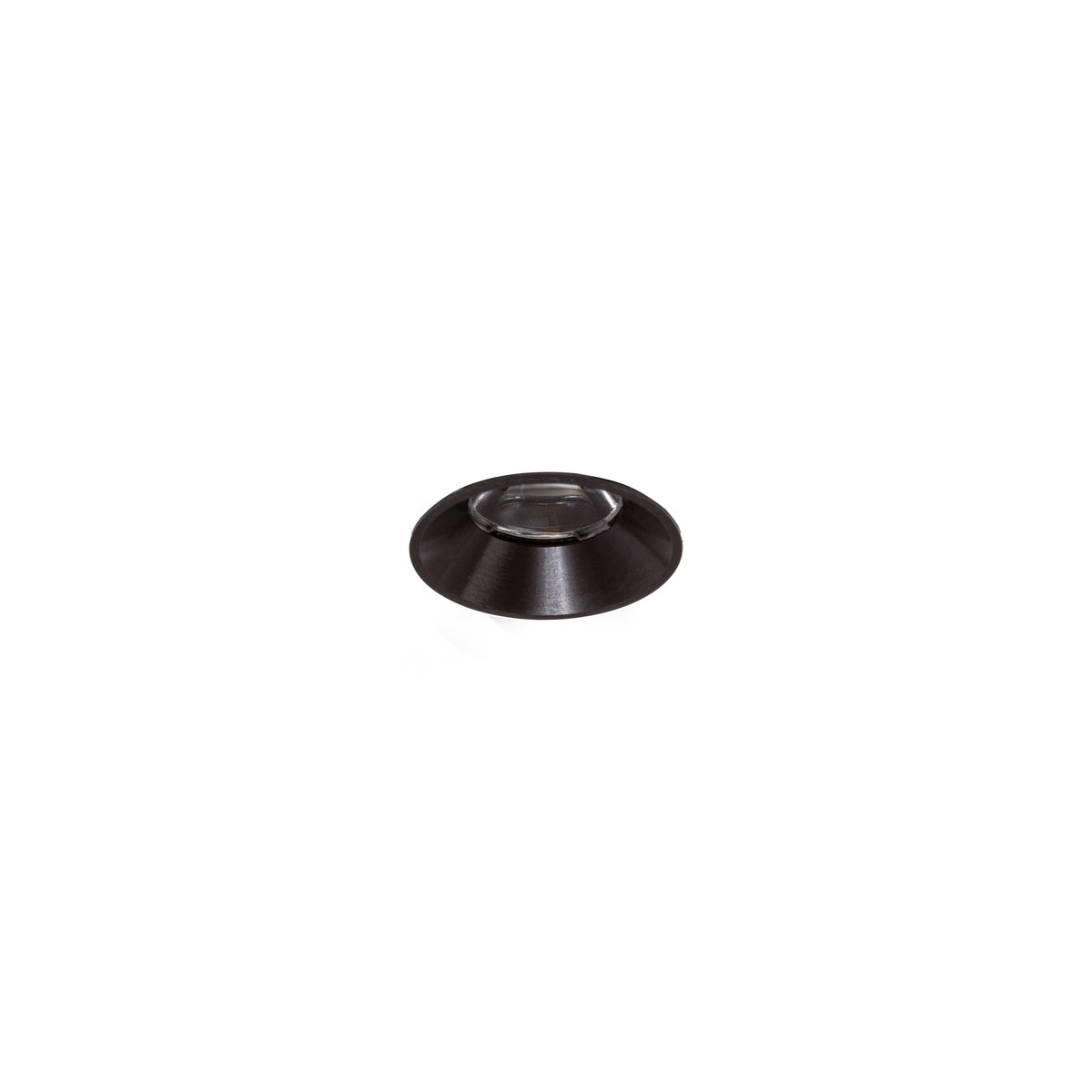

The Minim comes without a bezel as standard but a decorative bezel can be added in a range of finishes as an accessory. Any finishes not stocked can be accommodated with a short lead time. Independently tested by LUX-TSI.
Applications
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
Technical Specification
| Beam | Angle | Source | Luminaire | Power | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|
| Narrow | 19° | 90 lm | 76 lm | 1 W | 2700K | 97 Ra | IP20 | N/A | DALI/Phase cut/1-10V |
| Medium | 40° | 90 lm | 73 lm | 1 W | 2700K | 97 Ra | IP20 | N/A | DALI/Phase cut/1-10V |
| Wide | 80° | 90 lm | 70 lm | 1 W | 2700K | 97 Ra | IP20 | N/A | DALI/Phase cut/1-10V |
Accessories
-

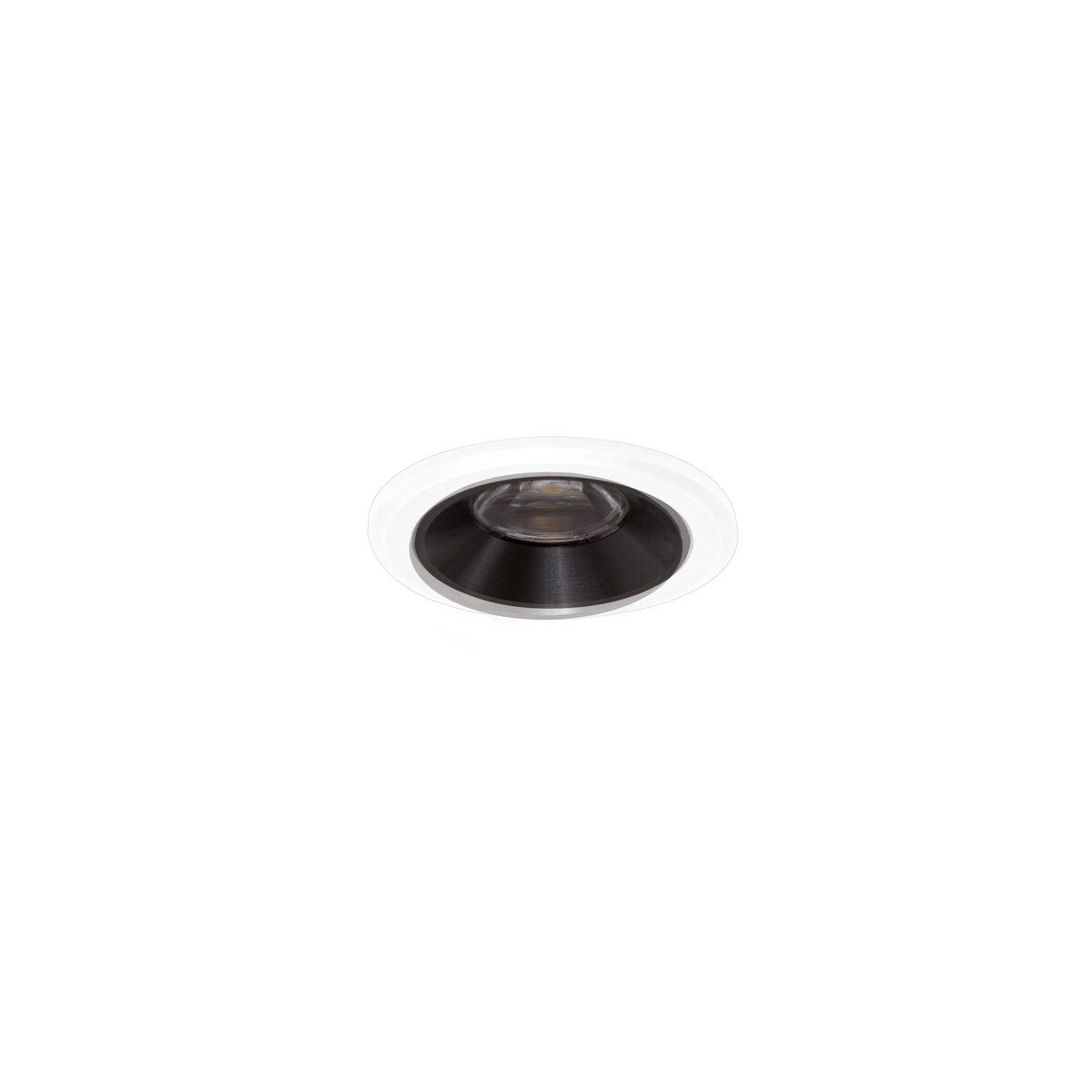

Minim Accessory Bezel White
ACMBFX011
-

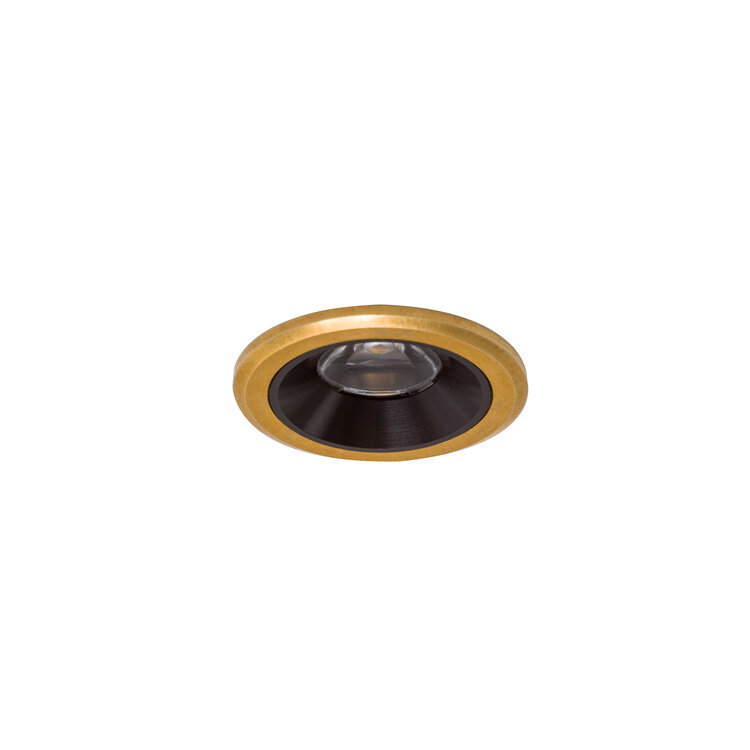

Minim Accessory Bezel Brass
ACMBFX041
-

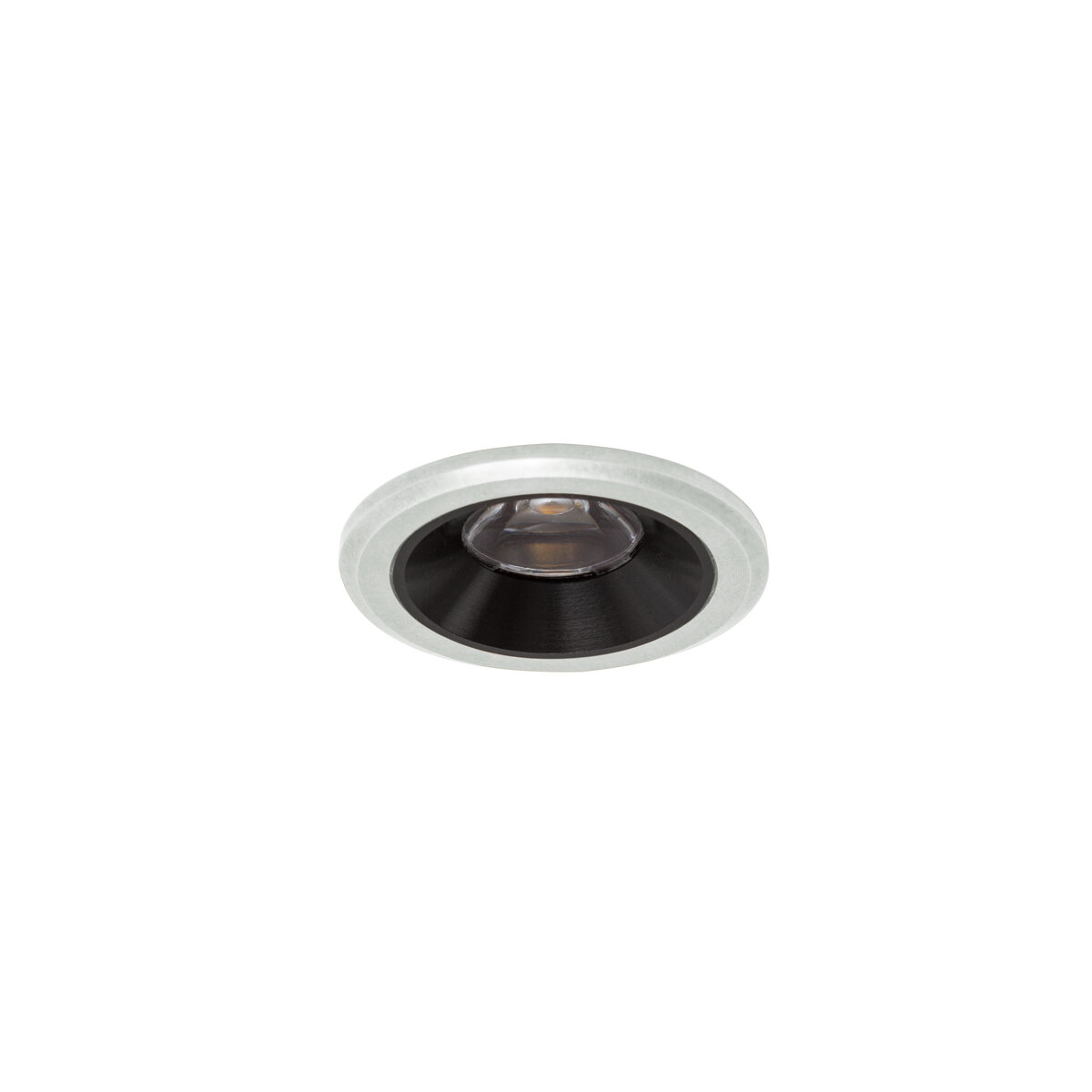

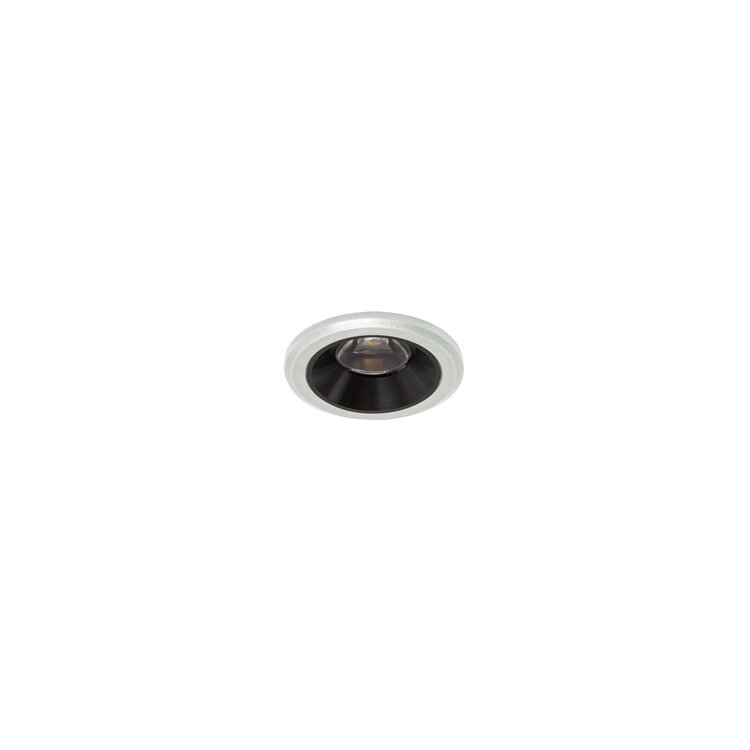

Minim Accessory Bezel Nickel
ACMBFX091
-

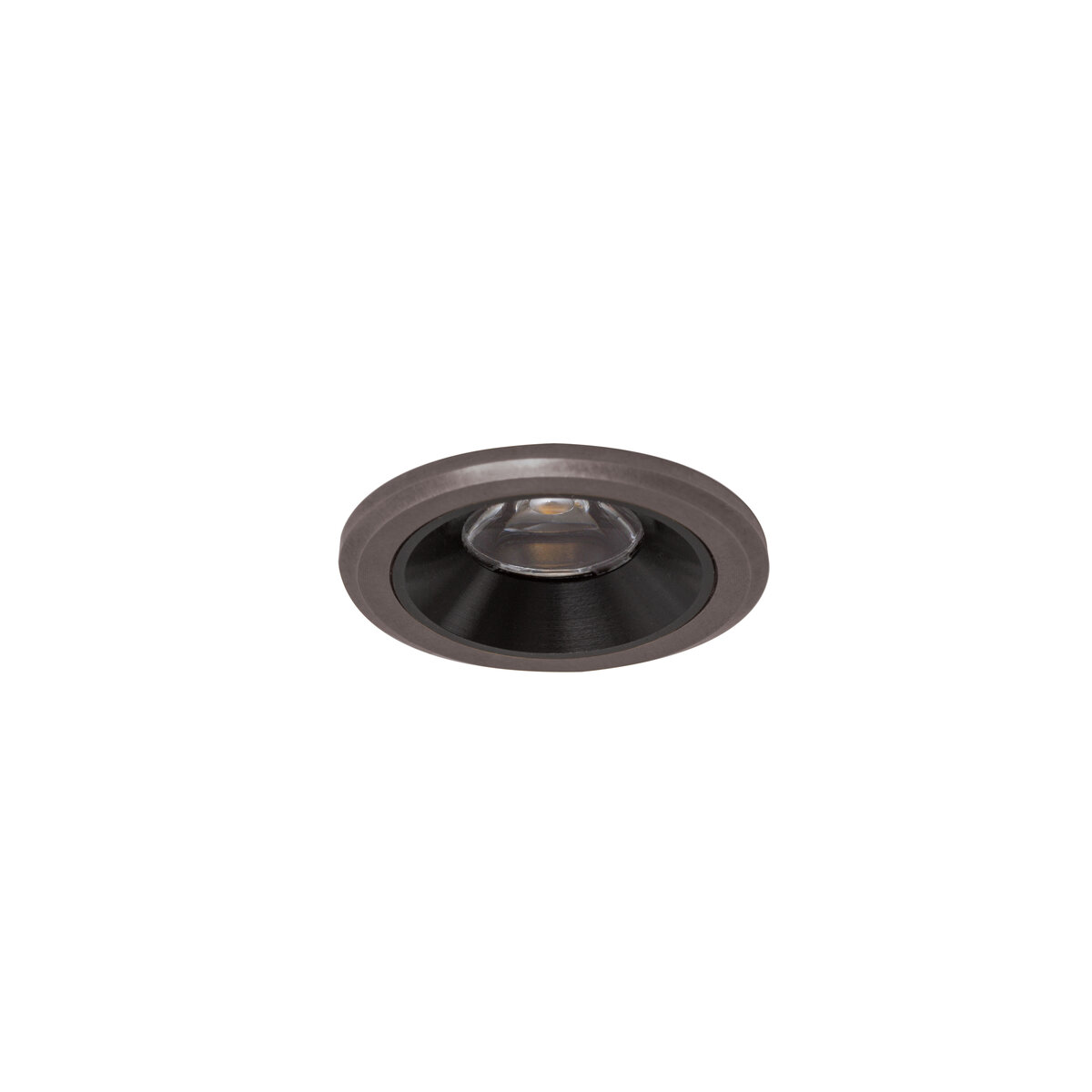

Minim Accessory Bezel Bronze
ACMBFX181
