Application
Use to create a focussed spot of downward light to a single feature.
Lucca 30 Downlight
Category
Downlights, Shelf Lights
Finishes
Description
The Lucca 30 Downlight is an energy efficient LED micro downlight. It is ideal for creating stunning downlight effects within shelving, niches and window reveals.It is IP67 rated so ideal for use both inside and out. If using inside, the warranty increases to 5 years. Fittings come with 1m of cable as standard. Custom cable lengths are available.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
A unique glass mounting method ensures optimum light output and minimal trim.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 137 | N/A | 92 | 2.3 | 700 | 2700K | 92 Ra | IP65 + IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Medium | 20° | 181 | N/A | 103 | 2.1 | 700 | 2700K | 98 Ra | IP65 + IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Wide | 36° | 181 | N/A | 111 | 2.1 | 700 | 2700K | 98 Ra | IP65 + IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |

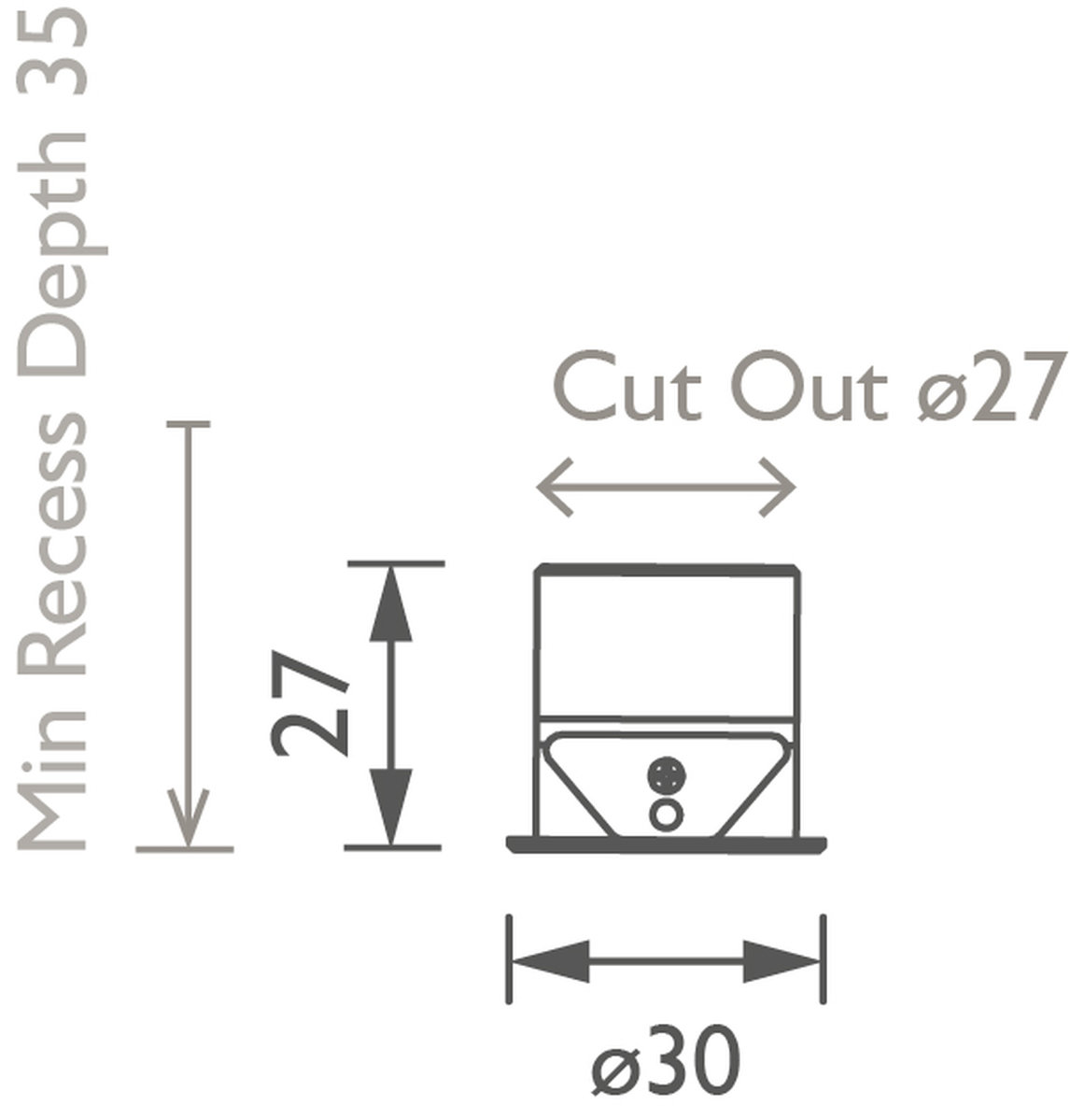

Drawings & Dimensions
Finishes
Black
Brass
Bronze Anodised
Stainless Steel
White RAL 9910
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Finish
All
Black Anodised
Brass
Bronze Anodised
Stainless Steel
White RAL 9910
Beam Angle
All
11°
20°
36°
Beam
All
Narrow
Medium
Wide

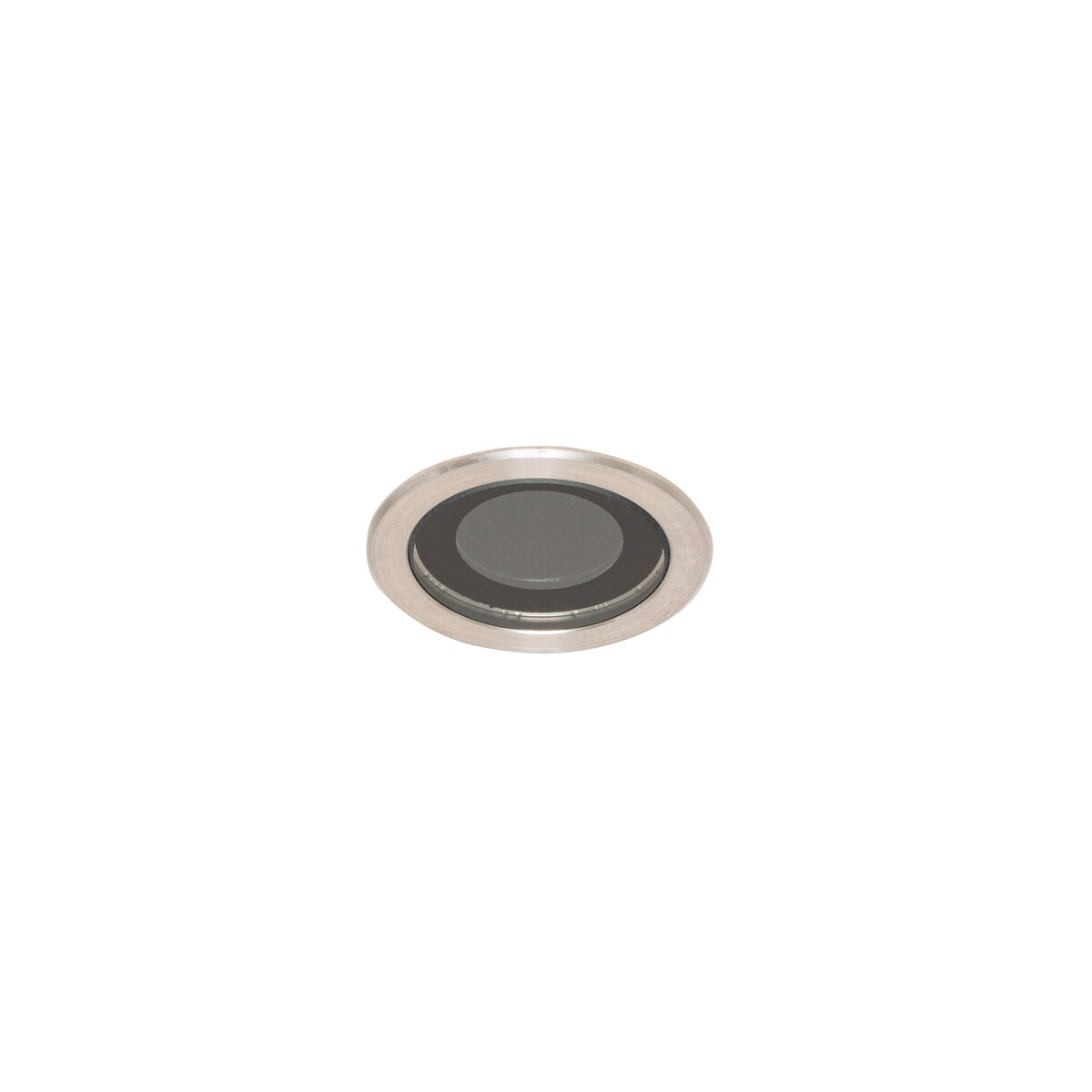

Lucca 30 Downlight Wide Stainless Steel
+ Show- Hide Product Image
Stainless Steel
36°
Wide
Lucca 30 Downlight Wide Stainless Steel

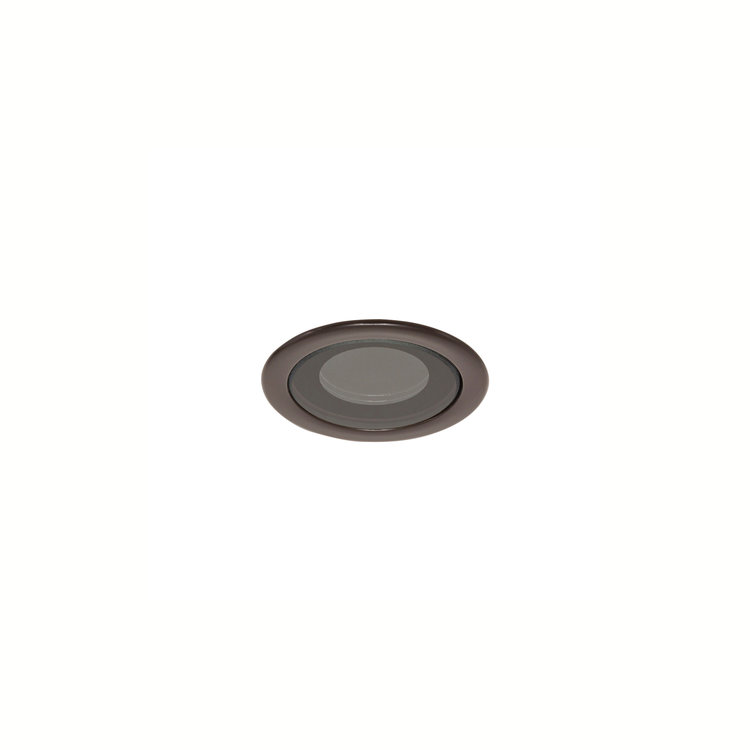

Lucca 30 Downlight Wide Bronze
+ Show- Hide Product Image
Bronze Anodised
36°
Wide
Lucca 30 Downlight Wide Bronze
Lucca 30 Downlight Wide Brass
+ Show- Hide Product Image
Brass
36°
Wide
Lucca 30 Downlight Wide Brass
Lucca 30 Downlight Wide Black
+ Show- Hide Product Image
Black Anodised
36°
Wide
Lucca 30 Downlight Wide Black
Lucca 30 Downlight Wide White
+ Show- Hide Product Image
White RAL 9910
36°
Wide
Lucca 30 Downlight Wide White
Lucca 30 Downlight Medium Stainless Steel
+ Show- Hide Product Image
Stainless Steel
20°
Medium
Lucca 30 Downlight Medium Stainless Steel
Lucca 30 Downlight Medium Bronze
+ Show- Hide Product Image
Bronze Anodised
20°
Medium
Lucca 30 Downlight Medium Bronze
Lucca 30 Downlight Medium Black
+ Show- Hide Product Image
Black Anodised
20°
Medium
Lucca 30 Downlight Medium Black
Lucca 30 Downlight Medium Brass
+ Show- Hide Product Image
Brass
20°
Medium
Lucca 30 Downlight Medium Brass
Lucca 30 Downlight Medium White
+ Show- Hide Product Image
White RAL 9910
20°
Medium
Lucca 30 Downlight Medium White
Lucca 30 Downlight Narrow Bronze
+ Show- Hide Product Image
Bronze Anodised
11°
Narrow
Lucca 30 Downlight Narrow Bronze
Lucca 30 Downlight Narrow Stainless Steel
+ Show- Hide Product Image
Stainless Steel
11°
Narrow
Lucca 30 Downlight Narrow Stainless Steel
Lucca 30 Downlight Narrow Brass
+ Show- Hide Product Image
Brass
11°
Narrow
Lucca 30 Downlight Narrow Brass
Lucca 30 Downlight Narrow White
+ Show- Hide Product Image
White RAL 9910
11°
Narrow
Lucca 30 Downlight Narrow White
Lucca 30 Downlight Narrow Black
+ Show- Hide Product Image
Black Anodised
11°
Narrow
Lucca 30 Downlight Narrow Black
