Application
Tune 50
Category
Engines, Tune 50 LED Engine
Description
Take control for your perfect mix of brightness and warmth with our Tune 50 Engine. Designed in Britain, the Tune 50 is available in a number of different CCT ranges from 2700K to 6500K to suit your project requirements. Please note all photometric data shown is @ 2700K.
Tested by Lighting Industry Association (LIA) Laboratory
Intelligent Design
Maximum control of light by fine tuning colour temperature from warm to cool white.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 20° | 866 @ 2700K | 601 lm @ 2700K | N/A | 12 | 350mA | 2700K - 6500K | >95 Ra | IP20 | DALI/Casambi | |
| Medium | 26° | 866 @ 2700K | 606 lm @ 2700K | N/A | 12 | 350mA | 2700K - 6500K | >95 Ra | IP20 | DALI/Casambi | |
| Wide | 35° | 866 @ 2700K | 606 lm @ 2700K | N/A | 12 | 350mA | 2700K - 6500K | >95 Ra | IP20 | DALI/Casambi | |
| Super Wide | 48° | 866 @ 2700K | 648 lm @ 2700K | N/A | 12 | 350mA | 2700K - 6500K | >95 Ra | IP20 | DALI/Casambi |

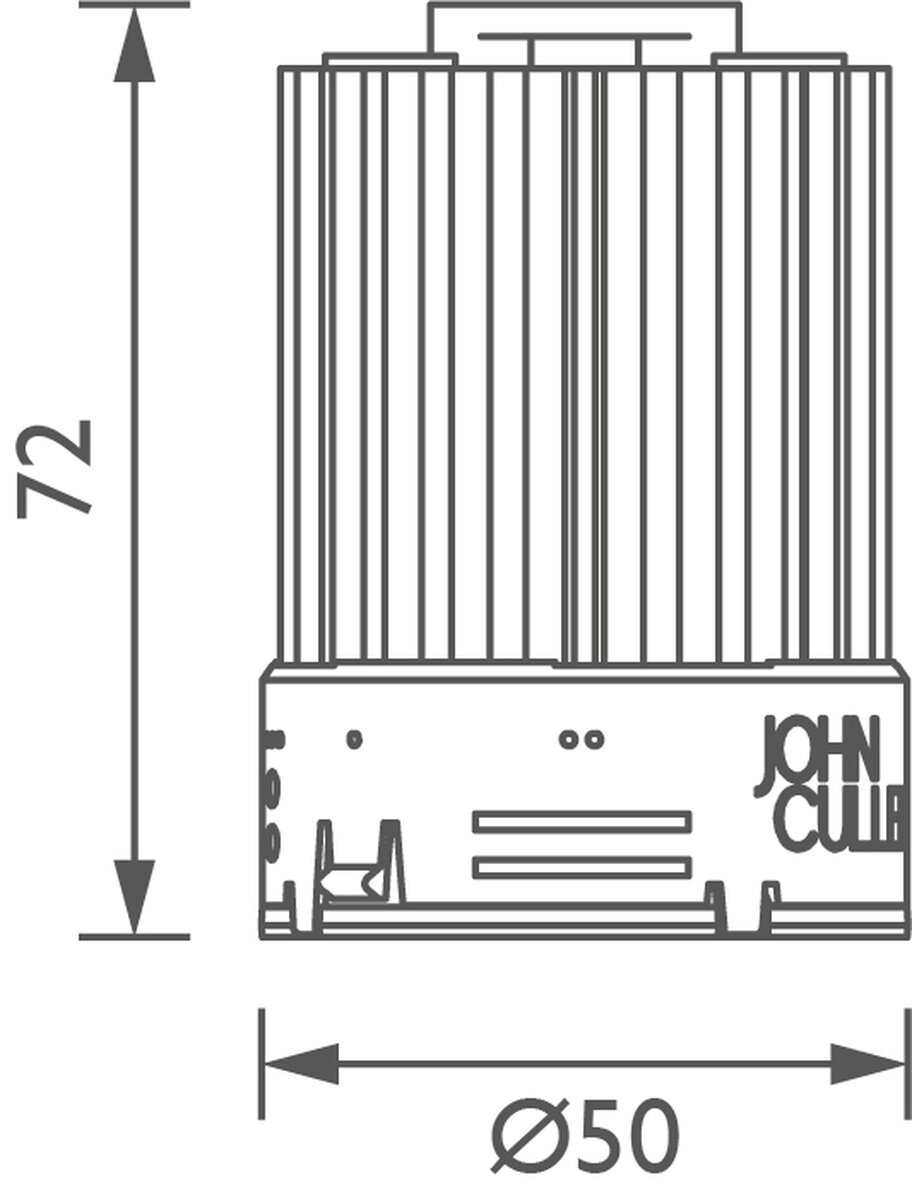

Drawings & Dimensions
Finishes
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
20°
26°
35°
48°
Beam
All
Narrow
Medium
Wide
Super Wide
Tune 50 Wide 2700 – 6500K
+ Show- Hide Product Image
35°
Wide
Tune 50 Wide 2700 – 6500K
Tune 50 Super Wide 2700 – 6500K
+ Show- Hide Product Image
48°
Super Wide
Tune 50 Super Wide 2700 – 6500K
Tune 50 Narrow 2700 – 6500K
+ Show- Hide Product Image
20°
Narrow
Tune 50 Narrow 2700 – 6500K
Tune 50 Medium 2700 – 6500K
+ Show- Hide Product Image
26°
Medium
Tune 50 Medium 2700 – 6500K
