Square 50 IP Downlight

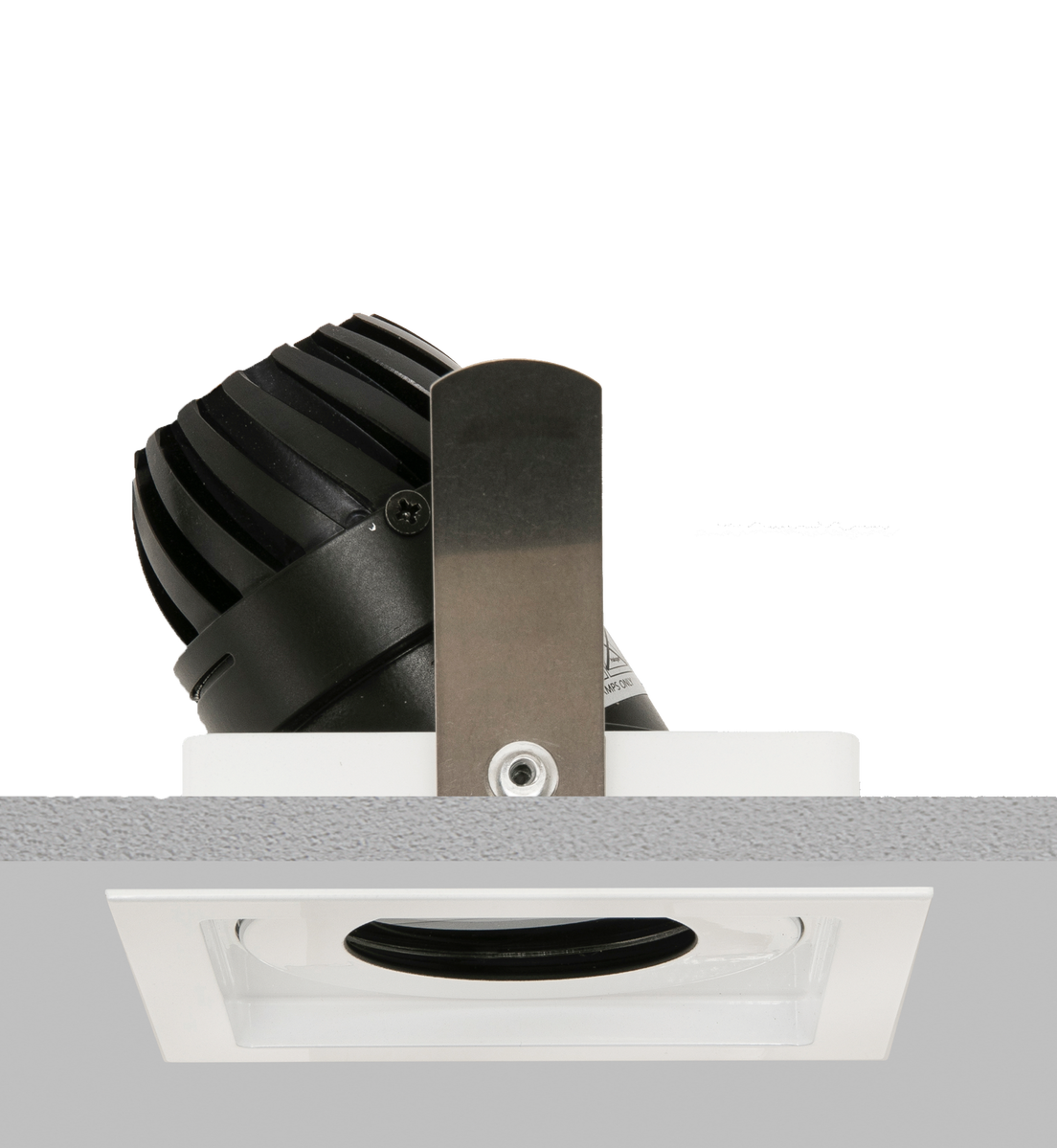

Our Square 50 IP rated LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for wet areas and for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees. It comes in trim and trimless versions.
The Square 50 now comes with four different LED engines: Pure 50, AmbiDim 50, True 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a patented twist and lock LED engine mount and plug in LED driver for interchangeable components on site with no hand tools required. A narrow 22° and wide 33° beam is available on special request.
Applications
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 1231 lm | 591 lm | 12W | 46° | 2700K | 98 Ra | IP54 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
| 1163 lm | 708 lm | 12W | 26° | 2700K | 98 Ra | IP54 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
| 925 lm | 701 lm | 12.8W | 16° | 2700K | 98 Ra | IP54 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
| 491 lm | 701 lm | 7W | 13° | 2700K | 98 Ra | IP54 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
Downloads
- Square_Trim_50_Medium_2700.ldt (.ldt)
- Square_Trim_50_Medium_2700.ies (.ies)
- Square_IP_Trim_50_Installation_Guide.pdf (.pdf)
- Square_Trim_50_Narrow_2700.ldt (.ldt)
- Square_Trim_50_Narrow_2700.ies (.ies)
- Square_Trim_50_Wide_2700.ldt (.ldt)
- Square_Trim_50_Wide_2700.ies (.ies)
- Square_50_IP_24_04_23.pdf (.pdf)
Accessories
-
Honeycomb Insert 50mm
ACHC50MM1
-
Intumescent Firehood Small
ACFHXXSM1
-
Sandblasted Glass Lens 50mm
ACSG50MM1
-
Softening Lens 50mm
ACSL50MM2
-
Spreader Lens 50mm
ACLL50MM1
