Polespring 40

Category
Downlights, Polespring 40
Finishes
Description

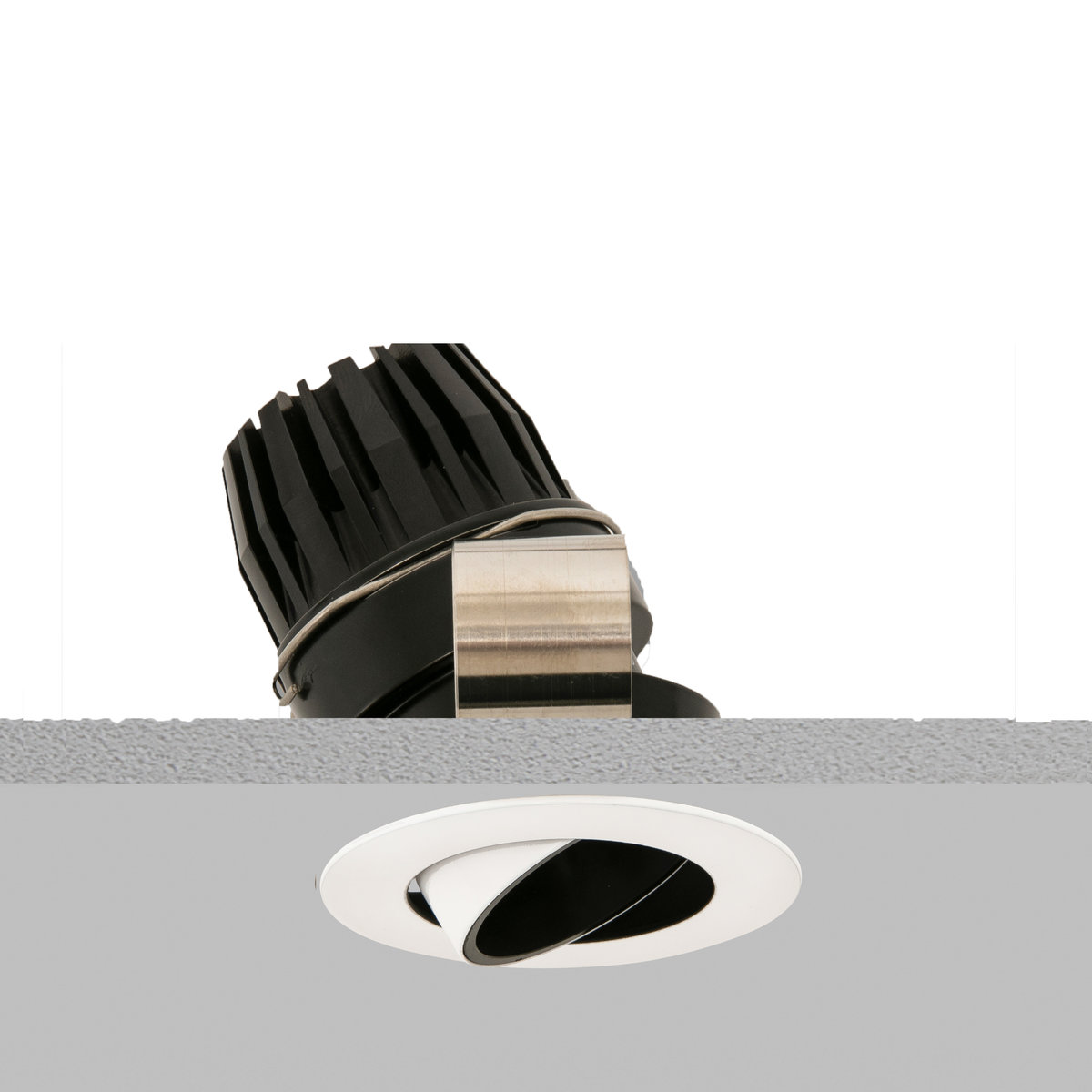

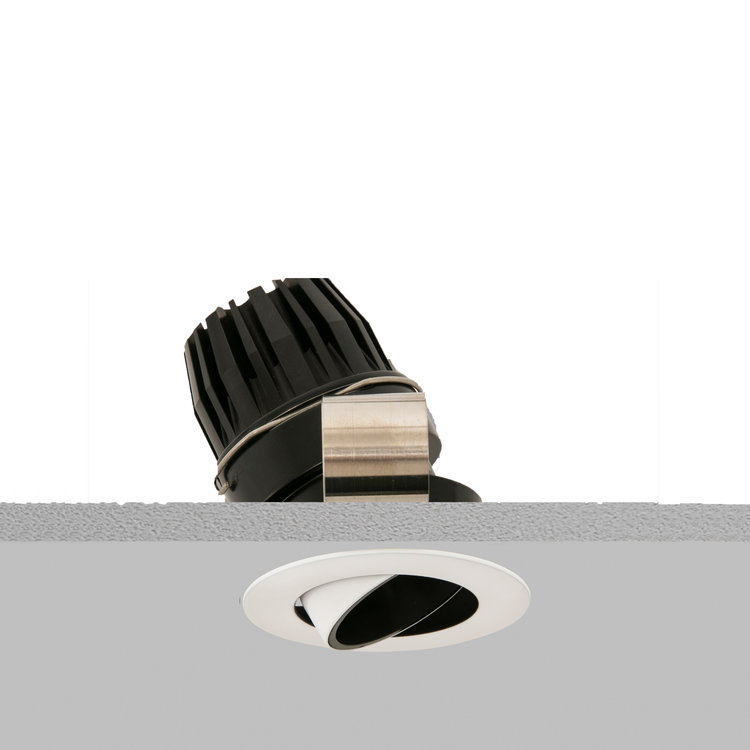

Our flagship Polespring 40 has been upgraded with an increased aperture delivering market-leading performance in this smaller fitting. New “clip-fit” mechanics create a modular design for a more sustainable product. The standard white finish is now a textured matt RAL9003. The fitting still comes with the 30° tilt and extra deep 25mm black baffle to minimise glare.

It comes as standard with the Pure 40 engine and a tool less plug for connecting the LED driver. NB: The cut-out of this product has increased to 54MM.

Tested by LUX-TSI
Application
Accessories & variable optics allow for you to achieve tight focus to features, or for broader washes of light, reflecting off vertical surfaces.
Intelligent Design
Often copied but never surpassed. Superior light output and quality whilst keeping glare to a minimum.
Technical Specifications
Beam Beam Angle Source Engine Luminaire Power Supply CCT CRI IP Fire Rated Dimmable
Spot 8.5° 486 lm 362 lm 210 lm 6.6W 350mA 2700K 98 Ra IP54 (Front Face) Yes DALI/Phase cut/1-10V
Narrow 10° 680 lm 584 lm 362 lm 9W 500mA 2700K 98 Ra IP54 (Front Face) Yes DALI/Phase cut/1-10V
Medium 21° 680 lm 584 lm 361 lm 9W 500mA 2700K 98 Ra IP54 (Front Face) Yes DALI/Phase cut/1-10V
Wide 30° 680 lm 658 lm 407 lm 9W 500mA 2700K 98 Ra IP54 (Front Face) Yes DALI/Phase cut/1-10V
SuperWide 47° 680 lm 664 lm 377 lm 9W 500mA 2700K 98 Ra IP54 (Front Face) Yes DALI/Phase cut/1-10V

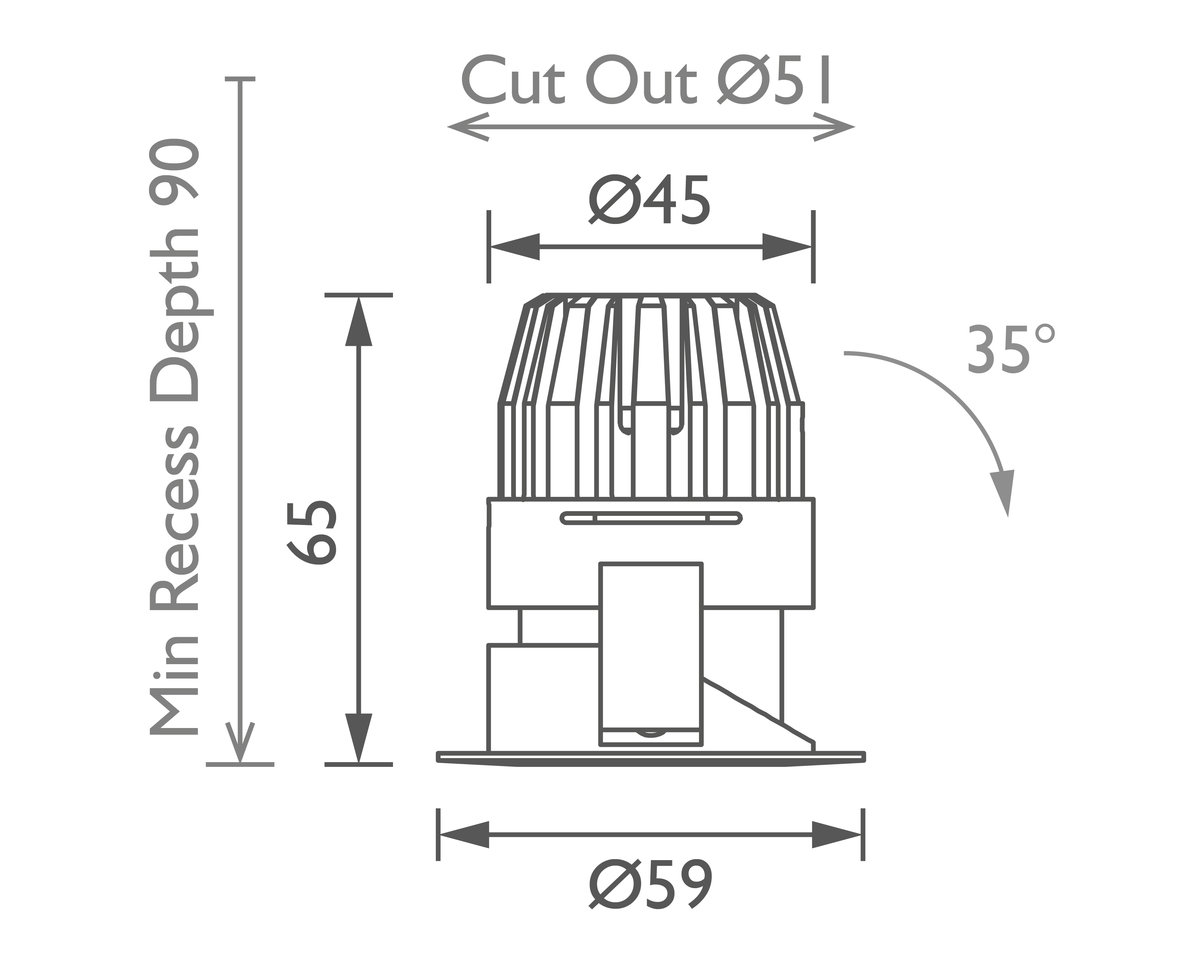

Drawings & Dimensions
Finishes
White RAL 9003 Textured
Accessories
Technical Download
