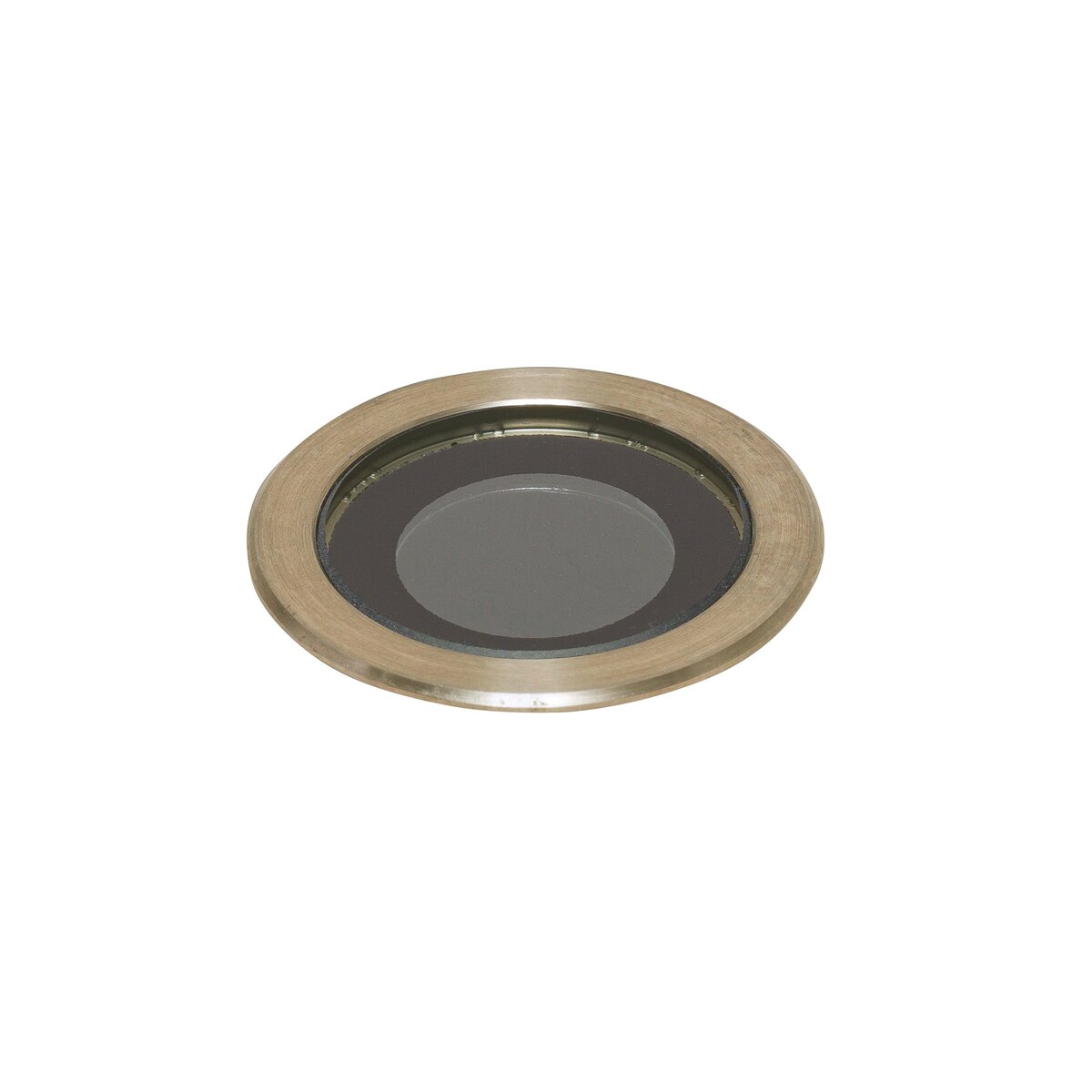

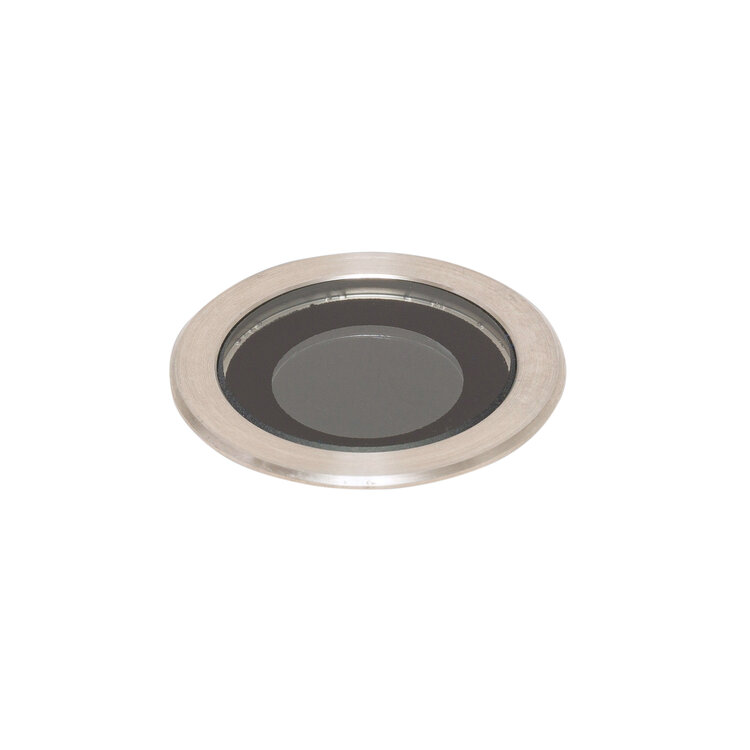

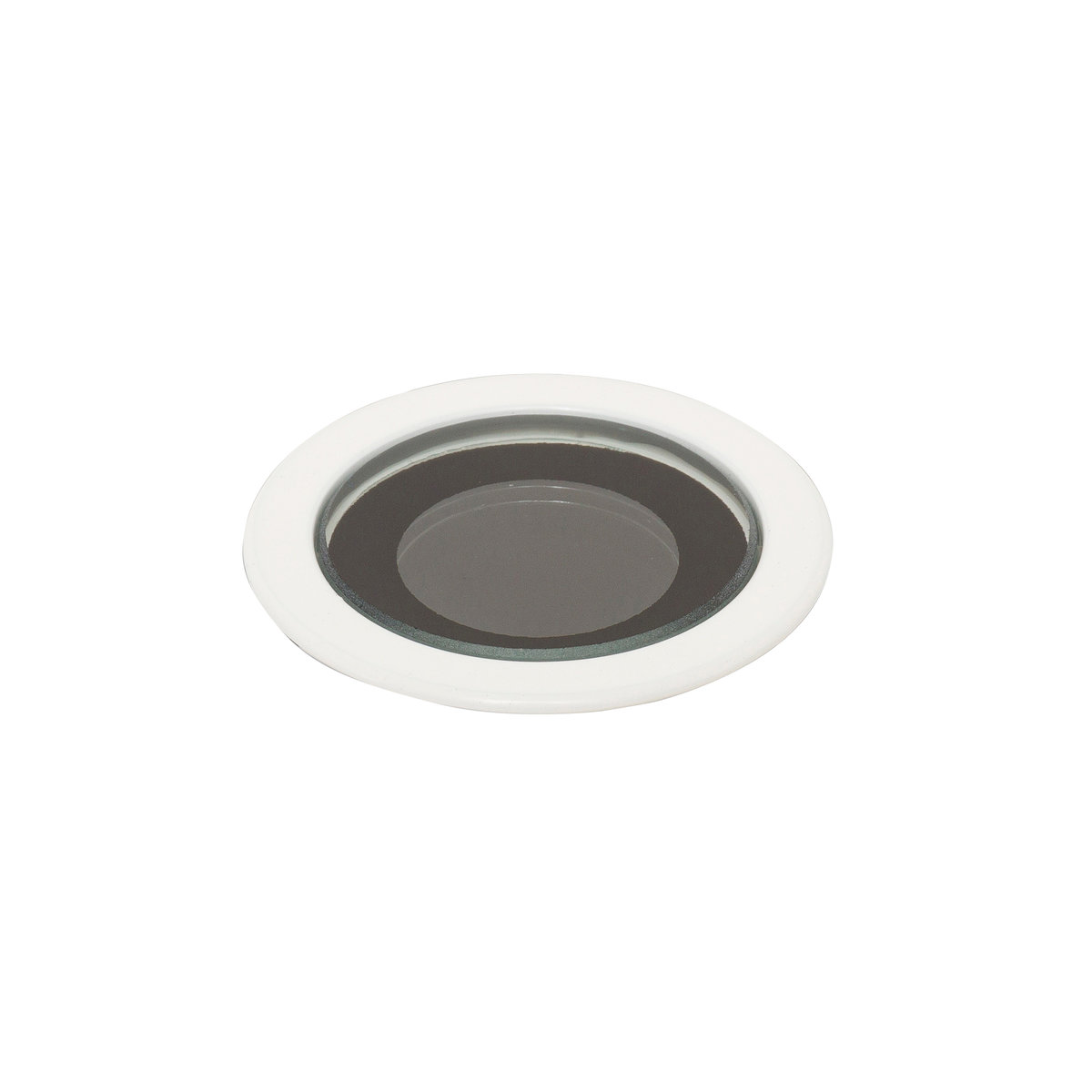

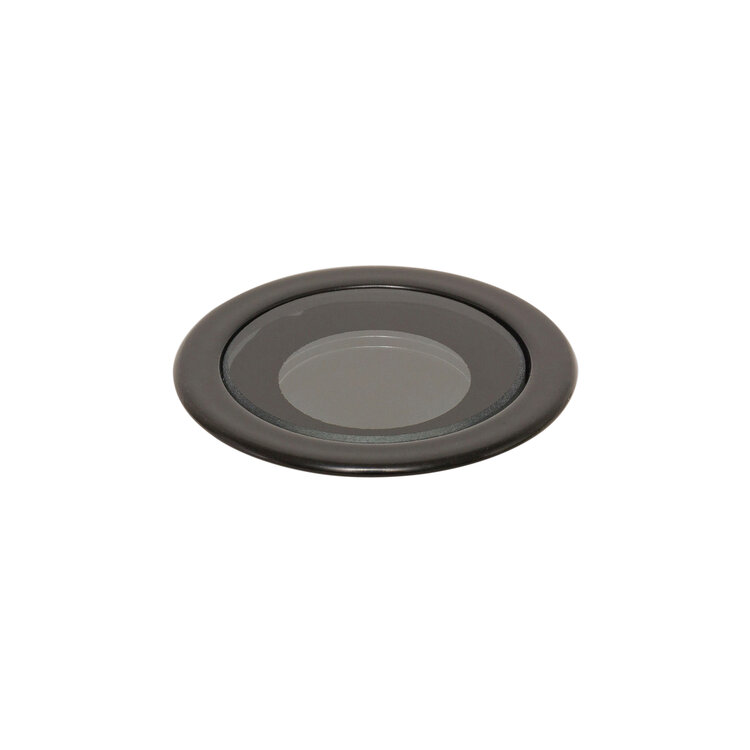

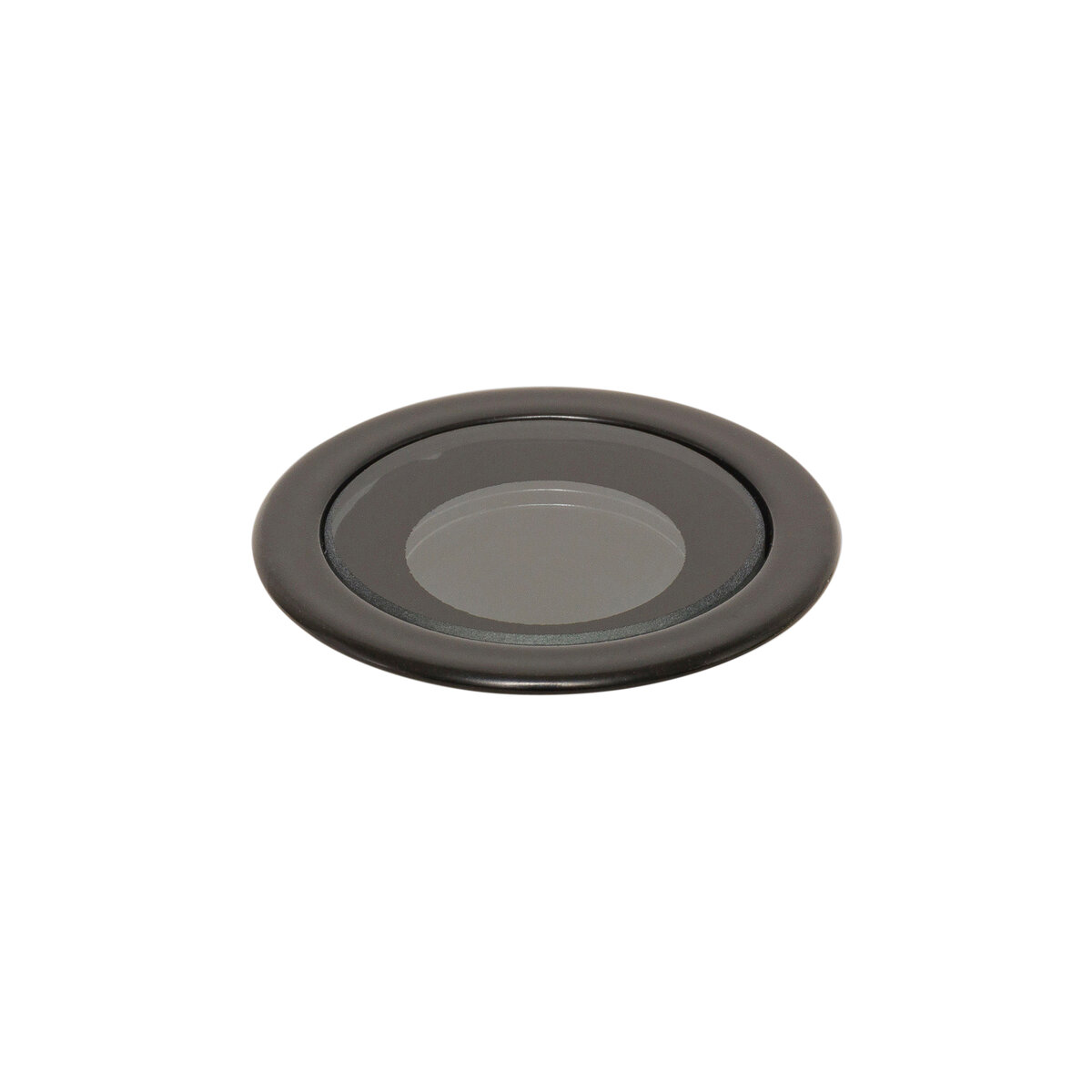

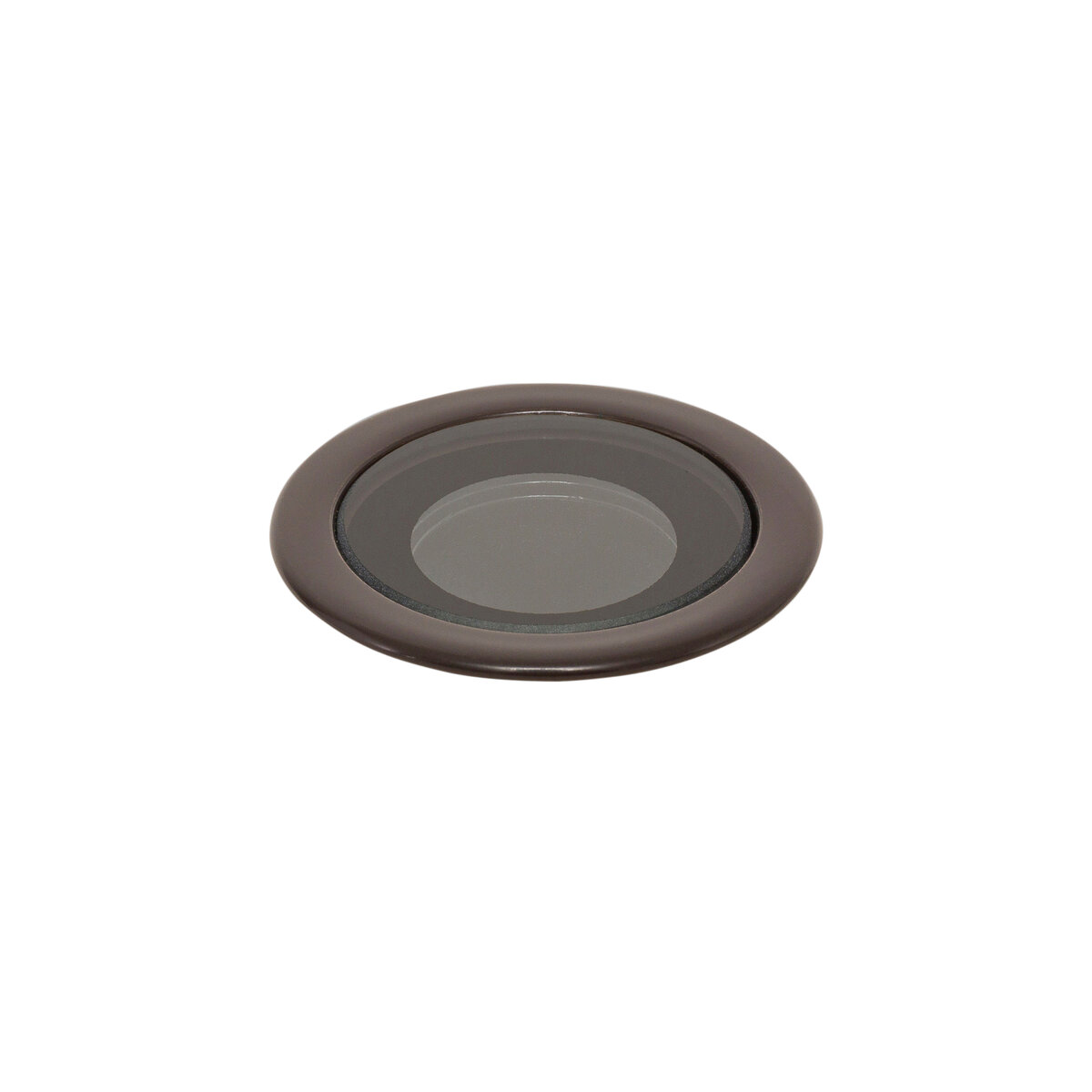

Lucca 40 Uplight
The Lucca 40 is an energy efficient LED mid-sized uplight. It is ideal for creating stunning uplighting effects to columns, arches, window reveals and exterior walls where heat is an issue.
It is IP67 rated so ideal for use both inside and out. Available in narrow, medium and wide distributions, with additional elliptical and asymmetric variants for wall grazing and wall washing. Available both as a trim or trimless version. Trimless fittings come with a burial tube as standard. Independently tested by the LIA.






Applications
Technical Specification
Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
---|---|---|---|---|---|---|---|---|---|
108.4 lm | 1.5W | Elliptical | 2700K | >90 Ra | IP67 | DALI/Phase cut/1-10V | No | ||
108.4 lm | 1.5W | Asymmetric | 2700K | >90 Ra | IP67 | DALI/Phase cut/1-10V | No | ||
108.4 lm | 58 lm | 1.5W | 34° | 2700K | >90 Ra | IP67 | DALI/Phase cut/1-10V | No | |
108.4 lm | 74 lm | 1.5W | 27° | 2700K | >90 Ra | IP67 | DALI/Phase cut/1-10V | No | |
108.4 lm | 87 lm | 1.5W | 11° | 2700K | >90 Ra | IP67 | DALI/Phase cut/1-10V | No |
Accessories
-
IP66 enclosure for Driver Large
ACENIPLRG
-
IP66 enclosure for Driver Small
ACENIPSML
-
Lucca 40 Glare Cowl
ACL4GCXX1
-
Lucca 40 Trim Burial Sleeve
ACL4TRS1
-
2m Silicone Cable Extension Kit
ACXXEC2M1
-
4m Silicone Cable Extension Kit
ACXXEC4M1
-
6m Silicone Cable Extension Kit
ACXXEC6M1
-
In-House Assembly of 2m Extended Silicone Cable
ASIHEC2M1
-
In-House Assembly of 4m Extended Silicone Cable
ASIHEC4M1
-
In-House Assembly of 6m Extended Silicone Cable
ASIHEC6M1
