Application
The highest quality and most discreet recessed steplight option - set close to horizontal surfaces to add dramatic shafts of light across steps
Lucca 30 Steplight
Category
Step Lights
Finishes
Description
The new Lucca 30 is an energy efficient LED miniature steplight incorporating new ProVent technology which minimises condensation and improves robustness. Built for the circular economy, the LED engine is now fully serviceable. It is ideal for creating stunning skimming light across steps. It comes with narrow, medium or wide beams to suit your projects with or without a glare cowl. This product can also be used as a downlight.
It is IP67 rated so ideal for use both inside and out. Fittings come with 1m of cable as standard. Custom cable lengths are available upon request. If using inside, the warranty increases to 5 years.
Tested by LCS Compliance Testing Laboratory
Intelligent Design
A UNIQUE GLASS MOUNTING METHOD ENSURES OPTIMUM LIGHT OUTPUT WITH MINIMAL TRIM, WHILE OUR NEW PROVENT™ TECHNOLOGY ALLOWS AIR TO CYCLE IN AND OUT OF THE FITTING TO PREVENT CONDENSATION.
Technical Specifications
| Beam | Beam Angle | Source | Engine | Luminaire | Power | Supply | CCT | CRI | IP | Fire Rated | Dimmable |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Narrow | 11° | 137 | N/A | 92 | 2.3 | 700 | 2700K | 92 Ra | IP65 + IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Medium | 20° | 181 | N/A | 103 | 2.1 | 700 | 2700K | 98 Ra | IP65 + IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |
| Wide | 36° | 181 | N/A | 111 | 2.1 | 700 | 2700K | 98 Ra | IP65 + IP67 | N/A | DALI/Mains (Phase)/0-10V/Casambi/Non-Dim |

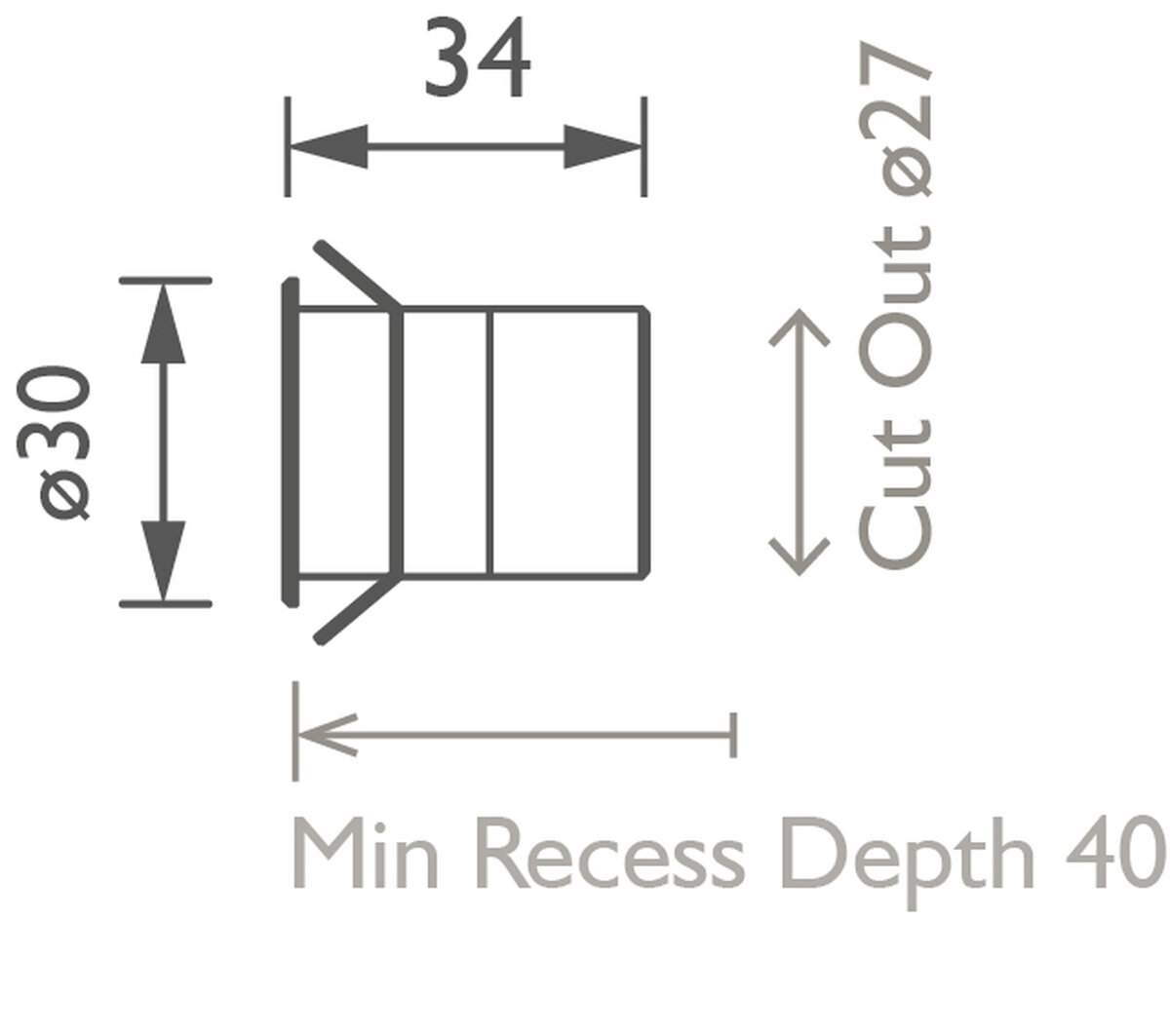

Drawings & Dimensions
Finishes
Black Anodised
Brass

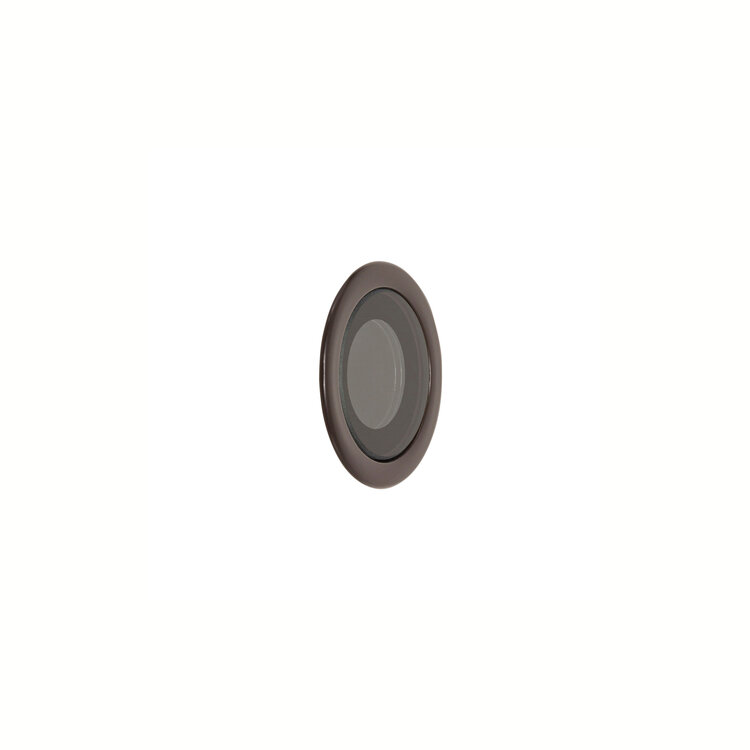

Bronze Anodised

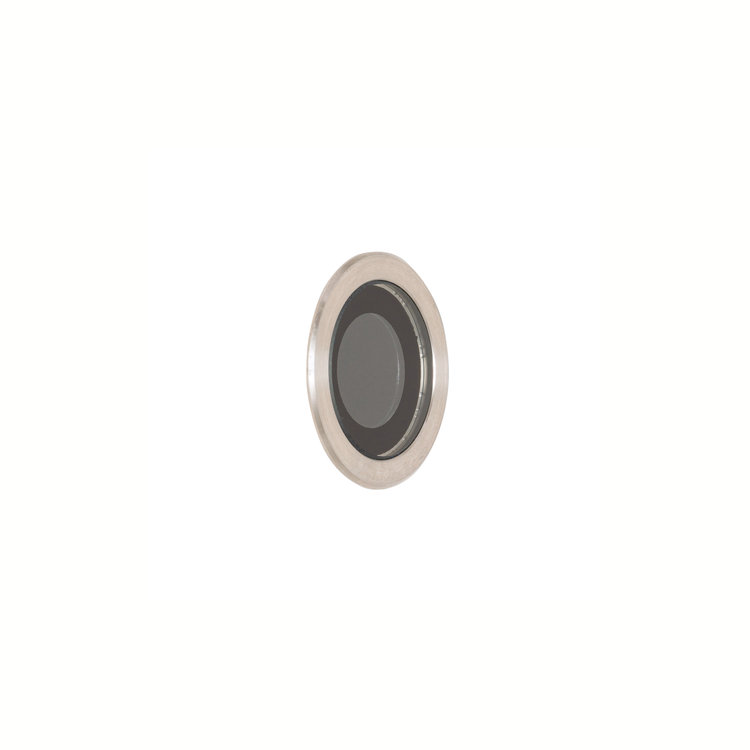

Stainless Steel

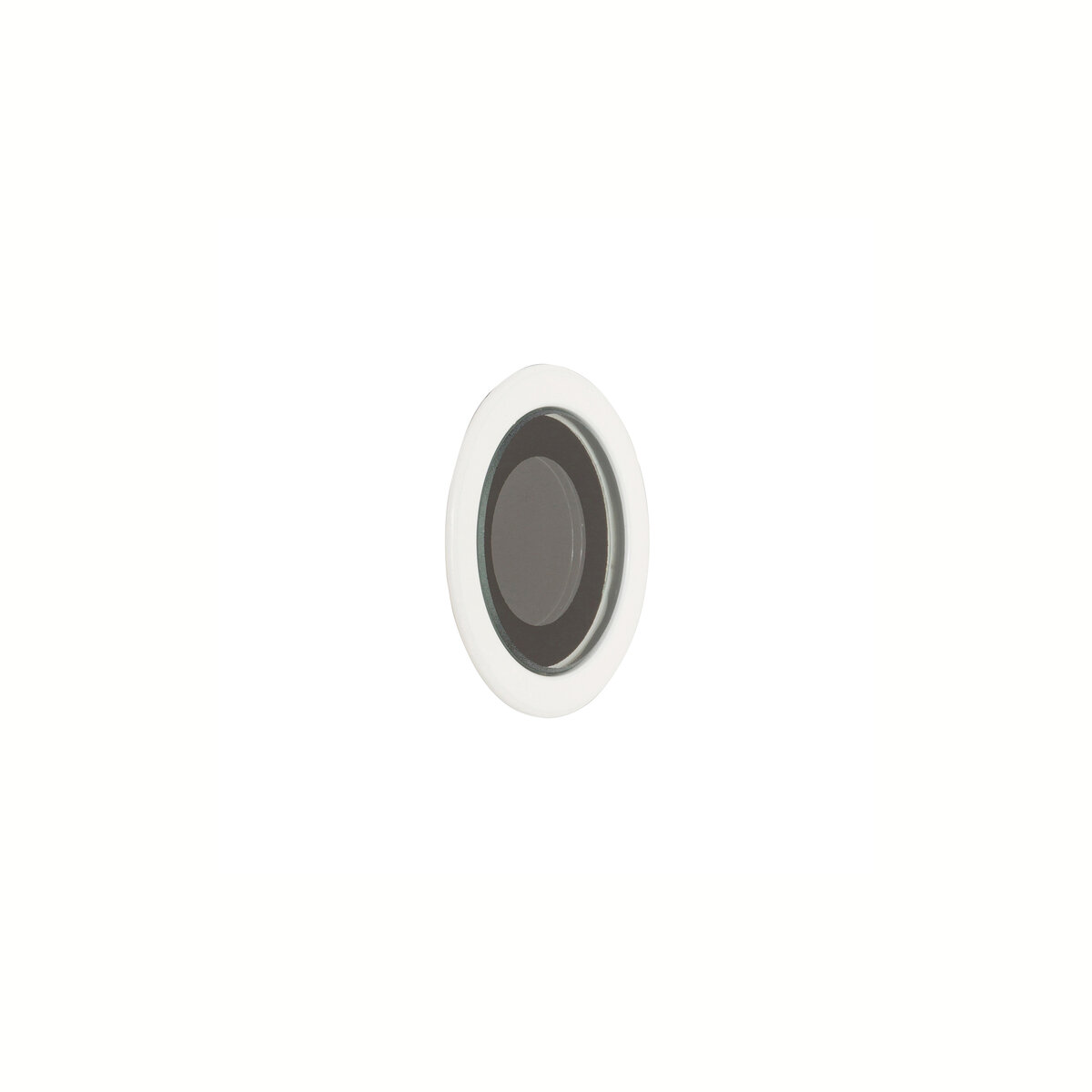

White RAL 9910
Accessories
Technical Download
