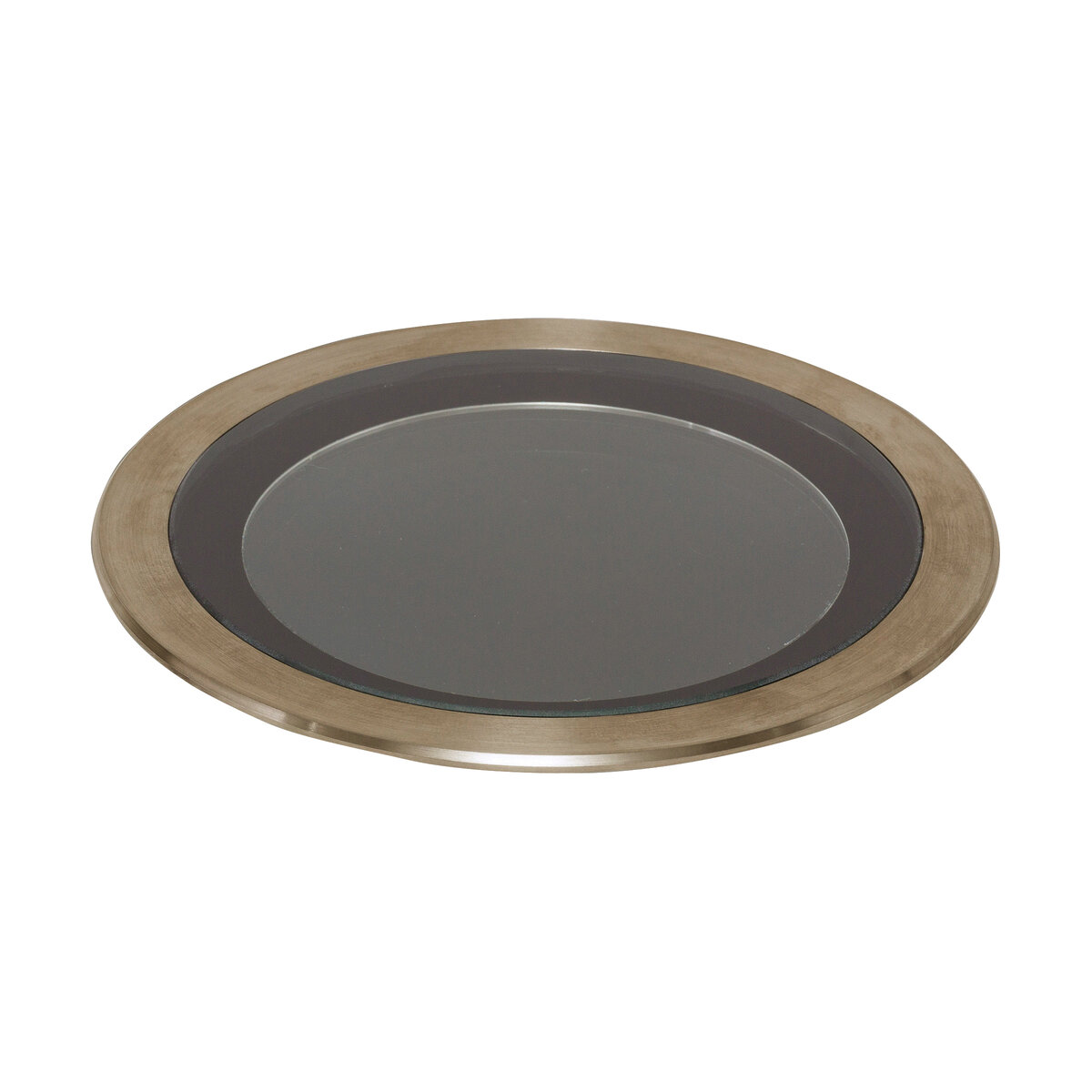

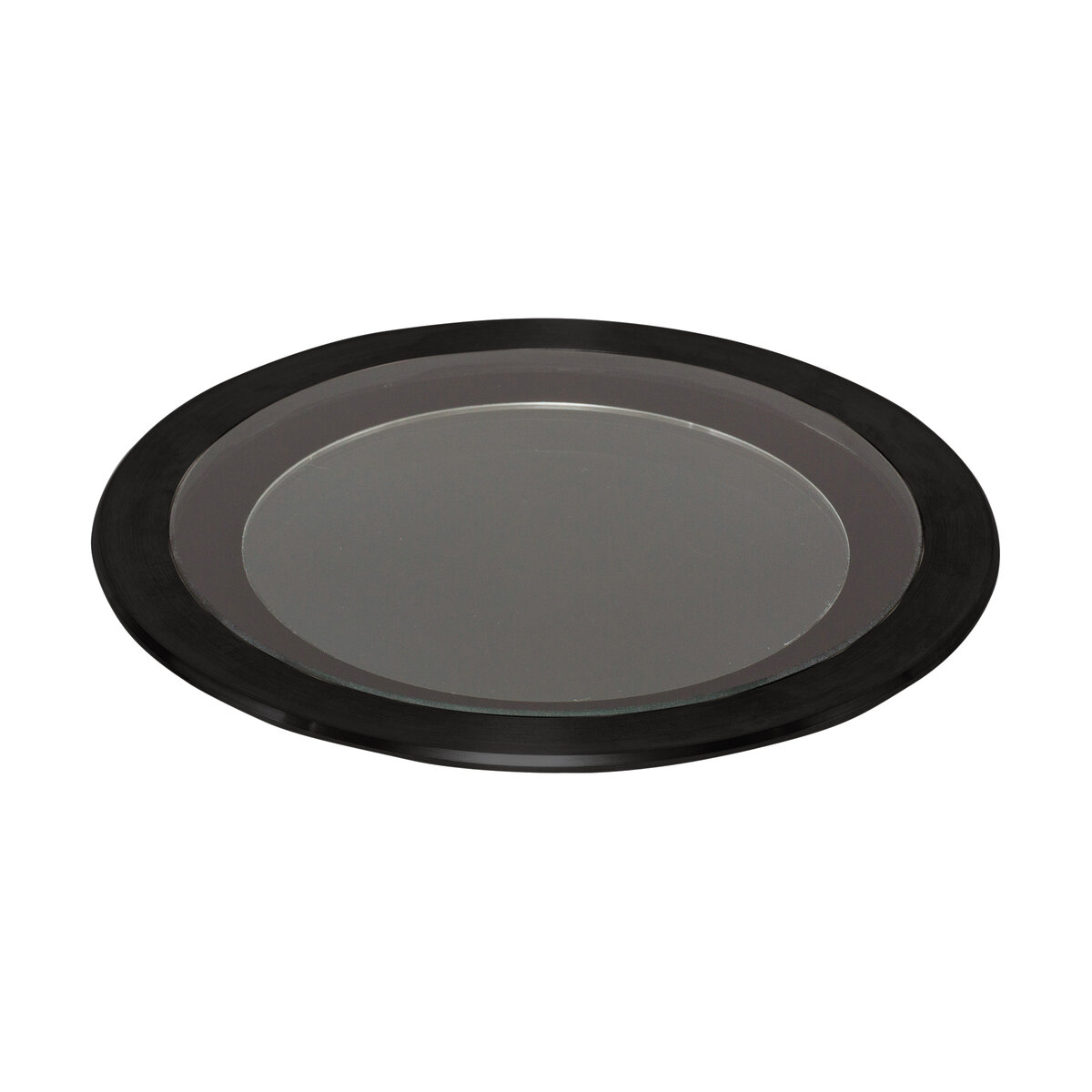

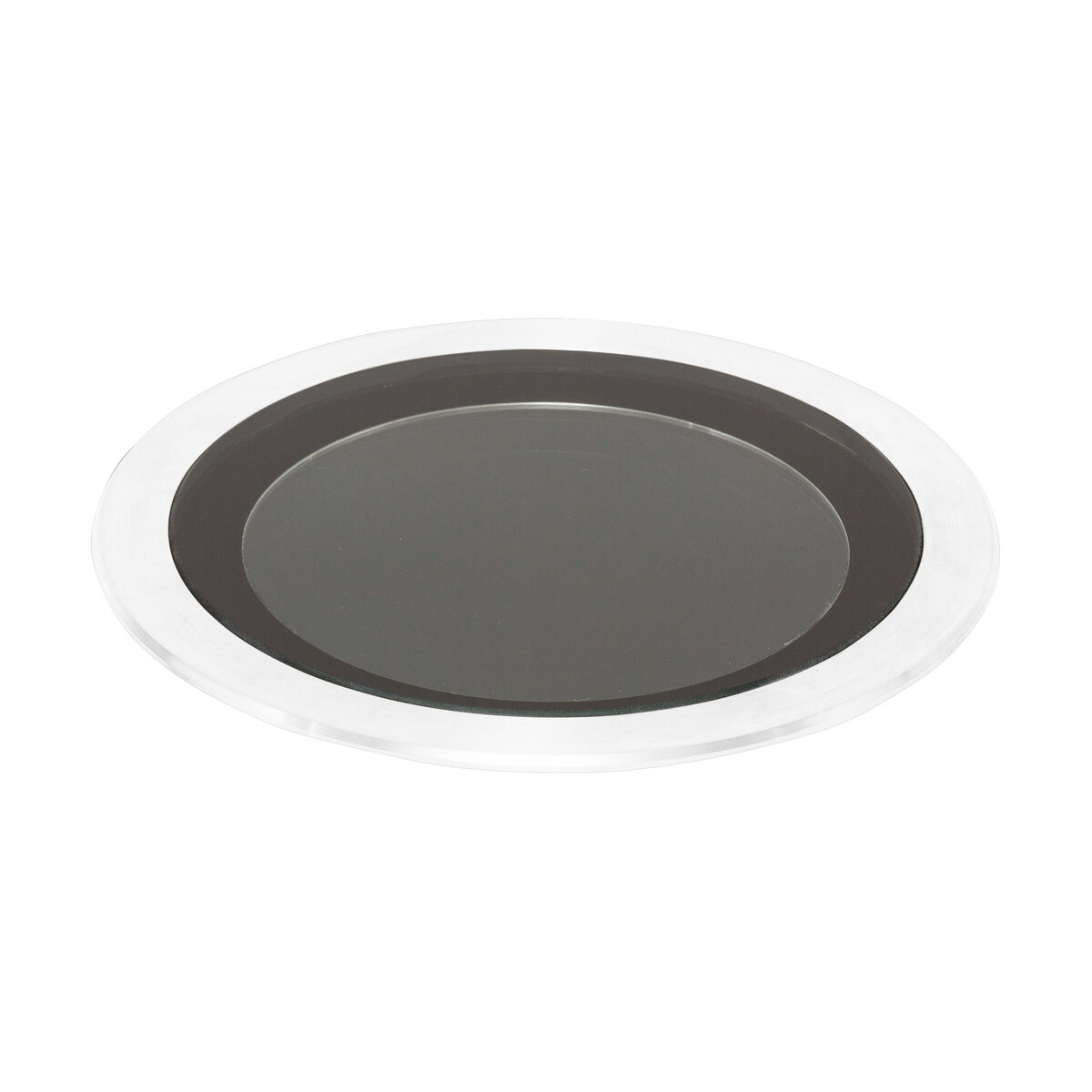

Lucca 120
The Lucca 120 is an energy efficient LED maxi uplight. This large uplight is ideal for creating stunning uplighting effects to larger features such as trees or large columns across facades and gardens.
It is IP67 rated so ideal for use both inside and out. Available in narrow, medium and wide distributions, with additional elliptical and asymmetric variants for wall grazing and wall washing. Available both as a trim or trimless version. Trimless fittings come with a burial tube as standard.






Applications
Technical Specification
Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
---|---|---|---|---|---|---|---|---|---|
1026 lm | Elliptical | 2700K | >98 Ra | IP67 | DALI/Phase cut/1-10V | No | |||
1026 lm | Asymmetric | 2700K | >98 Ra | IP67 | DALI/Phase cut/1-10V | No | |||
1026 lm | 858 lm | 11.5W | 9° | 2700K | >98 Ra | IP67 | DALI/Phase cut/1-10V | No | |
1026 lm | 32° | 2700K | >98 Ra | IP67 | DALI/Phase cut/1-10V | No | |||
1026 lm | 22° | 2700K | >98 Ra | IP67 | DALI/Phase cut/1-10V | No |
Accessories
-
IP66 enclosure for Driver Large
ACENIPLRG
-
IP66 enclosure for Driver Small
ACENIPSML
-
Lucca 120 Glare Cowl
ACLXGCXX1
-
Lucca 120 Trim Burial Sleeve
ACLXTRS1
