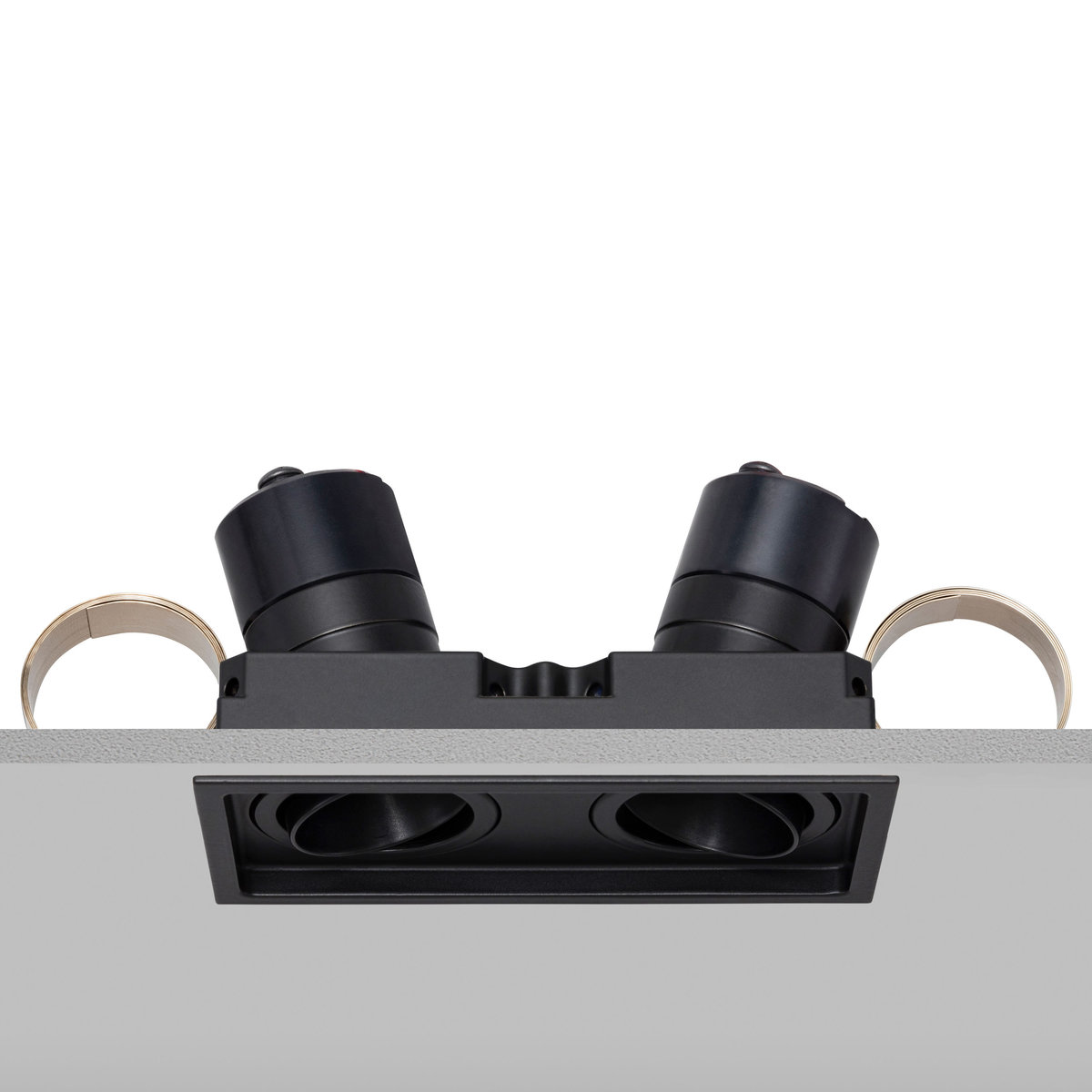

Square Double Trim 30 Downlight

    Our Square Double 30 LED downlight uses an extra slim-line bezel with a deep dual black baffle system to help reduce glare. The Square Double 30 LED downlight also features a unique concealed ceiling ring for easy lamp changing.

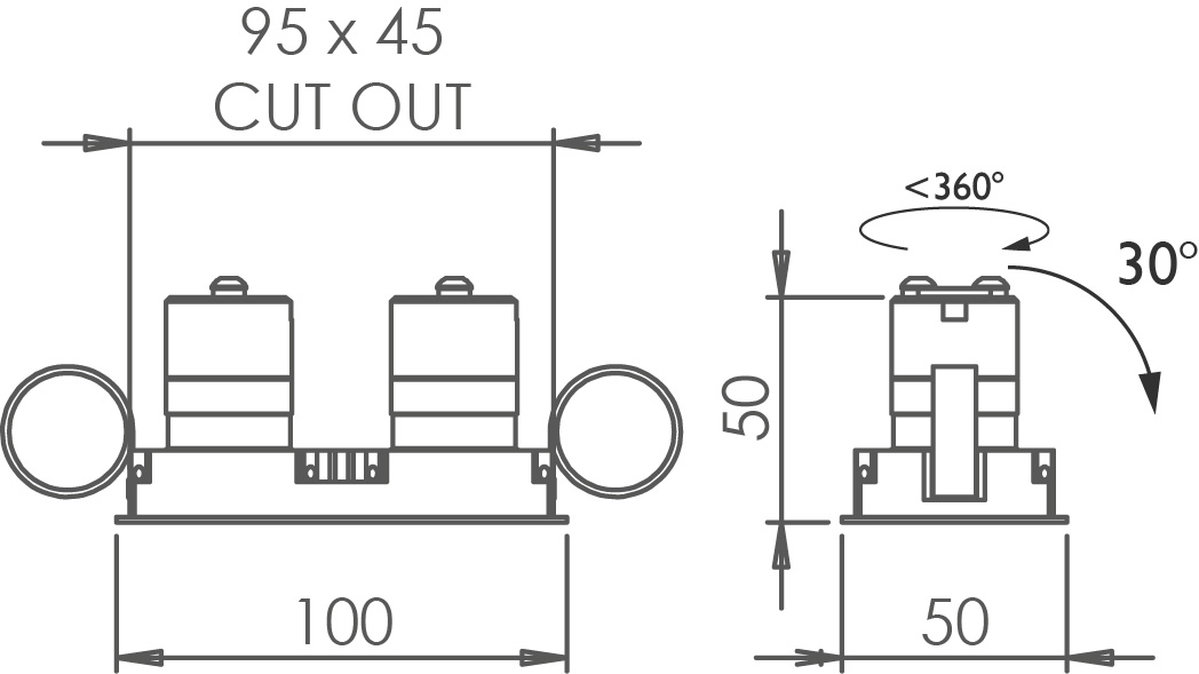

    This downlight is suitable for plasterboard ceilings and can tilt up to 30 degrees and rotate a full 360 degrees.

    Available August 2019.

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    700 lm 620 lm 7.8W 26° 2700K >90 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    700 lm 620 lm 7.8W 26° 3000K >90 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    720 lm 630 lm 7.8W 10° 2700K >90 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    720 lm 630 lm 7.8W 10° 3000K >90 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    700 lm 610 lm 7.8W 46° 2700K >90 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    700 lm 610 lm 7.8W 46° 3000K >90 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
