Square Double 50+ Trimless IP Downlight

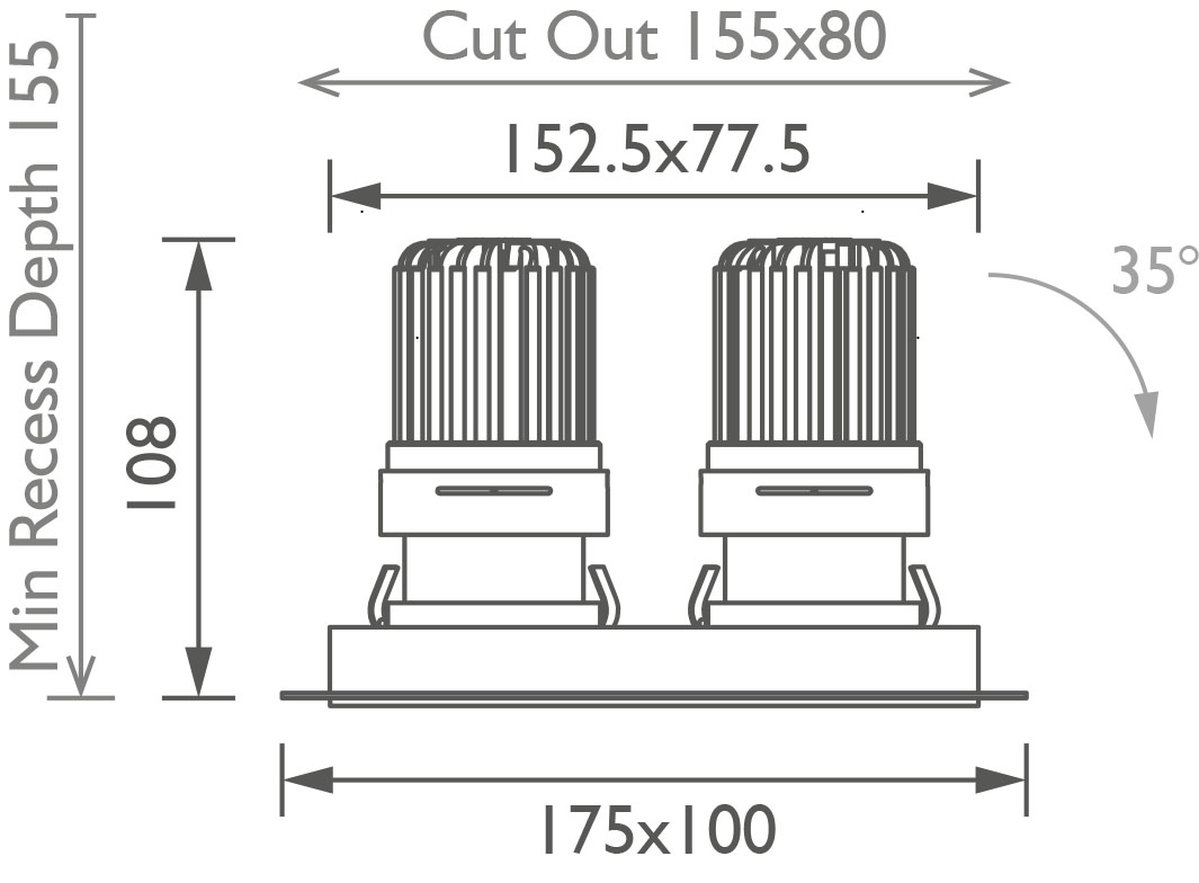

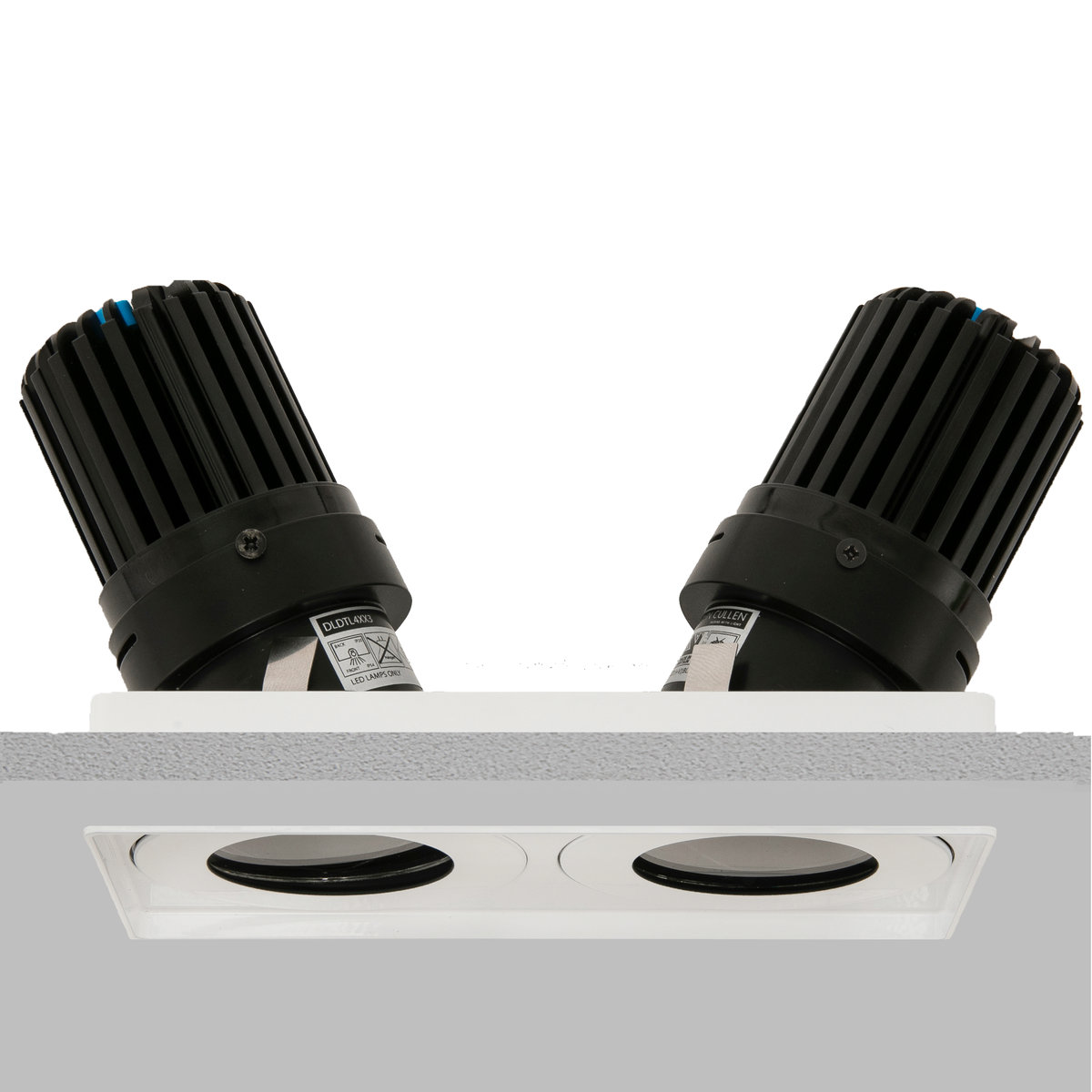

    Our Square Double Trimless 50+ IP rated LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees.

    Note: This luminaire cannot be used in conjunction with the John Cullen Lighting Fire Plate Accessory or Fire Hood. For applications requiring fire rating a fire box should be built into the ceiling void.

    Applications

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    2590 lm 896 lm 2x12W 2 x 22° 2700K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    2700 lm 1000 lm 23.8W 2 x 22° 3000K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1880 lm 1286 lm 2x11.4W 2 x 13° 2700K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    2080 lm 1285 lm 22.8W 2 x 13° 3000K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    2590 lm 1385 lm 2x12W 2 x 38° 2700K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1180 lm 1032 lm 23.8W 2 x 38° 3000K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes

    Accessories
