Square Double 50+ Downlight

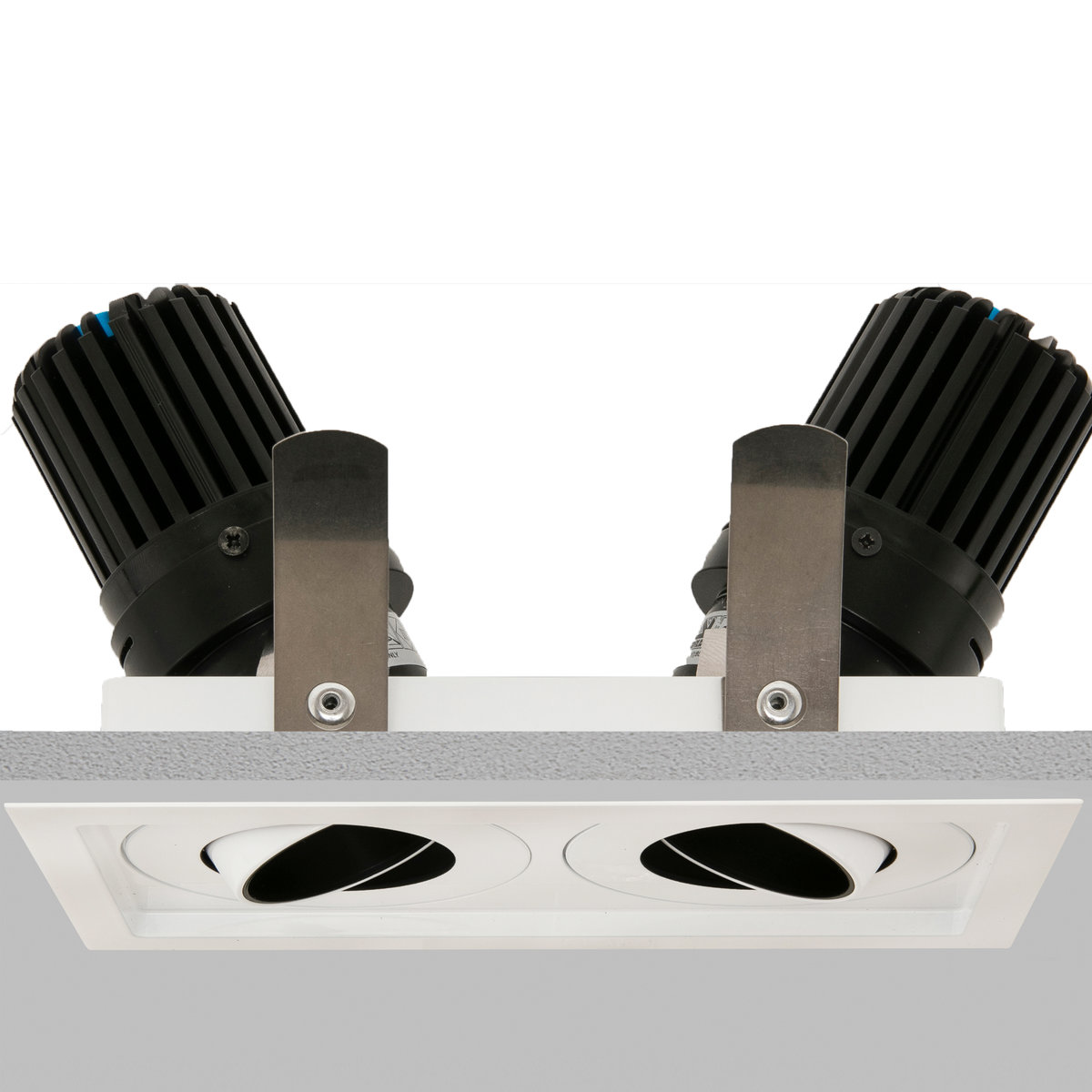

    Our Square Double 50+ LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees. It comes in trim and trimless versions.

    Note: This luminaire cannot be used in conjunction with the John Cullen Lighting Fire Plate Accessory. For applications requiring fire rating a fire box should be built into the ceiling void or a John Cullen Lighting specified fire hood should be used.

    Applications

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    2590 lm 1261 lm 24W 22° 2700K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    2700 lm 1385 lm 23.8W 22° 3000K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    1880 lm 896 lm 22.8W 13° 2700K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    2080 lm 1000 lm 22.8W 13° 3000K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    2590 lm 1286 lm 24W 38° 2700K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    2700 lm 1285 lm 23.8W 38° 3000K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
