Square Double 50 Trimless IP Downlight

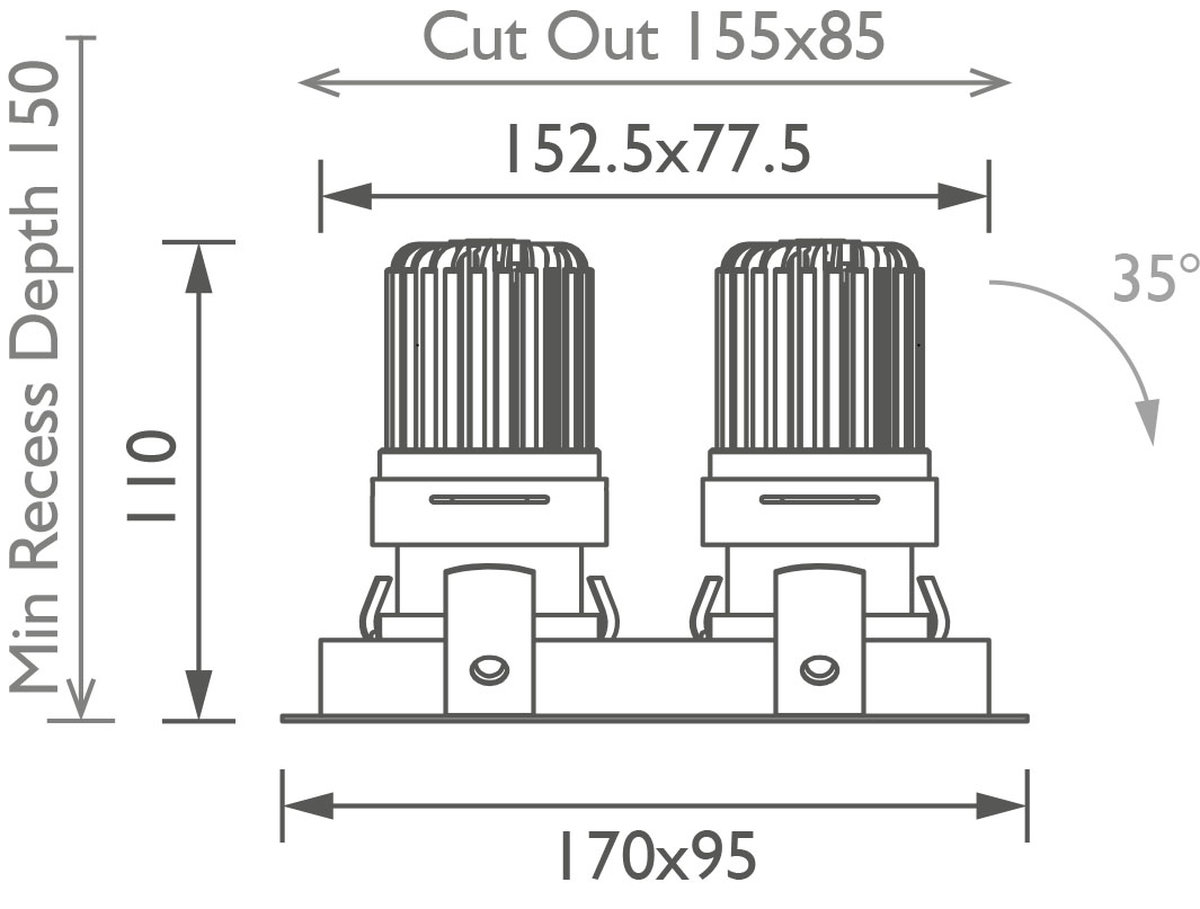

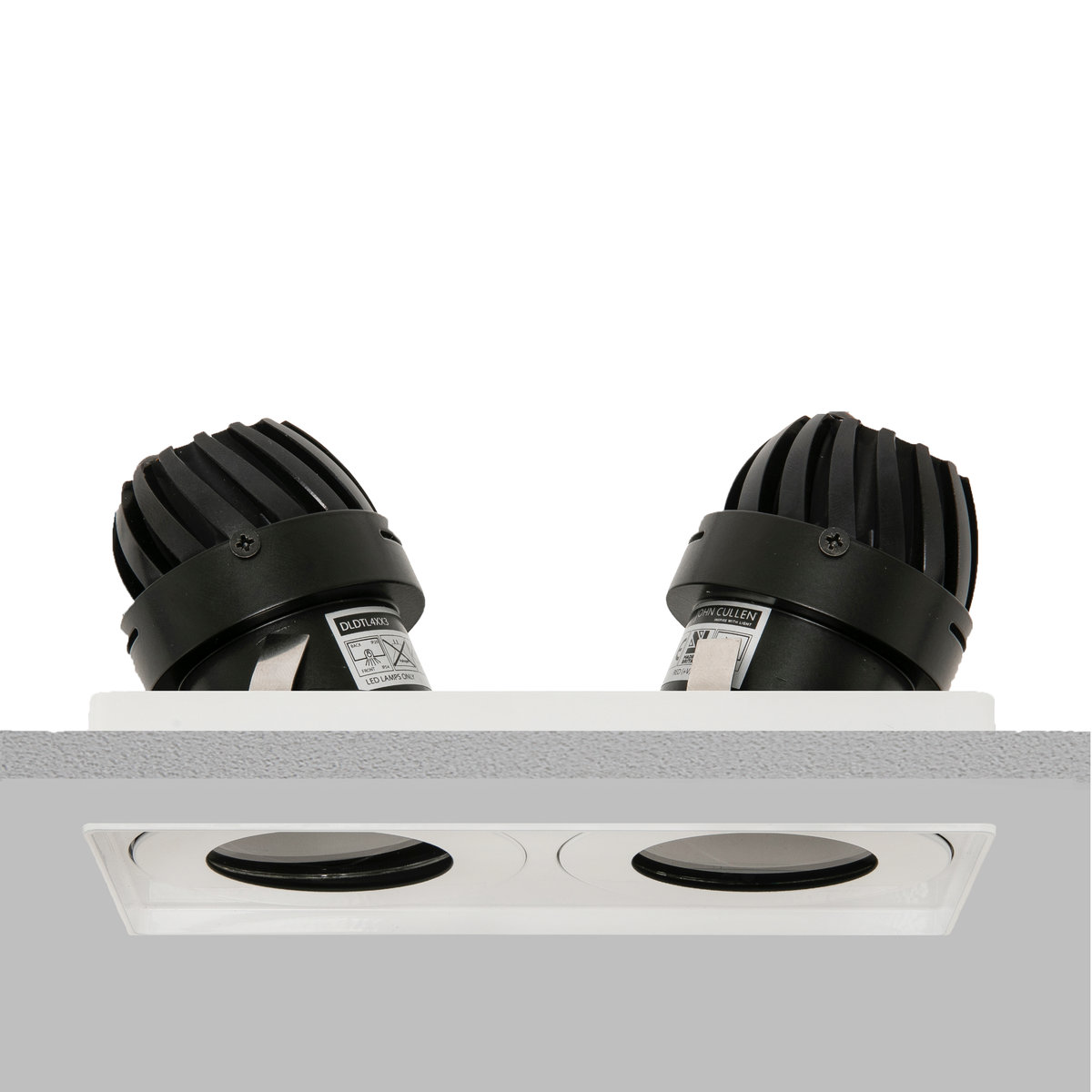

    Our Square Double Trimless 50 IP rated LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees.

    Note: This luminaire cannot be used in conjunction with the John Cullen Lighting Fire Plate Accessory or Fire Hood. For applications requiring fire rating a fire box should be built into the ceiling void.

    Applications

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    1180 lm 864 lm 2x8.4W 2 x 26° 2700K >93 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1248 lm 888 lm 2x8.4W 2 x 10° 2700K >93 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1170 lm 942 lm 2x8.4W 2 x 36° 2700K >93 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1180 lm 864 lm 2x8.4W 2 x 26° 3000K >93 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1248 lm 888 lm 2x8.4W 2 x 10° 3000K >93 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1170 lm 1261 lm 2x8.4W 2 x 36° 3000K >93 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes

    Accessories
