Square 50+ Trim IP Downlight

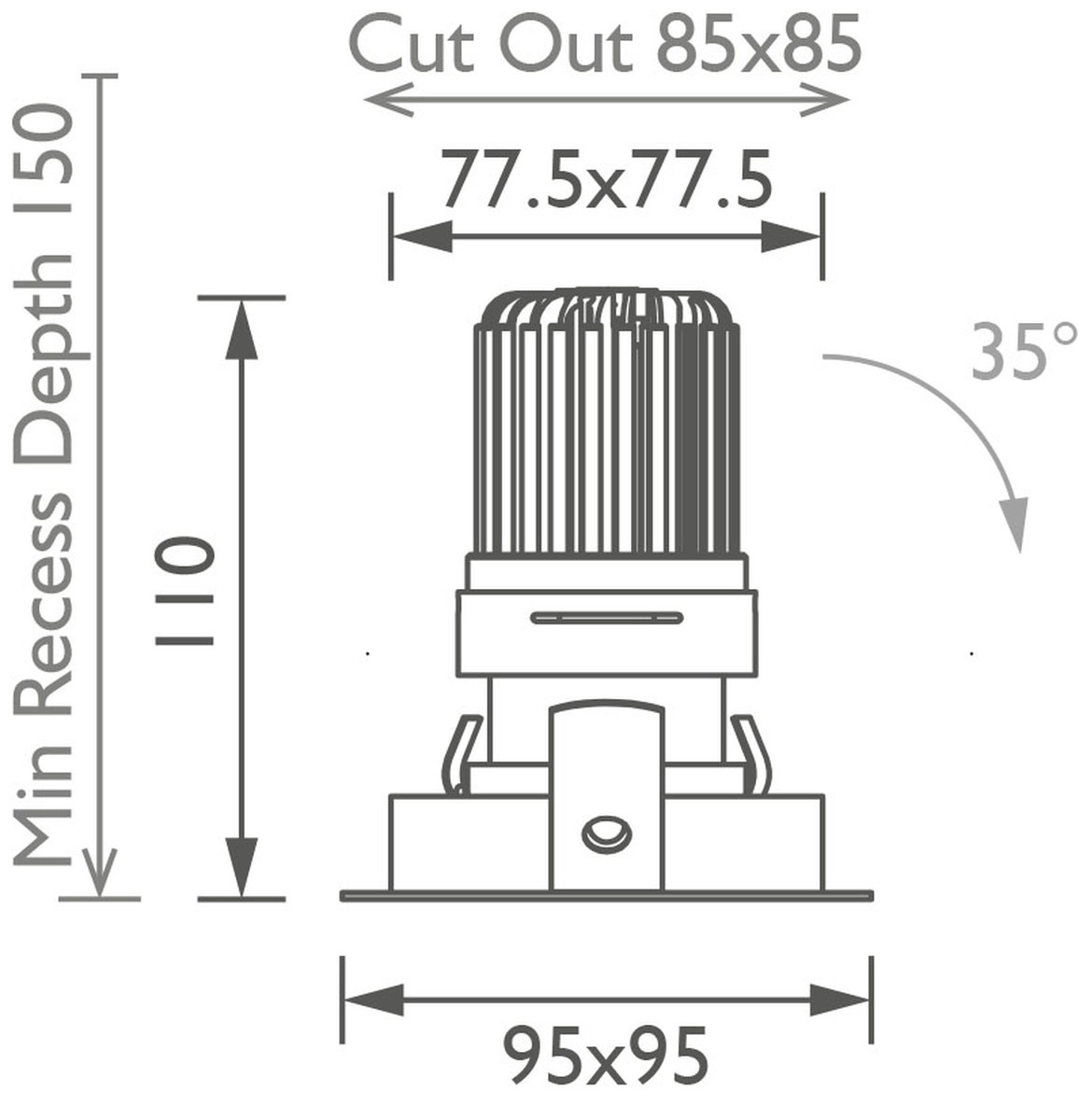

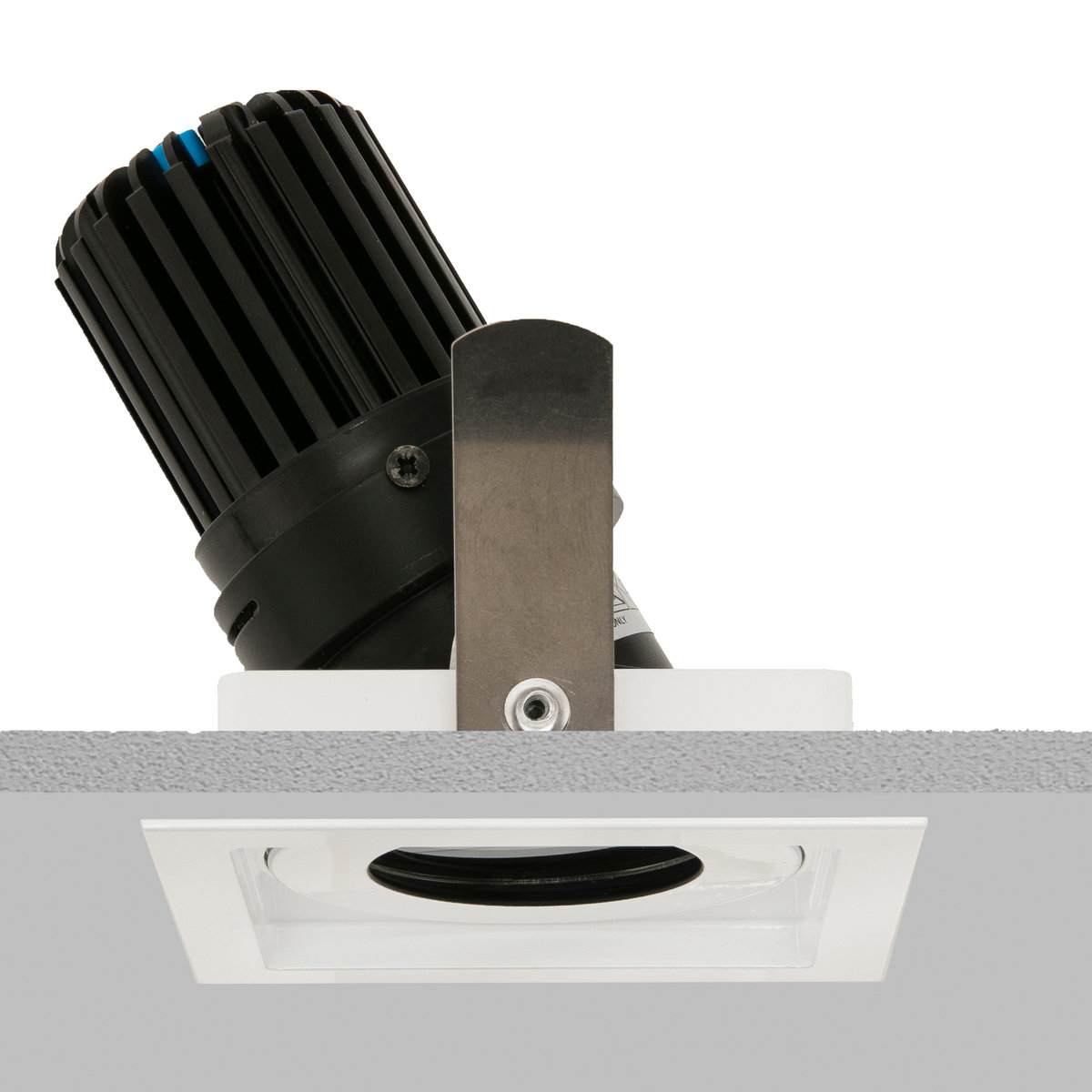

    Our Square Trim 50+ IP rated LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees.

    Note: This luminaire cannot be used in conjunction with the John Cullen Lighting Fire Plate Accessory. For applications requiring fire rating a fire box should be built into the ceiling void or a John Cullen Lighting specified fire hood should be used.

    Applications

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    1295 lm 592 lm 12W 22° 2700K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1350 lm 651 lm 11.9W 22° 3000K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    940 lm 476 lm 11.4W 13° 2700K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1040 lm 528lm 11.4W 13° 3000K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1295 lm 588 lm 12W 38° 2700K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes
    1350 lm 587 lm 11.9W 38° 3000K >95 Ra IP65 (Front)/IP20 (Rear) Accessory DALI/Phase cut/1-10V Yes

    Accessories
