Square 50+ Trim Downlight

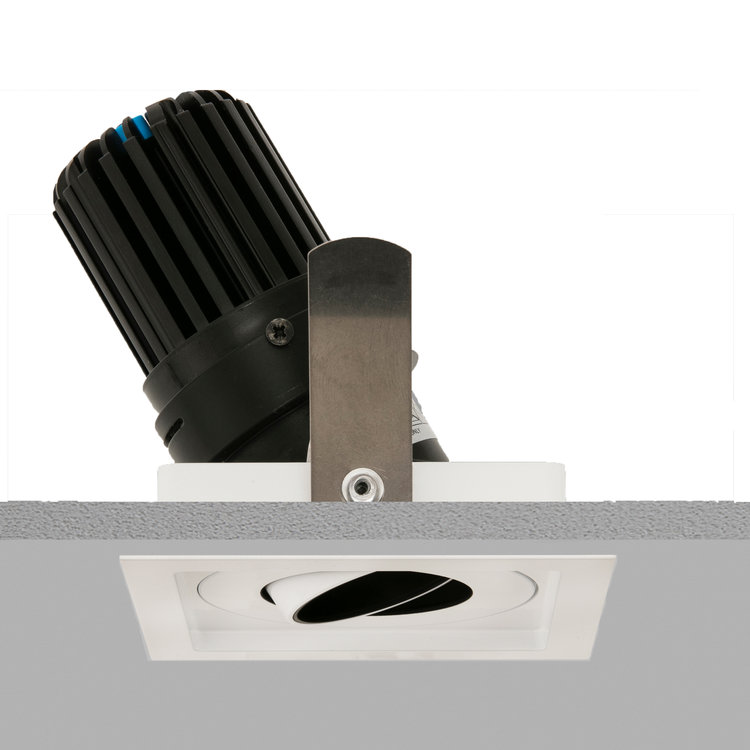

    Our Square 50+ LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees.

    Note: This luminaire cannot be used in conjunction with the John Cullen Lighting Fire Plate Accessory. For applications requiring fire rating a fire box should be built into the ceiling void or a John Cullen Lighting specified fire hood should be used.

    Applications

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    1295 lm 631 lm 12W 22° 2700K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    1350 lm 695 lm 11.9W 22° 3000K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    940 lm 448 lm 11.4W 13° 2700K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    1040 lm 500 lm 11.4W 13° 3000K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    1295 lm 643 lm 12W 38° 2700K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    1350 lm 645 lm 11.9W 38° 3000K >95 Ra IP20 Accessory DALI/Phase cut/1-10V Yes

    Accessories
