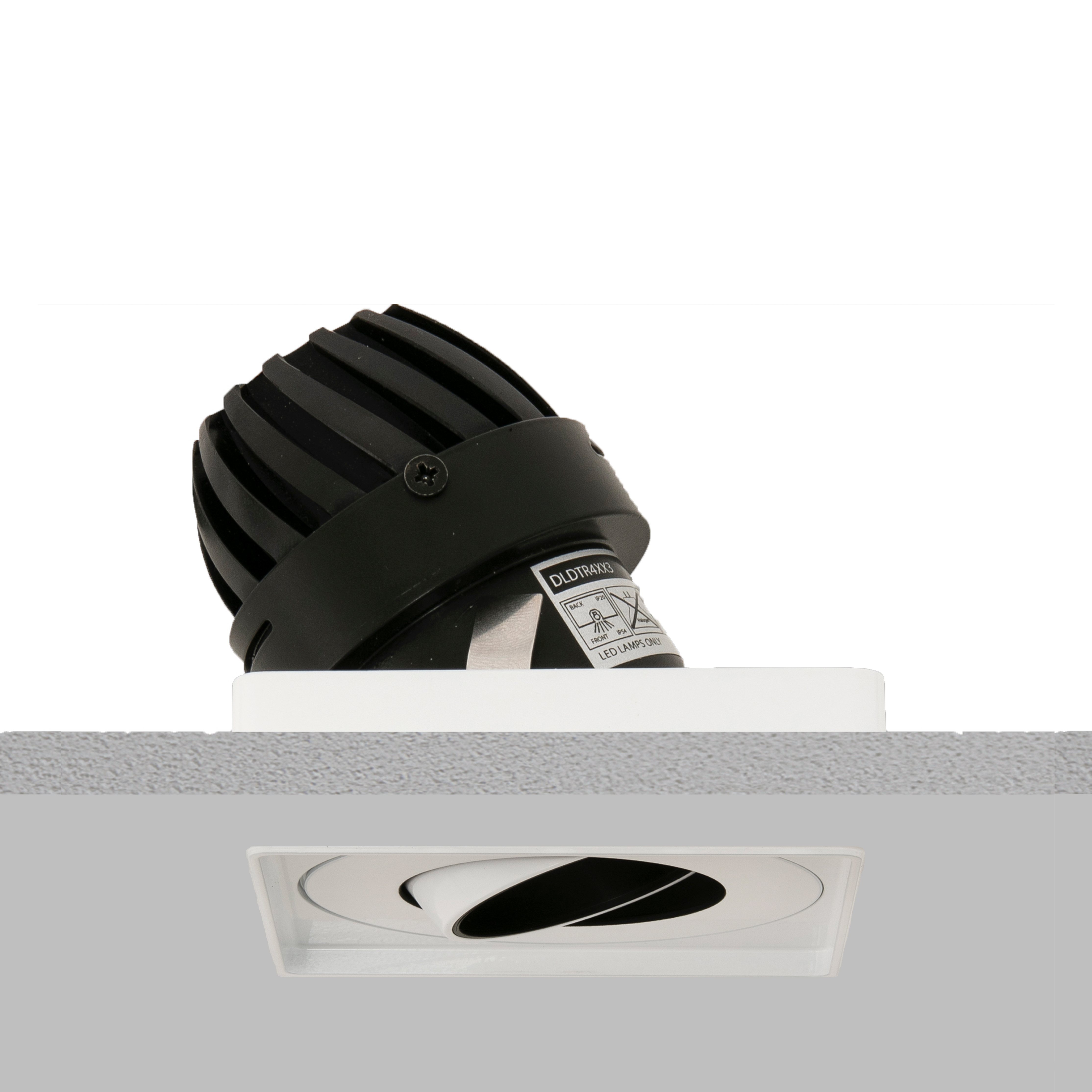

Square 50 Trimless Downlight

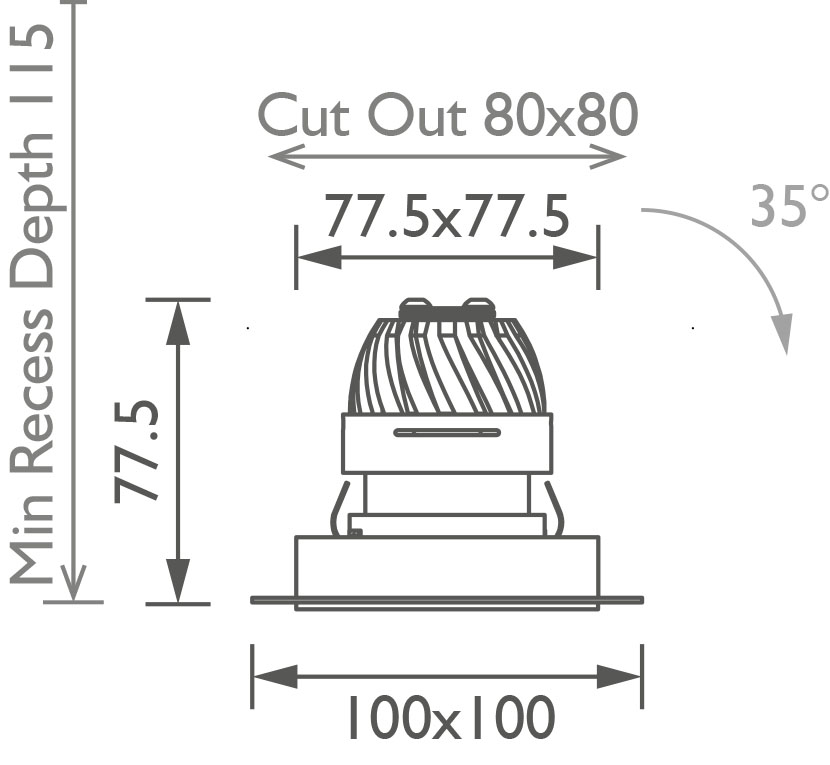

    Our Square Trimless 50 LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The downlight is suitable for plasterboard ceilings and can tilt up to 35 degrees and rotate a full 360 degrees.

    Note: This luminaire cannot be used in conjunction with the John Cullen Lighting Fire Plate Accessory. For applications requiring fire rating a fire box should be built into the ceiling void or a John Cullen Lighting specified fire hood should be used.

    Applications

    Technical Specification

    Source Luminaire Power Beam CCT CRI IP   Fire Rated Dimmable Filters
    590 lm 452 lm 8.4W 26° 2700K >93 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    624 lm 516 lm 8.4W 10° 2700K >93 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    585 lm 462 lm 8.4W 36° 2700K >93 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    590 lm 516 lm 8W 26° 3000K >93 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    624 lm 452 lm 8.4W 10° 3000K >93 Ra IP20 Accessory DALI/Phase cut/1-10V Yes
    585 lm 462 lm 8W 36° 3000K >93 Ra IP20 Accessory DALI/Phase cut/1-10V Yes

    Accessories
