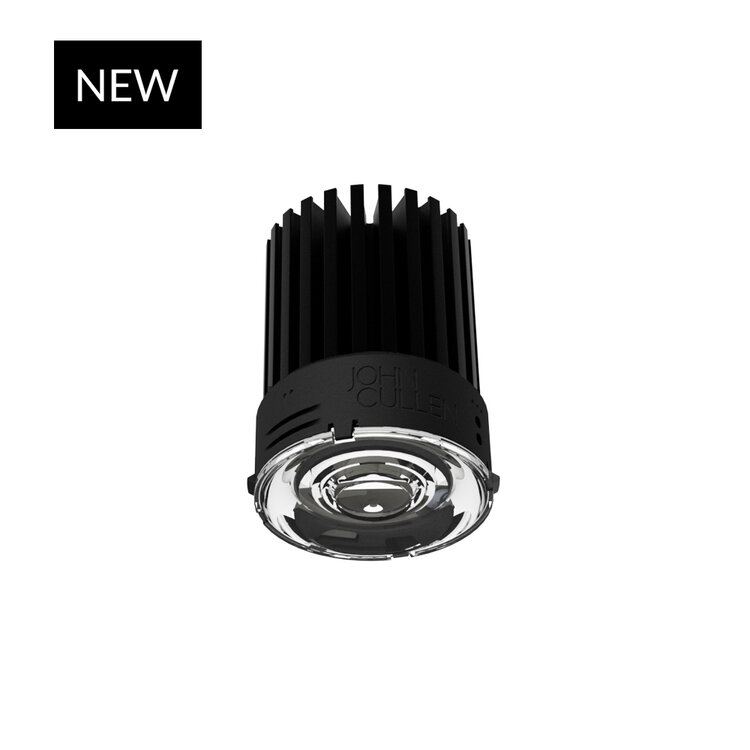

Pure 50 Engine
Our Pure 50 Engine sets the new standard of excellence for LED engines. Designed in Britain, the Pure 50 offers pure performance with 98CRI, and R9 values over 98. This product comes with super spot, spot, narrow, medium, wide, and super-wide beam angles.
This 50 engine has been designed to work with all of our 50 architectural LED downlights, including both current and past fittings. The engine features a patented twist and lock LED engine mount and plug-in LED driver for interchangeable components on-site with no hand tools required.
Applications
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 507 lm | 411 lm | 7W | 9° | 2700K | 98 Ra | IP20 | DALI/Phase cut/1-10V | No | |
| 1344 lm | 1231 lm | 12W | 57° | 2700K | 98 Ra | IP20 | DALI/Phase cut/1-10V | No | |
| 1344 lm | 1163 lm | 12W | 26° | 2700K | 98 Ra | IP20 | DALI/Phase cut/1-10V | No | |
| 1344 lm | 1182 lm | 12W | 19° | 2700K | 98 Ra | IP20 | DALI/Phase cut/1-10V | No |
