Polespring 50 Downlight

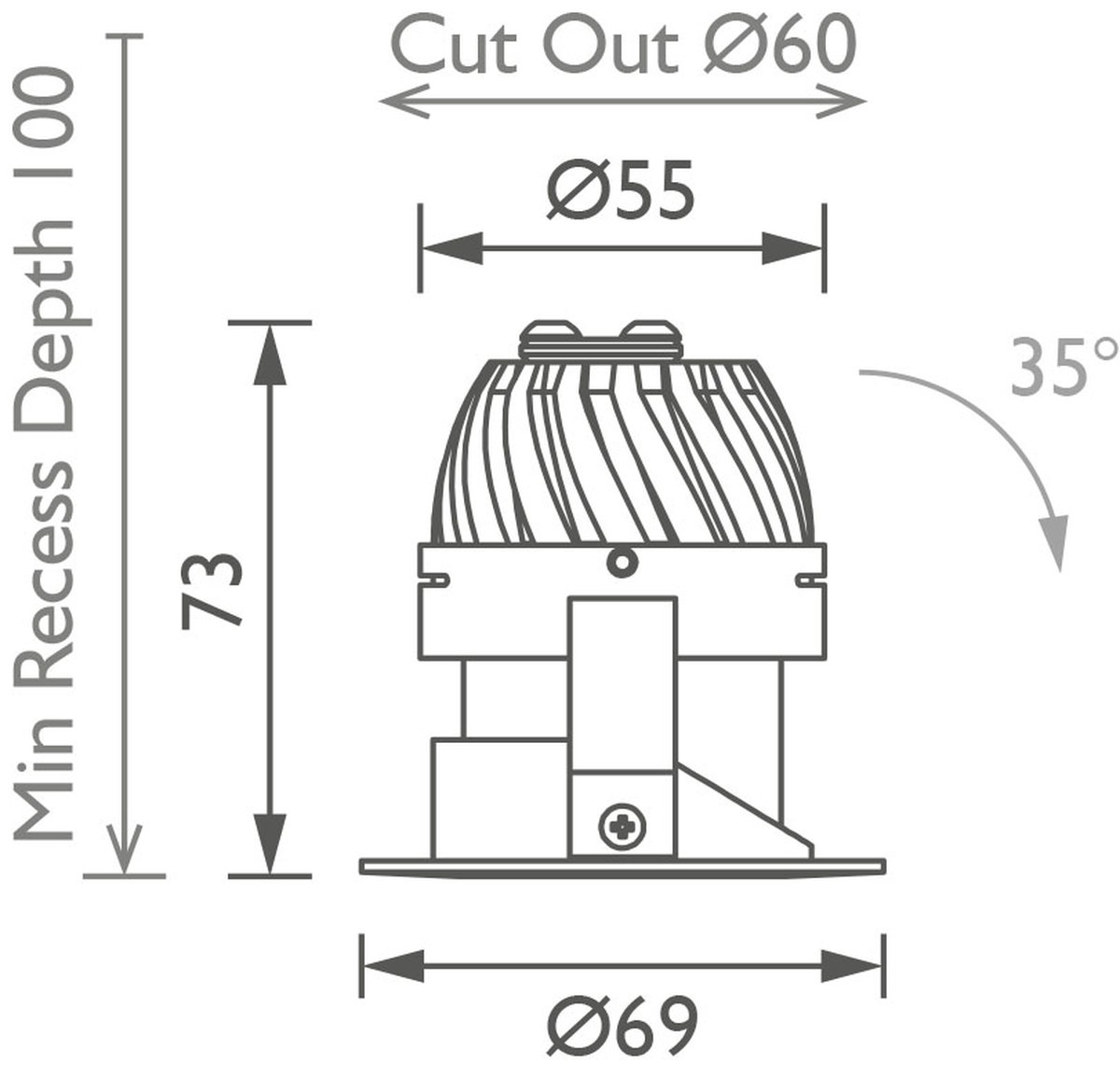

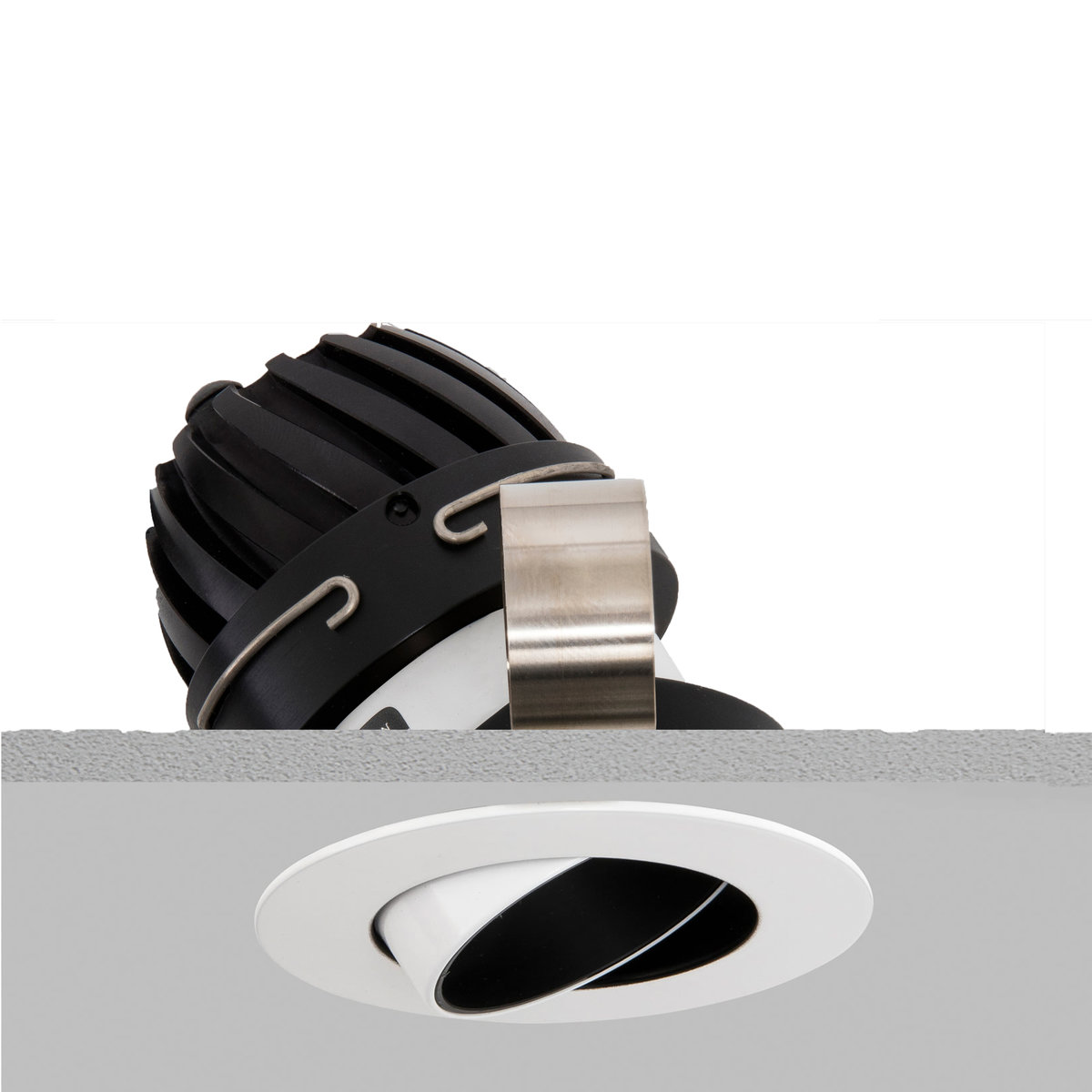

The Polespring 50 is a low glare directional architectural downlight with a tilt mechanism of 35 degrees, suitable for both interior and marine applications. A 25mm extra deep black baffle and extra slim bezel allows for a low glare and minimal architectural lighting solutions. It comes in trim, plaster-in flush and plaster-in recessed versions.
The Polespring 50 features a patented twist and lock LED engine mount and plug in LED driver for interchangeable components on site with no hand tools required.
Applications
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 624 lm | 509 lm | 8.4W | 26° | 2700K | >93 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 590 lm | 448 lm | 8.4W | 10° | 2700K | >93 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 585 lm | 471 lm | 8.4W | 36° | 2700K | >93 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 730 lm | 509 lm | 8W | 26° | 3000K | >93 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 624 lm | 448 lm | 8.4W | 10° | 3000K | >93 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 730 lm | 471 lm | 8W | 36° | 3000K | >93 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
Downloads
- Polespring_50_Medium_2700.ldt (.ldt)
- Polespring_50_Medium_2700.ies (.ies)
- Polespring_50_and_50%2B_Installation_Guide.pdf (.pdf)
- Polespring_50_Narrow_2700.ldt (.ldt)
- Polespring_50_Narrow_2700.ies (.ies)
- Polespring_50_Wide_2700.ldt (.ldt)
- Polespring_50_Wide_2700.ies (.ies)
- Polespring_50_16_12_20.pdf (.pdf)
Accessories
-
Honeycomb Insert 50mm
ACHC50MM1
-
Lathe & Plaster Ceiling Ring Accessory
ACLPCRING
-
Plaster-in Flush Downlight Accessory
ACPIFLDL1
-
Plaster-in Recessed Downlight Accessory
ACPIREDL1
-
Sandblasted Glass Lens 50mm
ACSG50MM1
-
Softening Lens 50mm
ACSL50MM2
-
Spreader Lens 50mm
ACLL50MM1
-
Halogen Upgrade Downlight Accessory White
ACHUPS011
-
Fire Plate 50
ACFPPSXX1
