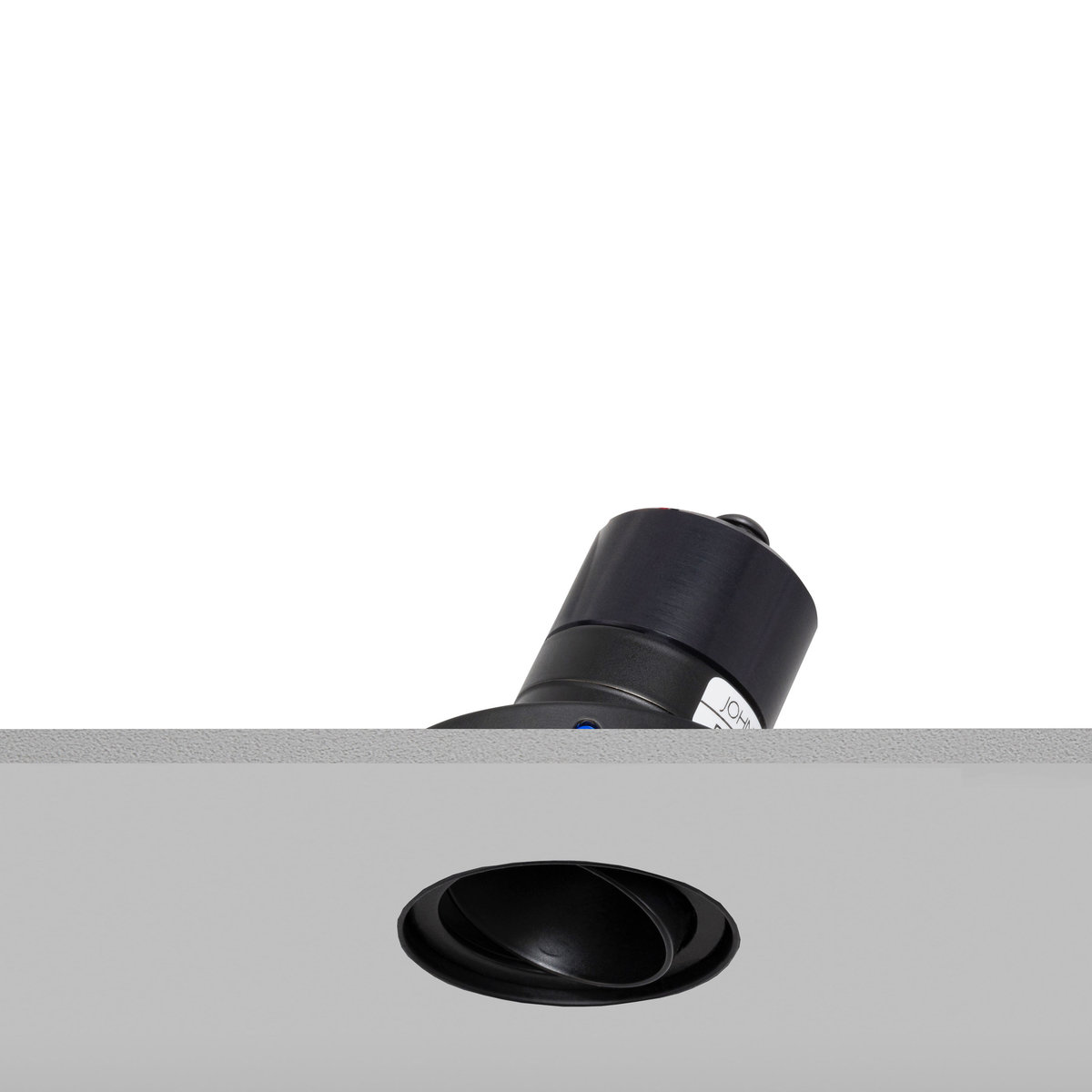

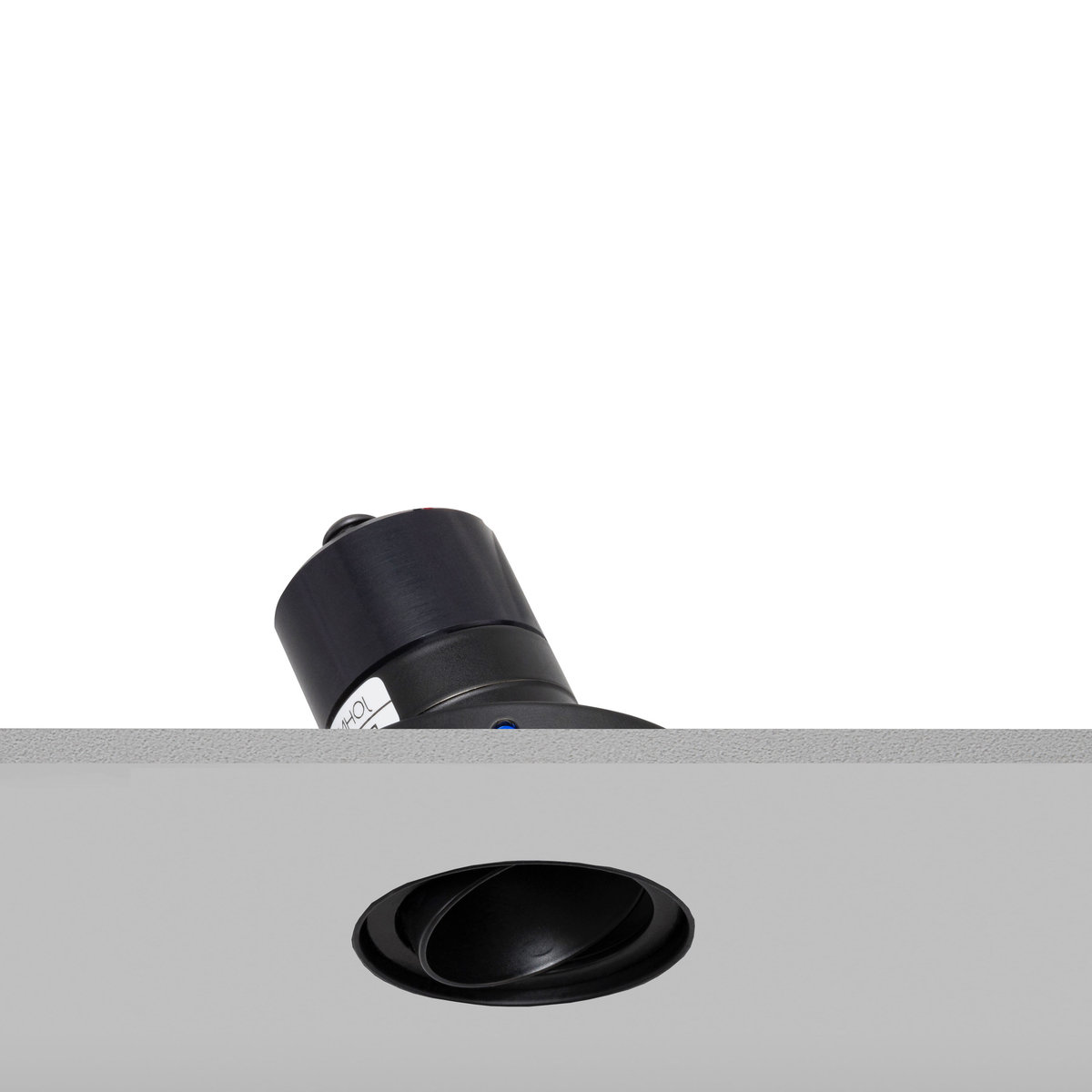

Polespring 30 Trimless Tilt Downlight
The Polespring Trimless Tilt 30 is a low glare directional architectural downlight with a tilt mechanism of 30 degrees, suitable for both interior and marine applications. An extra deep black baffle and extra slim steel bezel allows for a low glare and minimal architectural lighting solutions.
The Polespring Trimless Tilt 30 features a twist and lock LED engine mount and plug in LED driver for interchangeable components on site with no hand tools required.
Available August 2019.
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 350 lm | 310 lm | 3.9W | 26° | 2700K | >90 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 350 lm | 310 lm | 3.9W | 26° | 3000K | >90 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 360 lm | 315 lm | 3.9W | 10° | 2700K | >90 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 360 lm | 315 lm | 3.9W | 10° | 3000K | >90 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 350 lm | 305 lm | 3.9W | 46° | 2700K | >90 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
| 350 lm | 305 lm | 3.9W | 46° | 3000K | >90 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | Yes |
