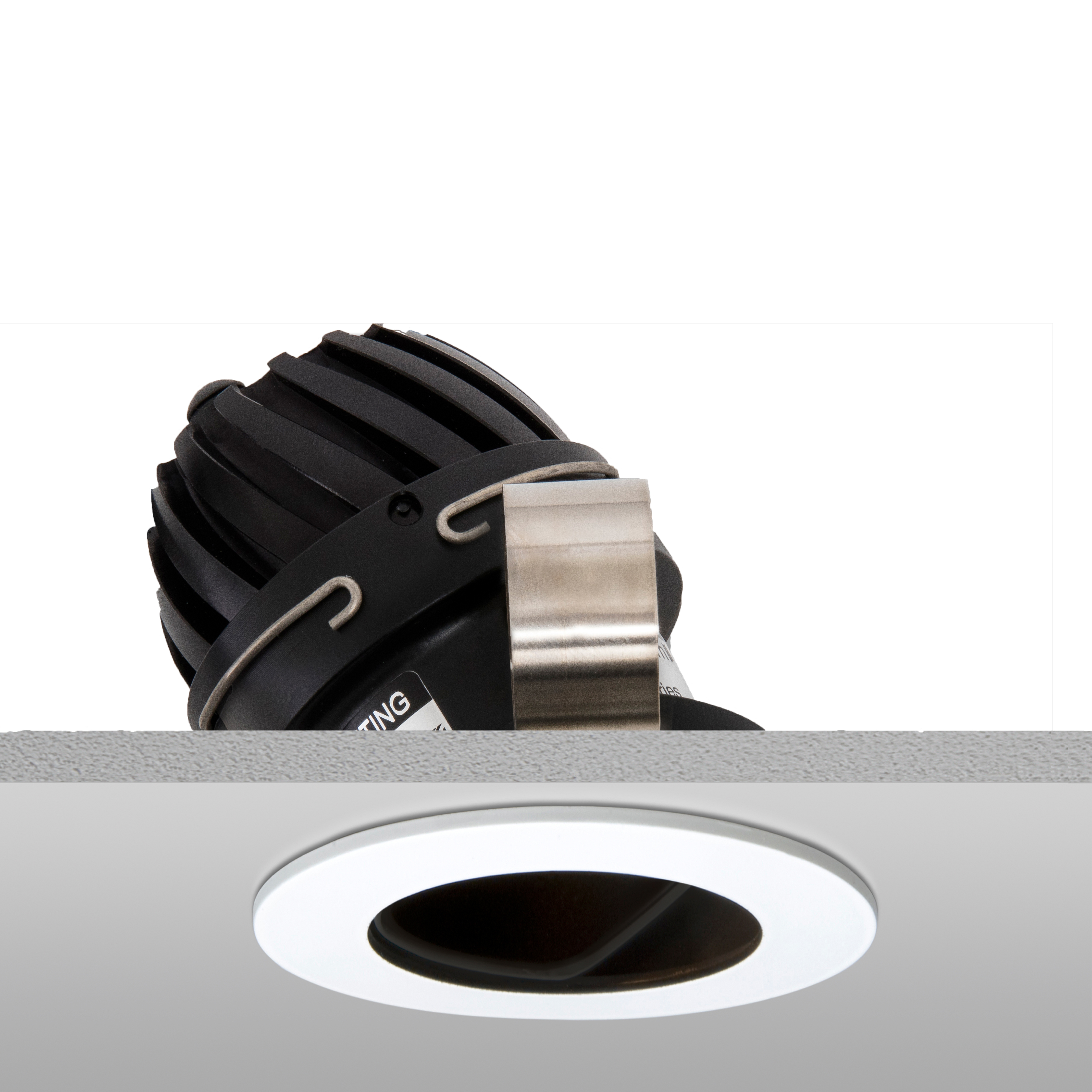

Flush 50
The Flush 50 directional LED downlight uses an extra slim-line bezel with a deep 25mm dual black baffle system to help reduce glare. The light fitting also features a unique concealed ceiling ring for easy lamp changing. This directional LED downlight is suitable for plasterboard ceilings and marine lighting.
The Flush 50 now comes with four different LED engines: Pure 50, AmbiDim 50, True 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a patented twist and lock LED engine mount and plug in LED driver for interchangeable components on site with no hand tools required. A narrow 22° and wide 33° beam is available on special request.
Applications
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 1231 lm | 597 lm | 12W | 45° | 2700K | 98 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | No |
| 1163 lm | 711 lm | 12W | 26° | 2700K | 98 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | No |
| 925 lm | 710 lm | 12.8W | 16° | 2700K | 98 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | No |
| 411 lm | 315 lm | 7W | 13° | 2700K | 98 Ra | IP20 | Accessory | DALI/Phase cut/1-10V | No |
Downloads
- Polespring_Pure_50_Medium_2700K_%282020%29.ldt (.ldt)
- Polespring_Pure_50_Medium_2700K_%282020%29.ies (.ies)
- IP_Rated_and_Flush_Downlight_50_and_50%2B_Installation_Guide.pdf (.pdf)
- Plaster_In_Accessory_50_Installation_Guide.pdf (.pdf)
- Polespring_Pure_50_Spot_2700K_%282020%29.ldt (.ldt)
- Polespring_Pure_50_Spot_2700K_%282020%29.ies (.ies)
- Polespring_Pure_50_Narrow_2700K_%282020%29.ldt (.ldt)
- Polespring_Pure_50_Narrow_2700K_%282020%29.ies (.ies)
- Flush_50_24_04_23.pdf (.pdf)
Accessories
-
Fire Plate 50
ACFPPSXX1
-
Halogen Upgrade Downlight Accessory White
ACHUPS011
-
Honeycomb Insert 50mm
ACHC50MM1
-
Lathe & Plaster Ceiling Ring Accessory
ACLPCRING
-
Plaster-in Flush Downlight Accessory
ACPIFLDL1
-
Sandblasted Glass Lens 50mm
ACSG50MM1
-
Softening Lens 50mm
ACSL50MM2
-
Spreader Lens 50mm
ACLL50MM1
