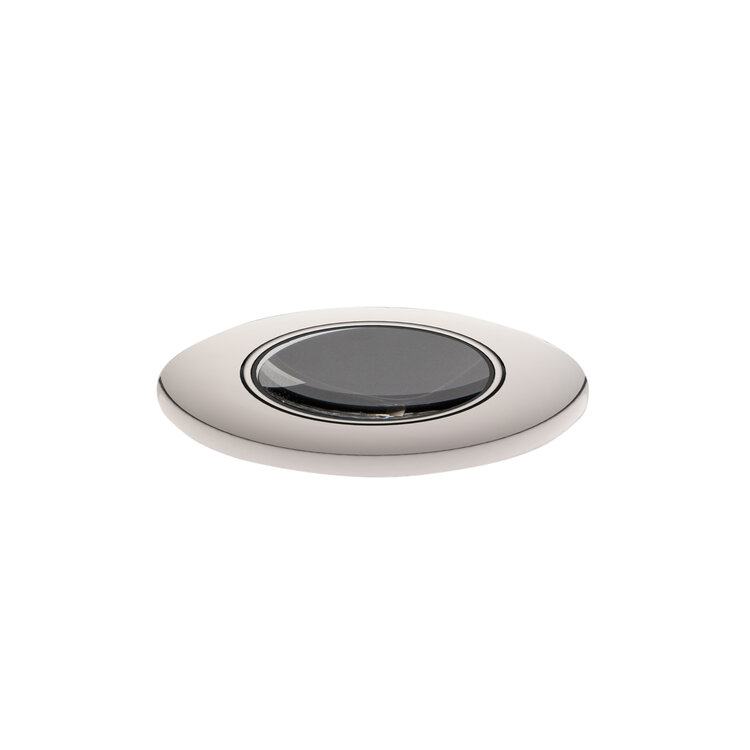

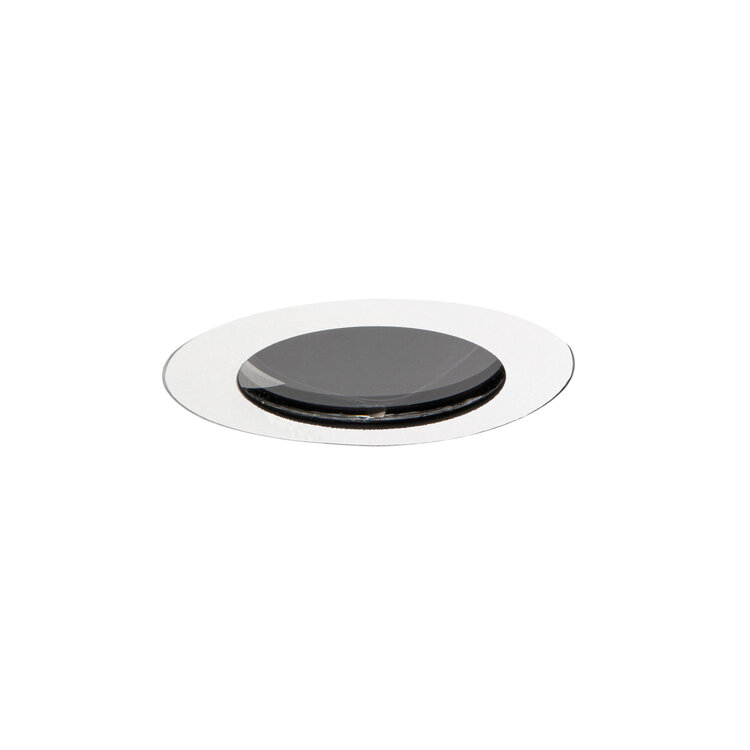

Aquabeam Pure 50 IP Rated Downlight
Our Aquabeam 50 IP rated LED downlight uses an extra slim-line bezel and has a deep 25mm black baffle to reduce glare. This fitting is waterproof which makes it suitable for wet areas such as bathrooms, shower rooms etc. It can tilt up to 35 degrees.
The Aqueabeam 50 now comes with four different LED engines: Pure 50, AmbiDim 50, True 50 and Tune 50. See the LED engines for full details. Technical details below for the Pure 50. The engine features a patented twist and lock LED engine mount and plug in LED driver for interchangeable components on site with no hand tools required. A narrow 22° and wide 33° beam is available on special request.
Applications
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
-
Saved to your account!
Item removed
Technical Specification
| Source | Luminaire | Power | Beam | CCT | CRI | IP | Fire Rated | Dimmable | Filters |
|---|---|---|---|---|---|---|---|---|---|
| 1231 lm | 591 lm | 12W | 46° | 2700K | 98 Ra | IP65 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
| 1163 lm | 708 lm | 12W | 26° | 2700K | 98 Ra | IP65 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
| 925 lm | 701 lm | 12.8W | 16° | 2700K | 98 Ra | IP65 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
| 411 lm | 300 lm | 7W | 13° | 2700K | 98 Ra | IP65 (Front)/IP20 (Rear) | Yes | DALI/Phase cut/1-10V | Yes |
Downloads
- Waterspring_Pure_50_Medium_2700K_%282020%29.ldt (.ldt)
- Waterspring_Pure_50_Medium_2700K_%282020%29.ies (.ies)
- Pure__True__Ambidim_50_Installation_Guide.pdf (.pdf)
- Waterspring_Pure_50_Spot_2700K_%282020%29.ldt (.ldt)
- Waterspring_Pure_50_Spot_2700K_%282020%29.ies (.ies)
- Waterspring_Pure_50_Narrow_2700K_%282020%29.ldt (.ldt)
- Waterspring_Pure_50_Narrow_2700K_%282020%29.ies (.ies)
- Aquabeam_50_24_04_23.pdf (.pdf)
Accessories
-
Fire Plate 50
ACFPPSXX1
-
Halogen Upgrade Downlight Accessory White
ACHUPS011
-
Honeycomb Insert 50mm
ACHC50MM1
-
Lathe & Plaster Ceiling Ring Accessory
ACLPCRING
-
Plaster-in Flush Downlight Accessory
ACPIFLDL1
-
Sandblasted Glass Lens 50mm
ACSG50MM1
-
Softening Lens 50mm
ACSL50MM2
-

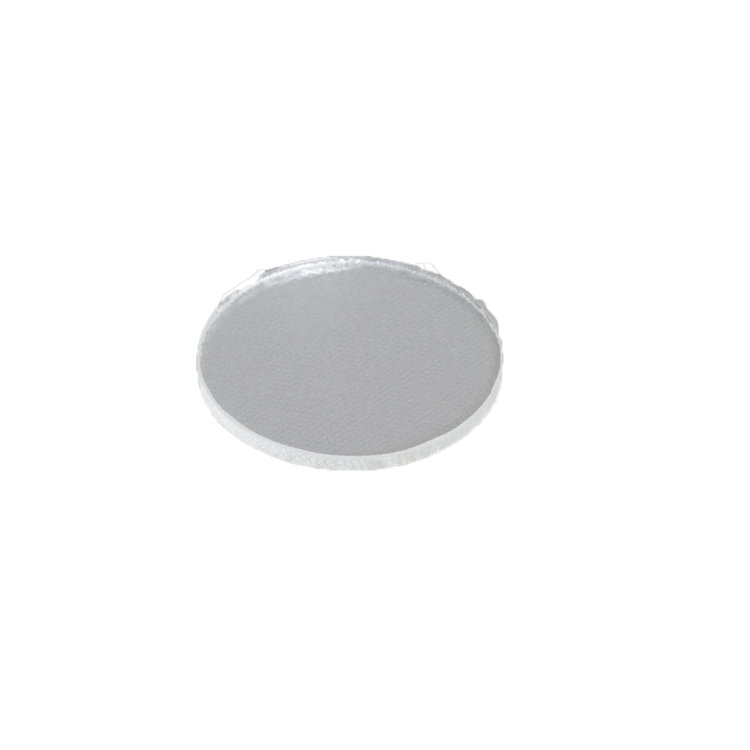

Spreader Lens 50mm
ACLL50MM1
-
Bellow Dust Cover
ACBEAQ021
