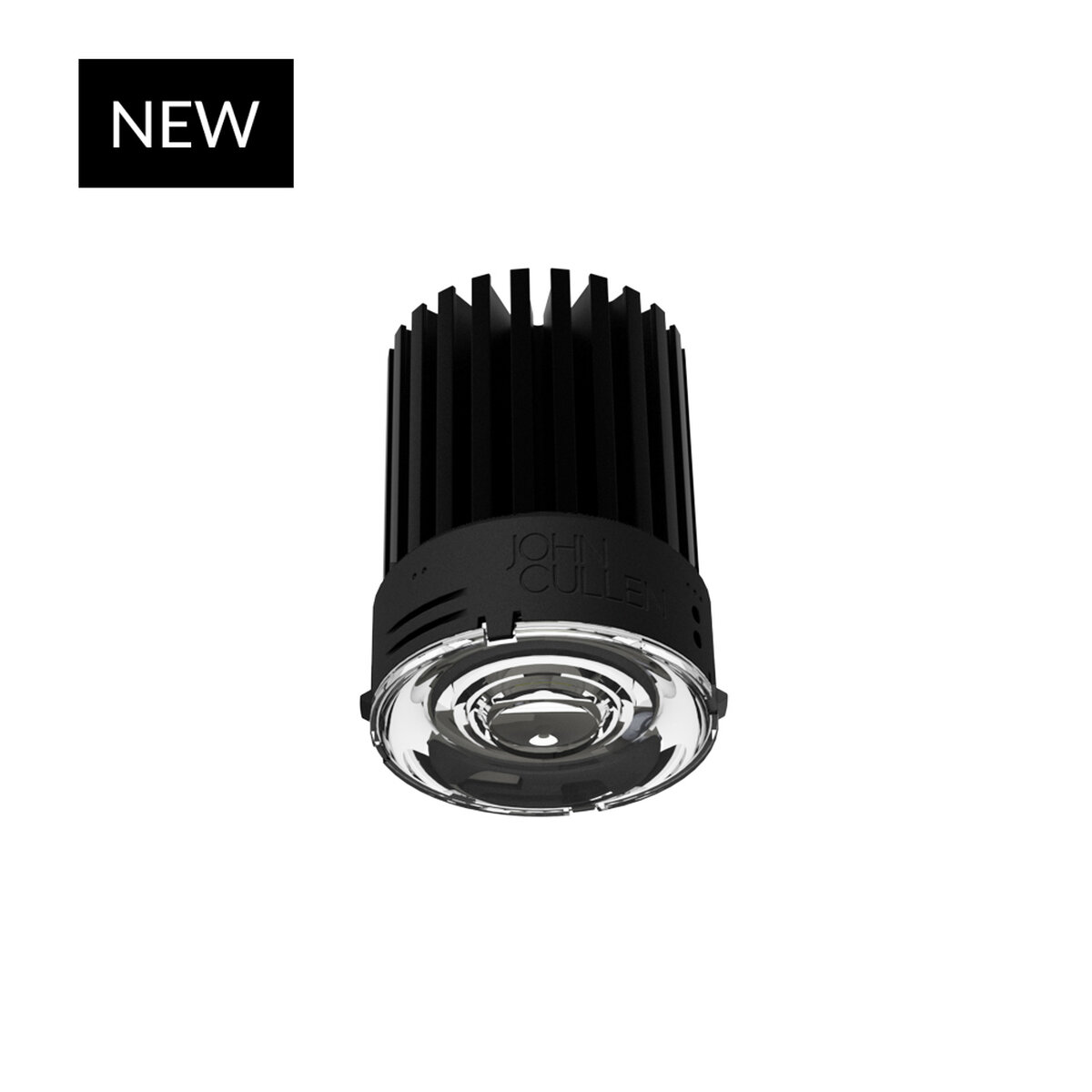

AmbiDim 50

Category
Engines
Description

Replicate the cosy feeling of halogen with our AmbiDim 50 Engine. Designed in Britain, the AmbiDim 50 offers a transition from a bright fresh 2700K to a warm ambient 1800K as it dims.

This 50 engine has been designed to work with all of our 50 downlights, including both current and past fittings.

Tested by Lighting Industry Association (LIA) Laboratory
Application
Intelligent Design
Elegant dim-to-warm solution.
Technical Specifications
Beam Beam Angle Source Engine Luminaire Power Supply CCT CRI IP Fire Rated Dimmable
Narrow 18° 1205 lm @ 2700K 1102 lm N/A 12W 350mA 2700K to 1800K >93 Ra IP20 DALI/Phase cut/1-10V
Medium 26° 1205 lm @ 2700K 1101 lm N/A 12W 350mA 2700K to 1800K >93 Ra IP20 DALI/Phase cut/1-10V
Wide 36° 1205 lm @ 2700K 1057 lm N/A 12W 350mA 2700K to 1800K >93 Ra IP20 DALI/Phase cut/1-10V
SuperWide 51° 1205 lm @ 2700K 1095 lm N/A 12W 350mA 2700K to 1800K >93 Ra IP20 DALI/Phase cut/1-10V
Drawings & Dimensions
Finishes
Accessories
Technical Download
Select your luminaire
ExpandCollapse Filters
Beam Angle
All
18°
26°
36°
51°
Beam
All
SuperWide
Narrow
Medium
Wide
LEAM50NA1827121
Downloads
+ Show- Hide Product Image
18°
Narrow
AmbiDim 50 Narrow 2700K – 1800K
LEAM50WI1827121
Downloads
+ Show- Hide Product Image
36°
Wide
AmbiDim 50 Wide 2700K – 1800K
LEAM50SW1827121
Downloads
+ Show- Hide Product Image
51°
SuperWide
AmbiDim 50 SuperWide 2700K – 1800K
LEAM50ME1827121
Downloads
+ Show- Hide Product Image
26°
Medium
AmbiDim 50 Medium 2700K – 1800K
